Brigante

This is my 5th attempt at a guide and a photo heavy one at that. This time, it's on how to wire in a reverse parking camera

If you've seen my guide to installing an aftermarket head unit, you'll know I recently fitted a touch screen head unit.

I'll now show you how to wire in a backup camera to make the most of having a touch screen.



There are various types of backup cameras available, just look on ebay and you'll see what I mean

[url="http://www.ebay.co.uk/sch/i.html?_trksid=p5197.m570.l1313&_nkw=backup+camera&_sacat=0&_from=R40"]http://www.ebay.co.u...cat=0&_from=R40[/url]

The main ones being something like these that you can mount anywhere

[url="http://www.ebay.co.uk/itm/UK-9-IR-LED-CAR-REAR-VIEW-REVERSING-BACKUP-COLOR-PARKING-CAMERA-120-WATERPROOF-/170856446239?pt=UK_In_Car_Technology&hash=item27c7d6791f"]http://www.ebay.co.u...=item27c7d6791f[/url]

[url="http://www.ebay.co.uk/itm/2-4G-GPS-Wireless-Car-Rear-View-Night-Vision-Reversing-Backup-Color-Camera-PAL-/270873506167?pt=UK_In_Car_Technology&hash=item3f1151b177"]http://www.ebay.co.u...=item3f1151b177[/url]

But will require drilling holes into your boot lid


Something like this that has the camera built into a number plate light unit

[url="http://www.ebay.co.uk/itm/New-3C-View-Backup-Camera-Ford-Focus-Sedan-N072-/251134262633?pt=Car_Audio_Video&hash=item3a78c4bd69"]http://www.ebay.co.u...=item3a78c4bd69[/url]

Or even things like this

[url="http://www.ebay.co.uk/itm/UK-EURO-NUMBER-PLATE-REVERSING-CAMERA-BACK-UP-REAR-VIEW-LICENSE-WATERPROOF-/310474547796?pt=UK_In_Car_Technology&hash=item4849b9a254"]http://www.ebay.co.u...=item4849b9a254[/url]

Which is a number plate holder with a built in camera. This will still require a hole drilling but it'll be hidden behind the plate holder. I reckon this will be the best camera as it positions the camera in the middle of the boot lid for optimum results.


Personally though, I went for the camera built into a number plate light, as it requires no drilling, and makes for a very neat install and looks as close as you'll get to an OEM number plate light and looks tidy.





Whatever camera you go for though, the installation will be pretty much the same once you've mounted it to the boot lid.

Whatever you get should also come in 3 parts

The camera



And 2 lots of wires, a 6metre video wire with a yellow plug either end, and a 1.5metre twin core red and black wire



The first step of the installation, is to remove the inner boot lid trim. This is a simple job of unscrewing these 2 screws

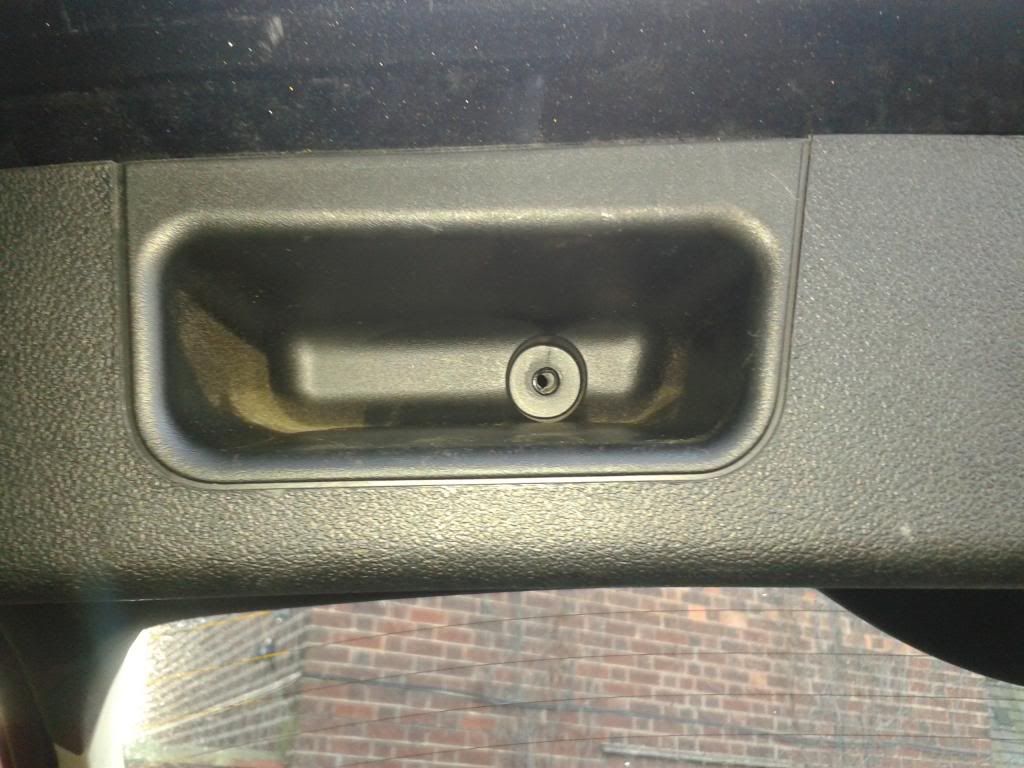

From each of the handles of the trim

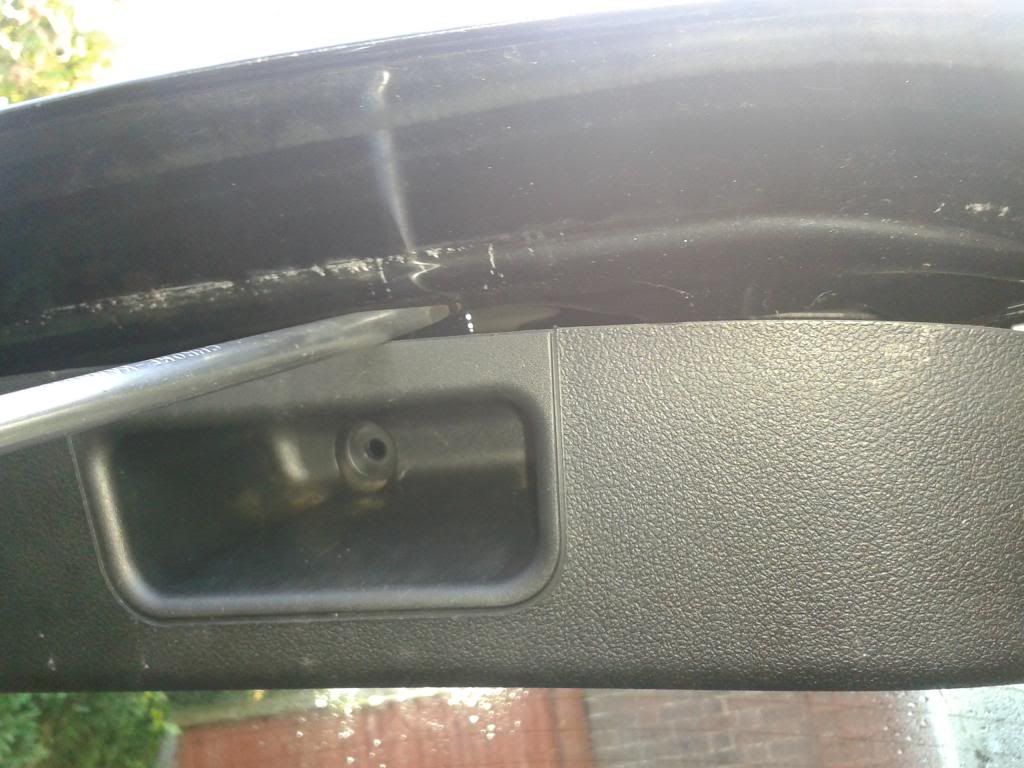

Next job is to simply unclip the trim, so get a flat blade screwdriver under the trim and pop it out.

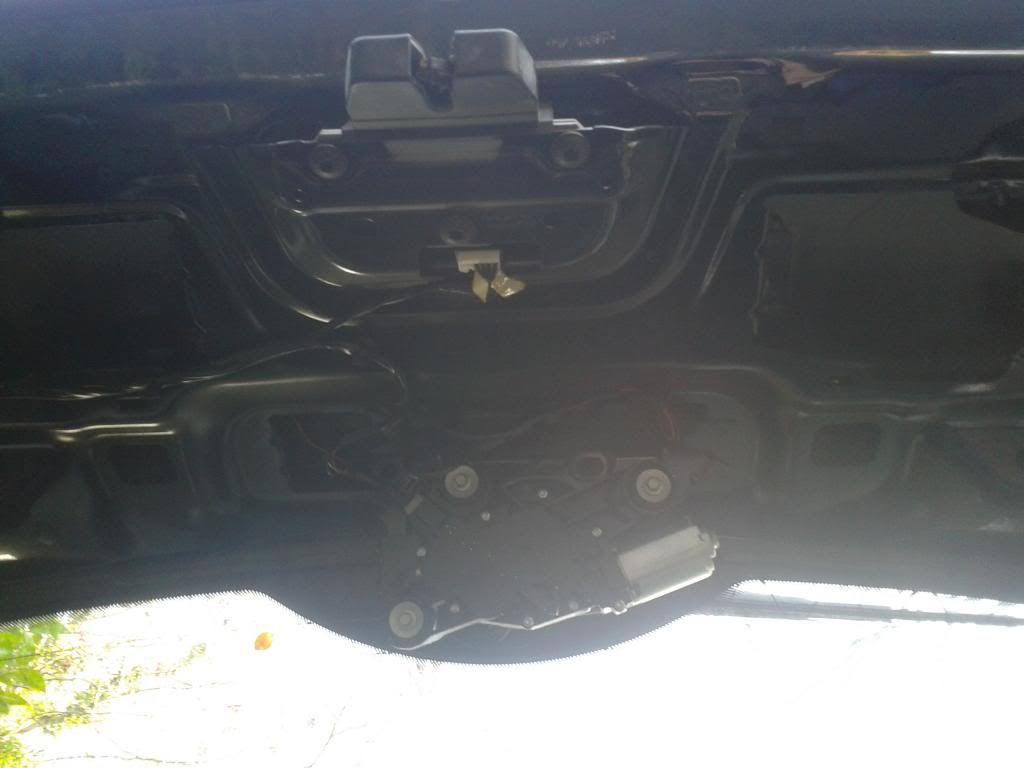

It will then be easy to simply pull the trim away from the boot lid

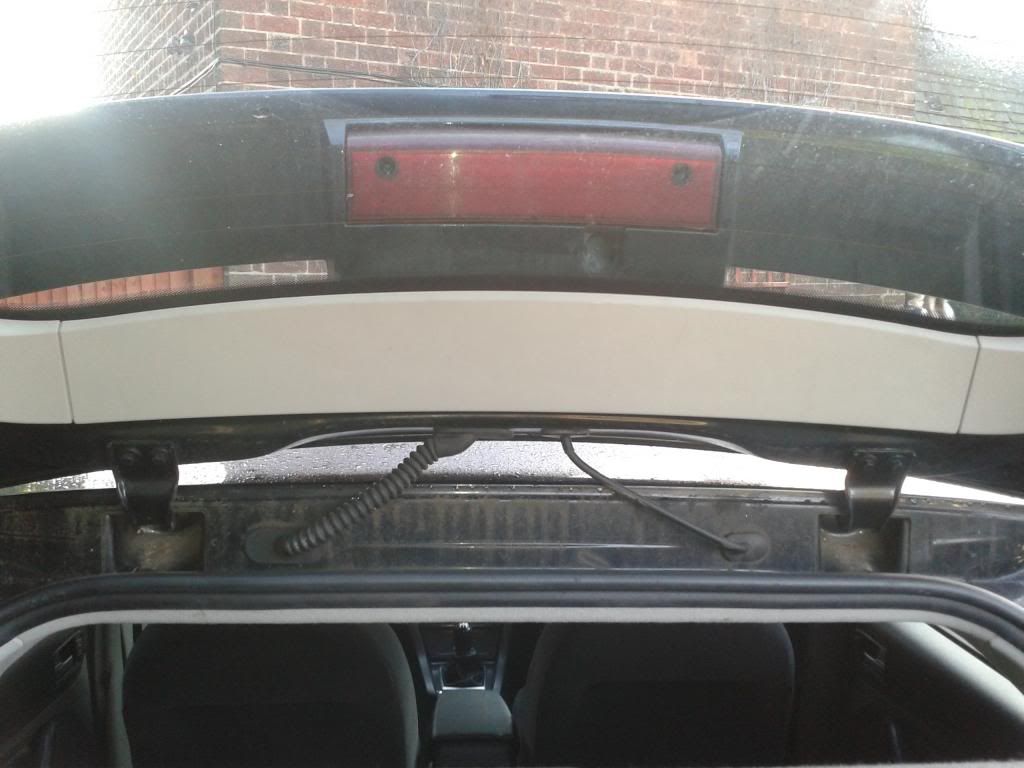

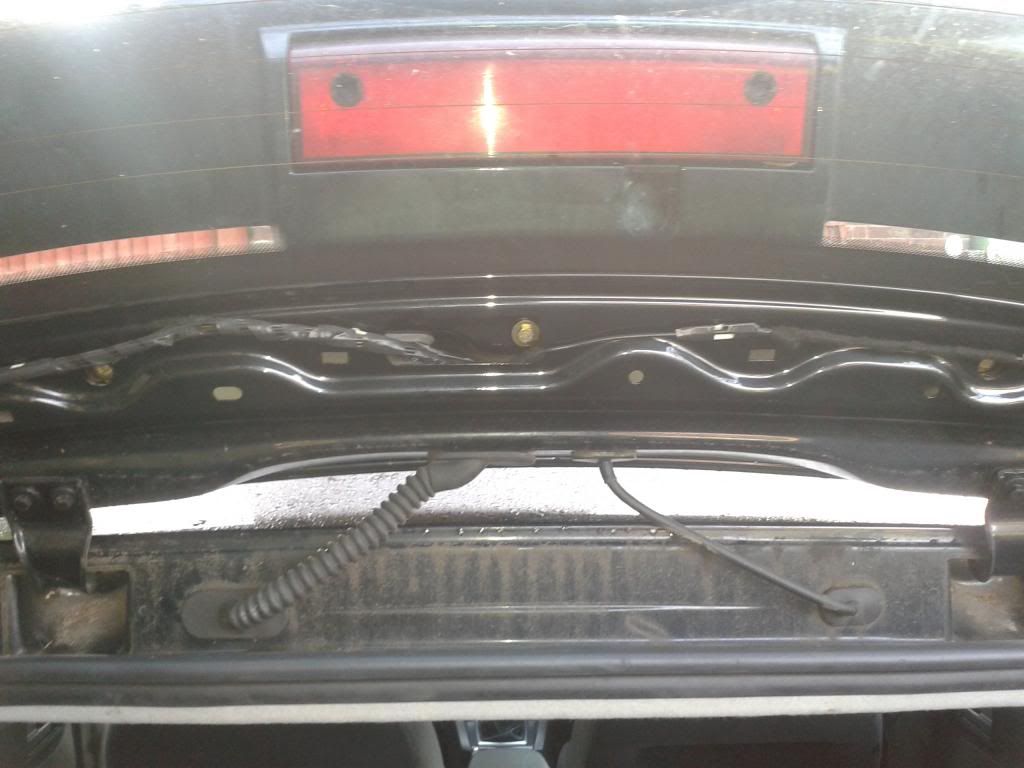

Next bit of trim you need to remove is this bit at the top of the boot lid



Just grab a hold of it and it'll pull off easily

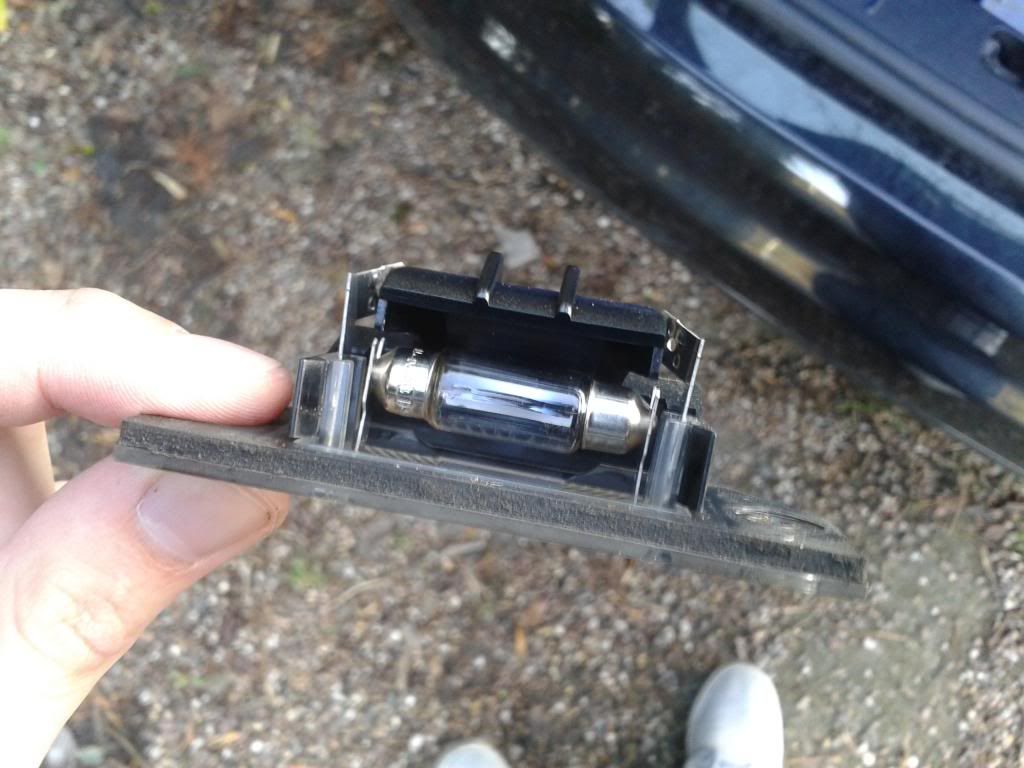

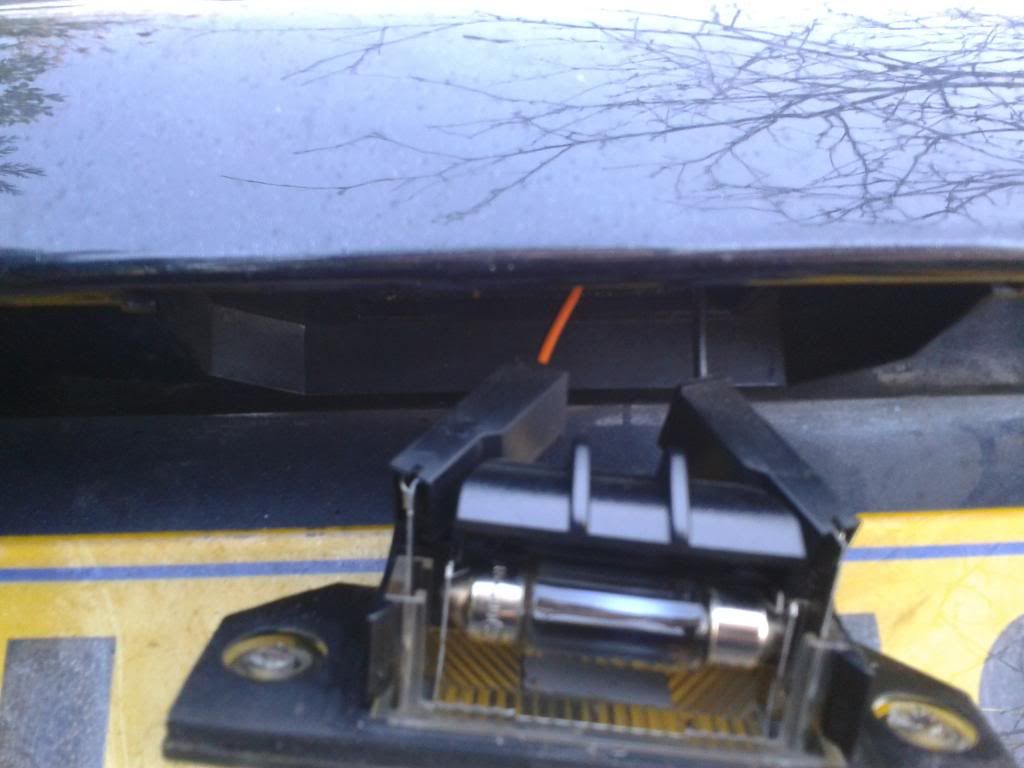

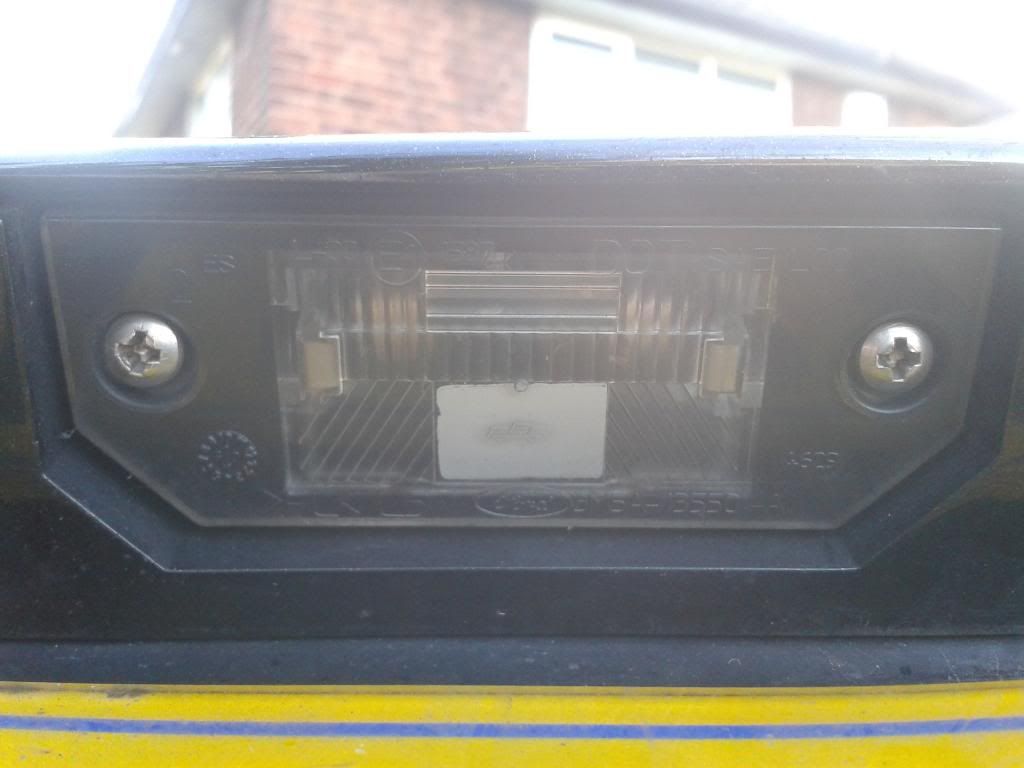

Next step for me, which only applies to this type of camera was to remove a stock number plate light

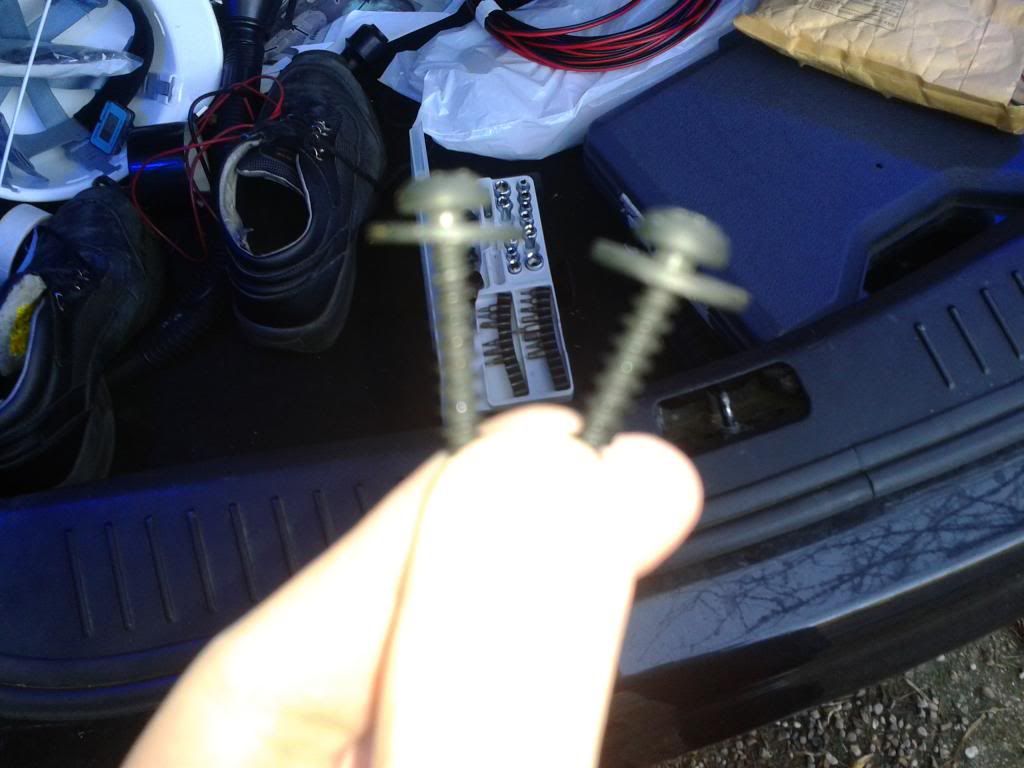

2 screws then pull it out

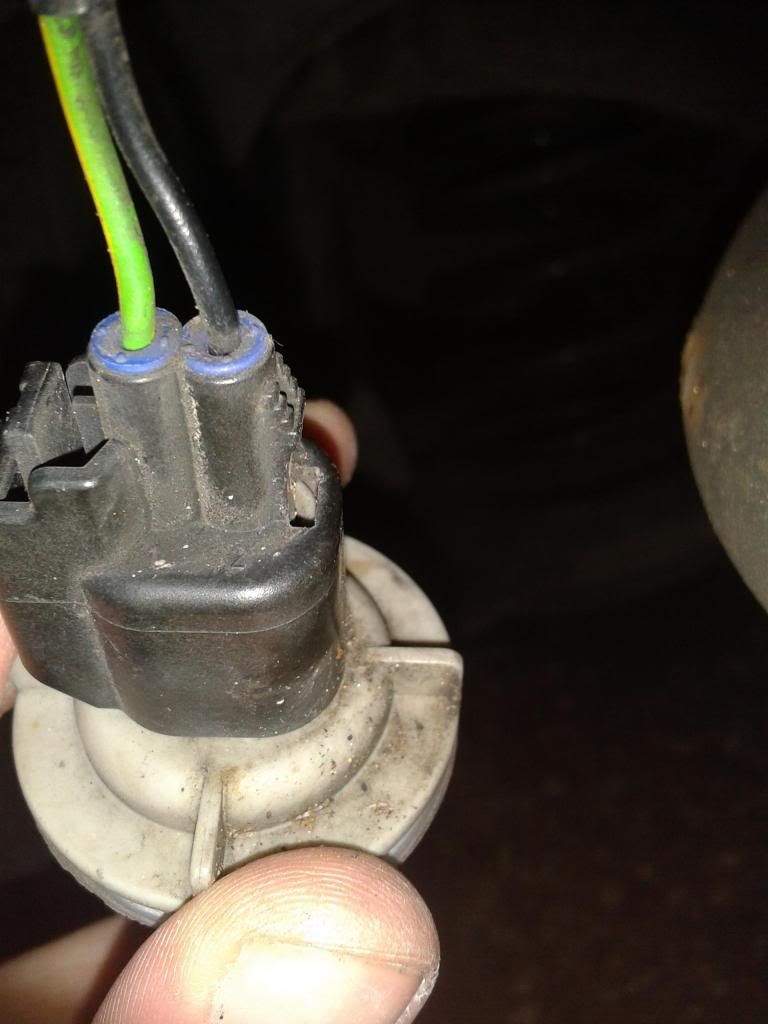

Then it simply pull the wires from the prong things



You can now just put this aside as a spare should you ever need to revert back to the stock light, or sell it on if you want to.

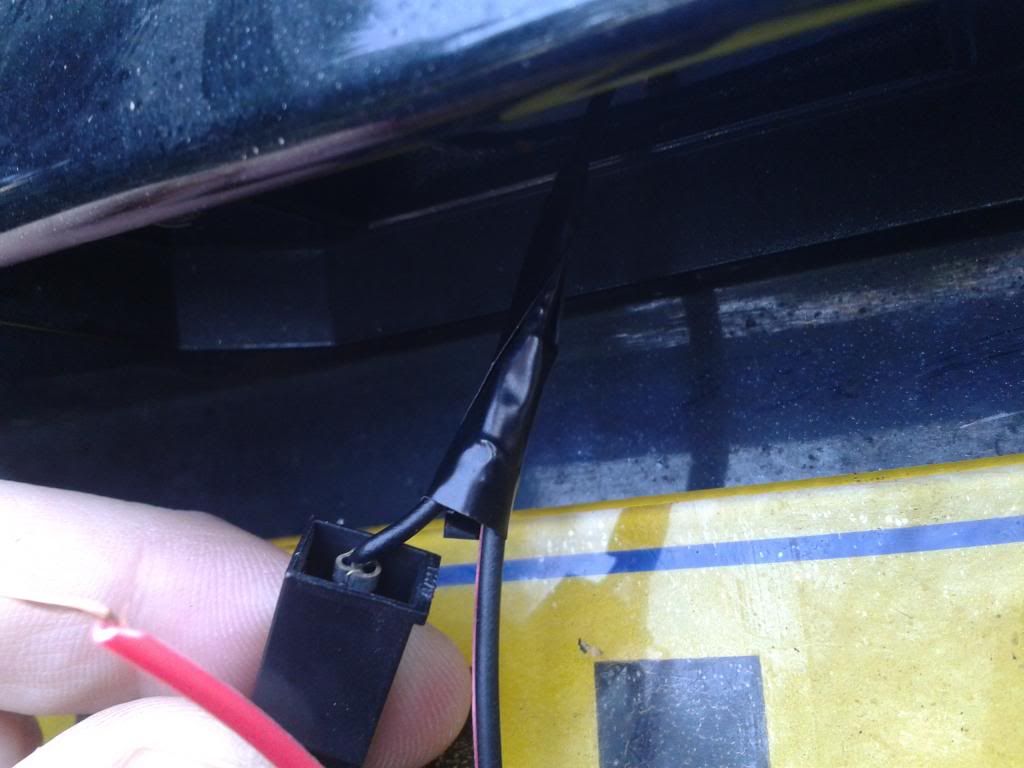

Next job is to wire the built in light of the camera



Into the old number lights live and earth feeds



Most people use splice blocks for this, but I personally think as long as you well insulate it, you can just splice the wires straight together.

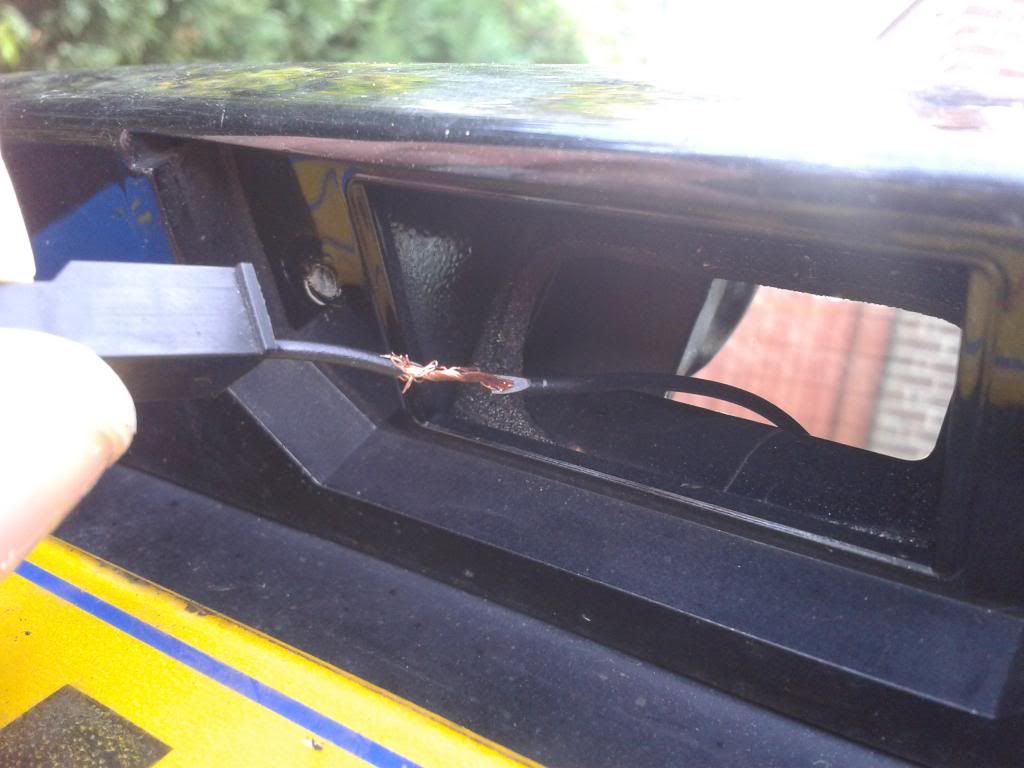

So first I got my stanley and peeled back some of the plastic coating behind the plug of the earth wire to expose some of the copper wire inside

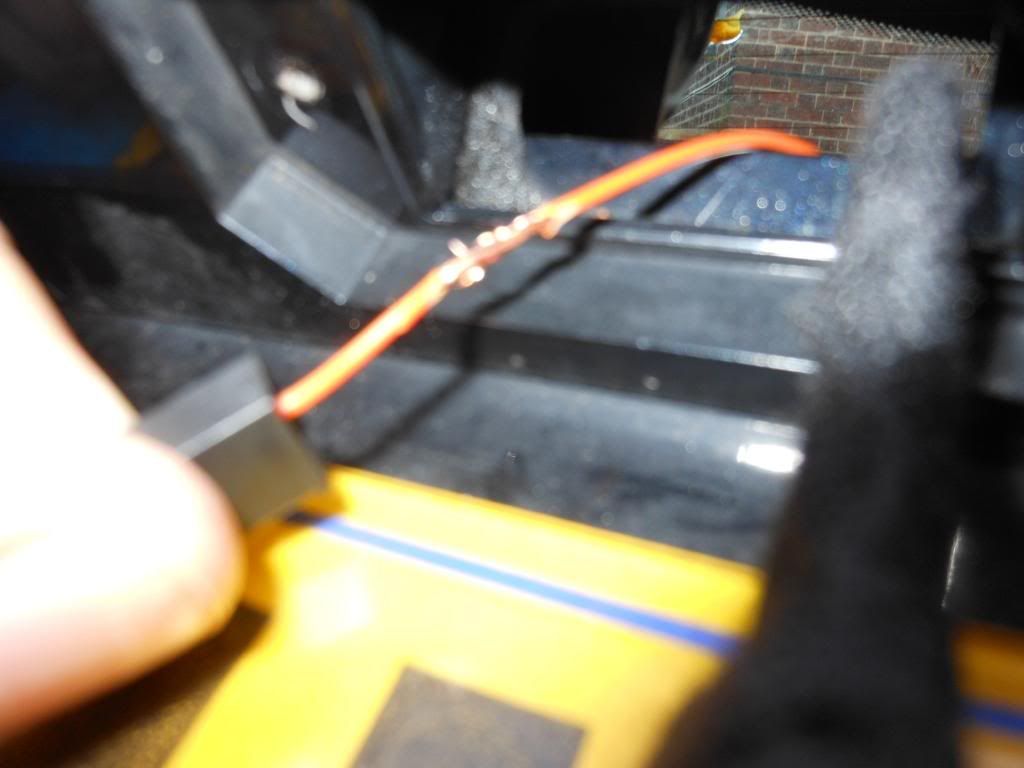

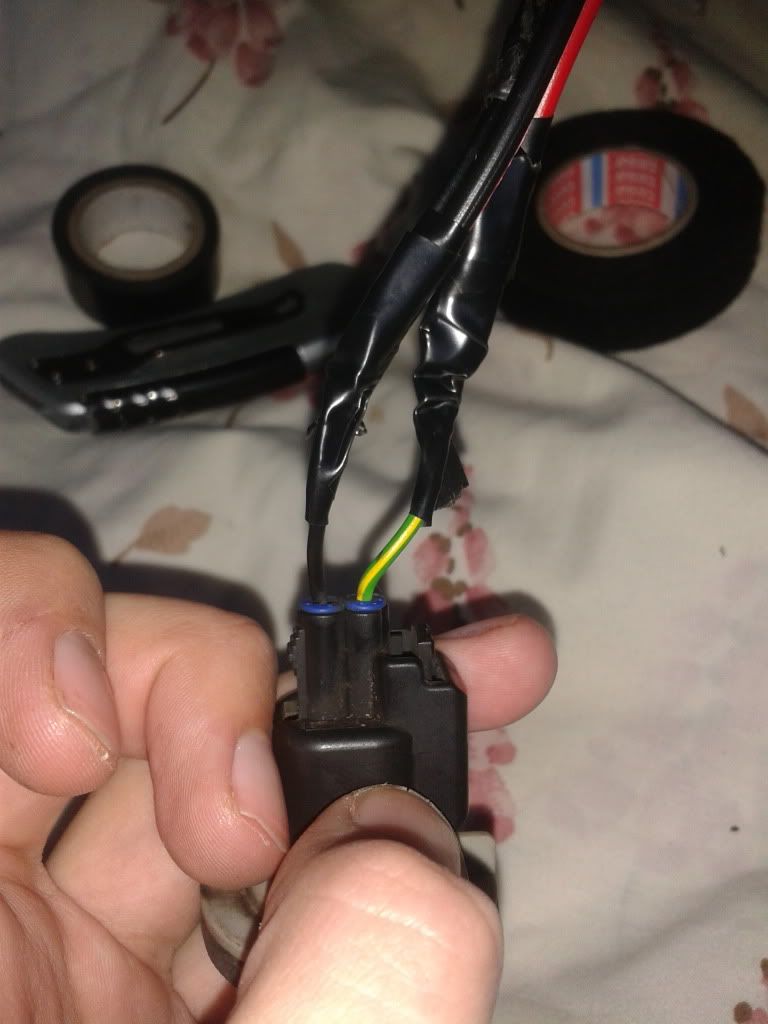

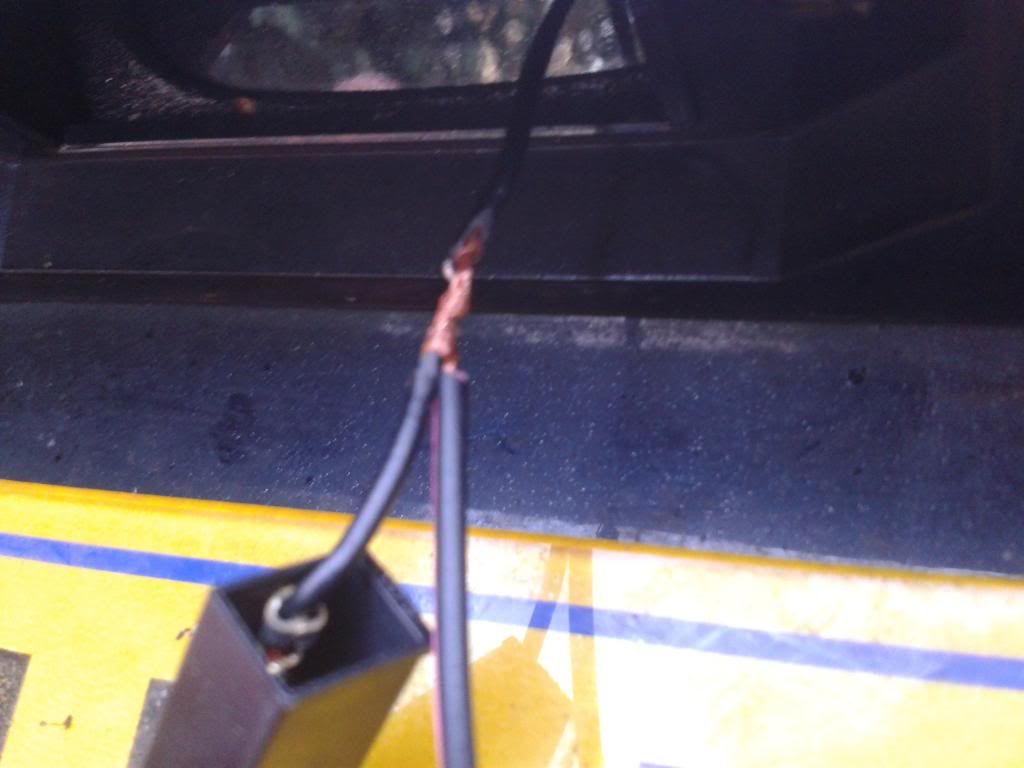

I then tightly wrapped the copper wire of the new number plate light around it

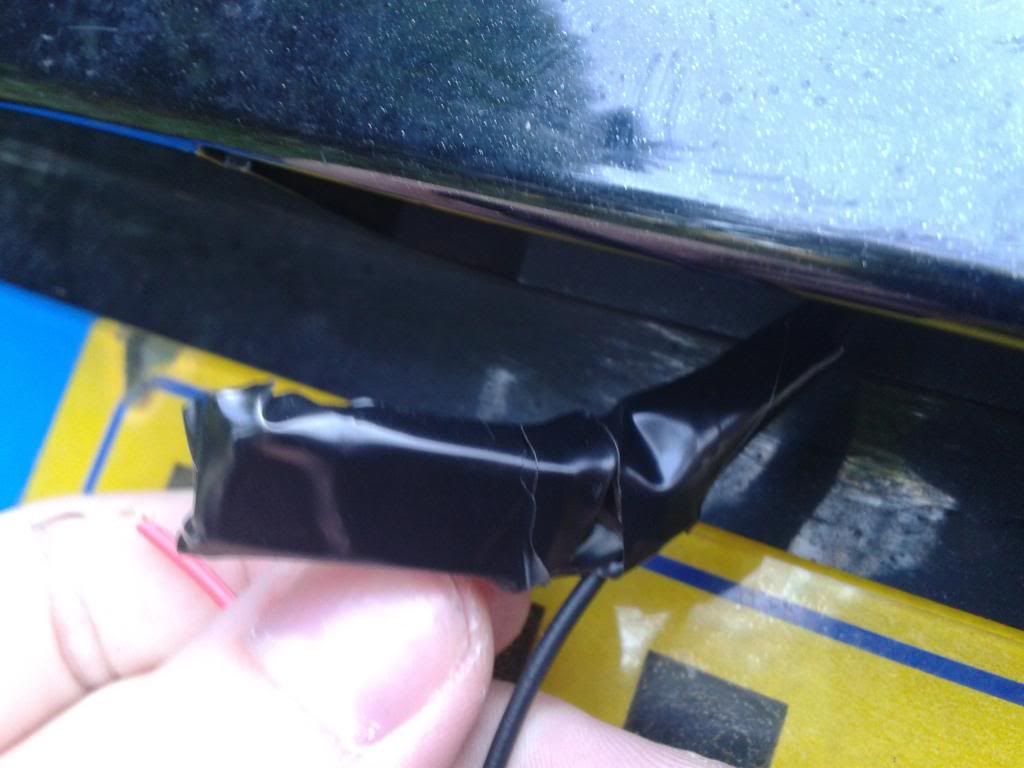

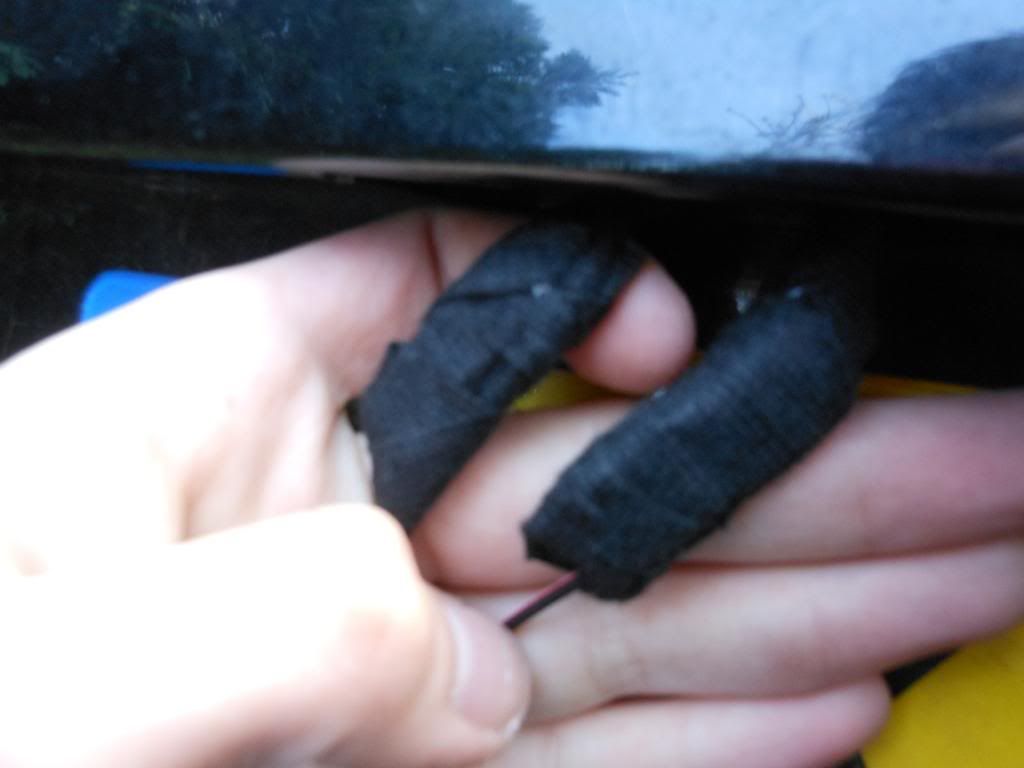

I then taped it heavily in insulation tape



And also taped up the plug itself

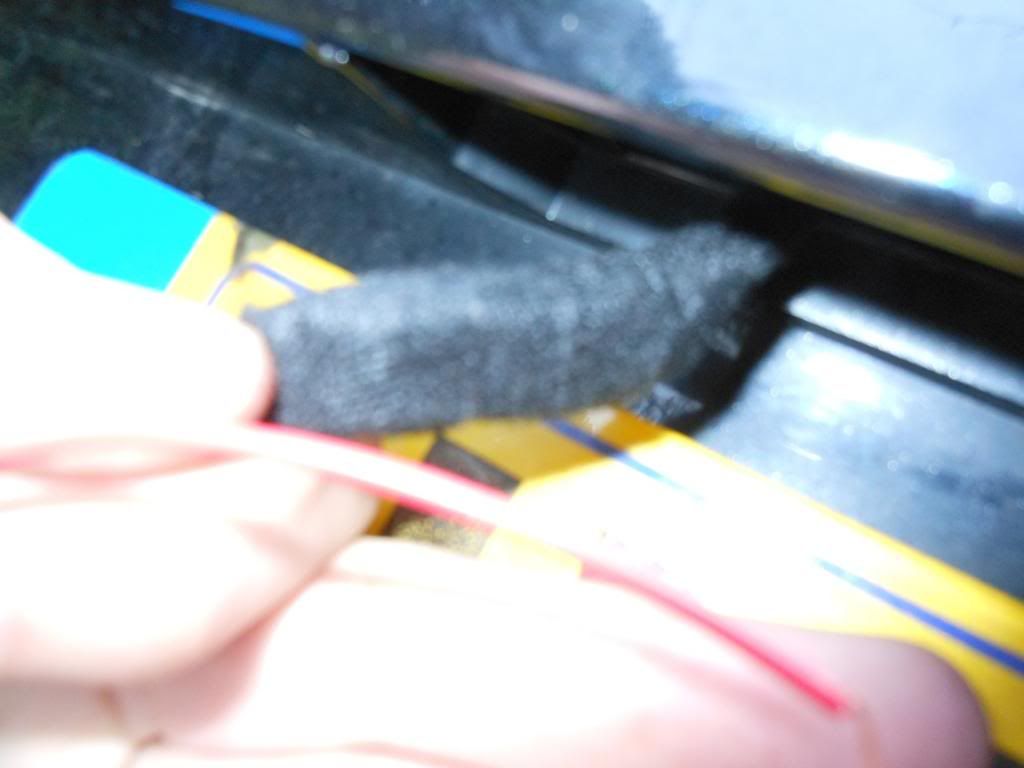

Then for extra insulation I cocooned it in fabric loom tape also



Next I repeated the process for splicing the live wires together

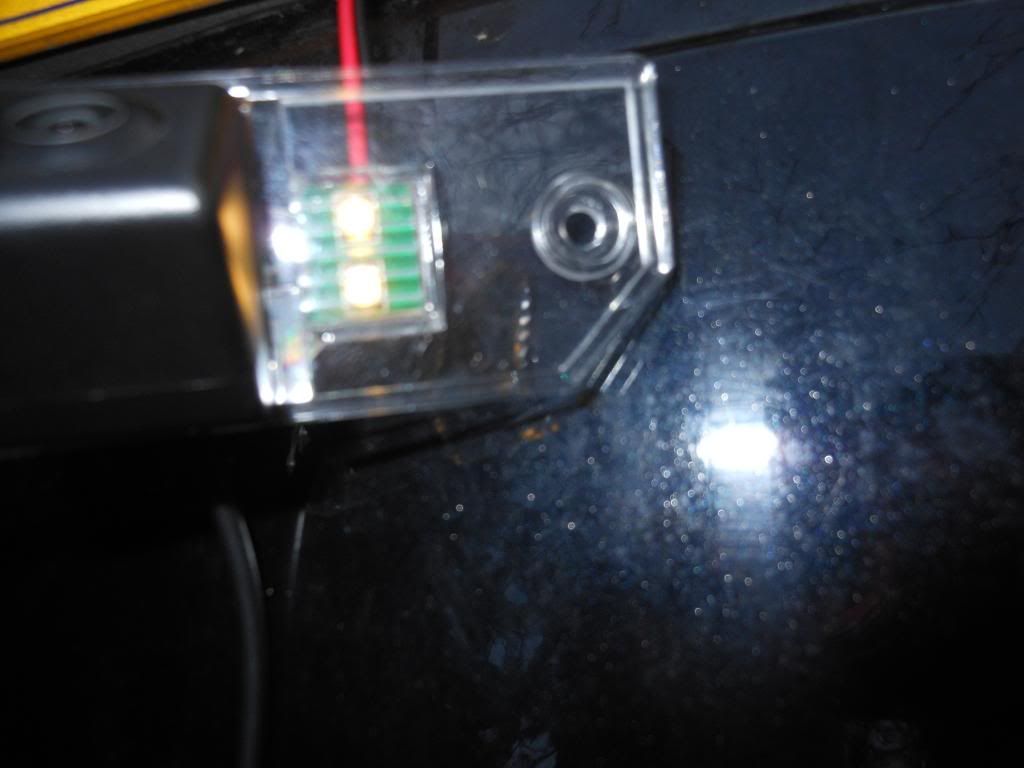

At this point I turned my side lights on to check the built in number plate light of the camera actually worked



It's hard to see in this photo but it is lit up so I then repeated the process of heavily insulating the live wire

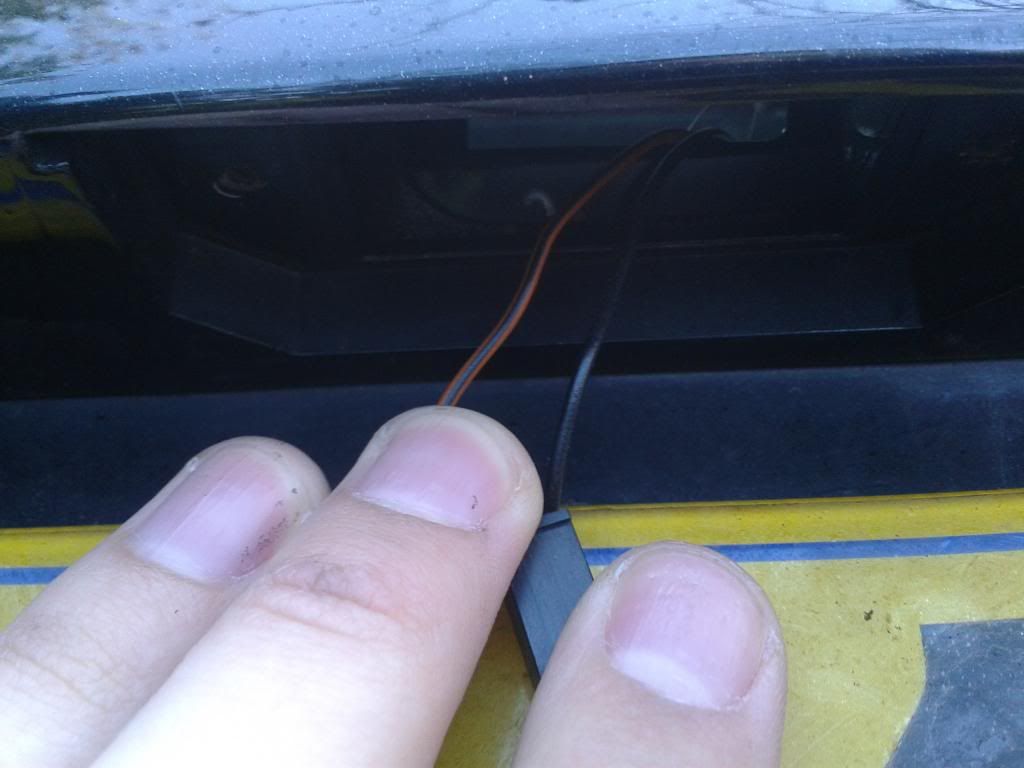

Now it's time to thread all the wiring, including the other wires if the camera



Up through the hole for the number plate

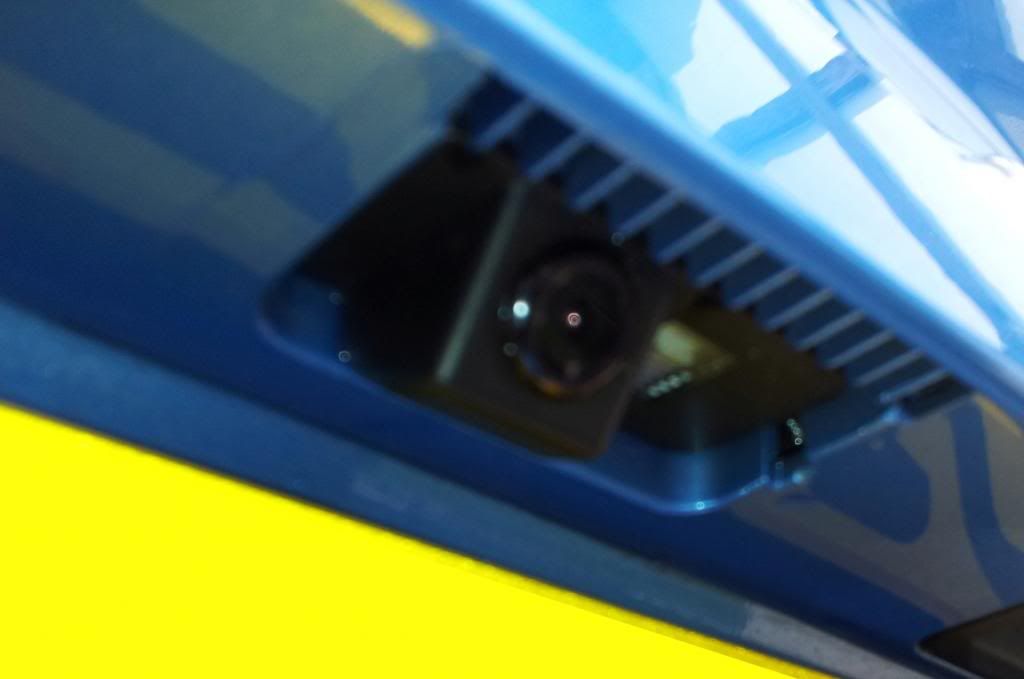

You can now screw the camera/number plate light in place



Now depending which type of camera you went for, be it a universal one or the number plate holder, the rest of the guide will be the same whatever camera you have

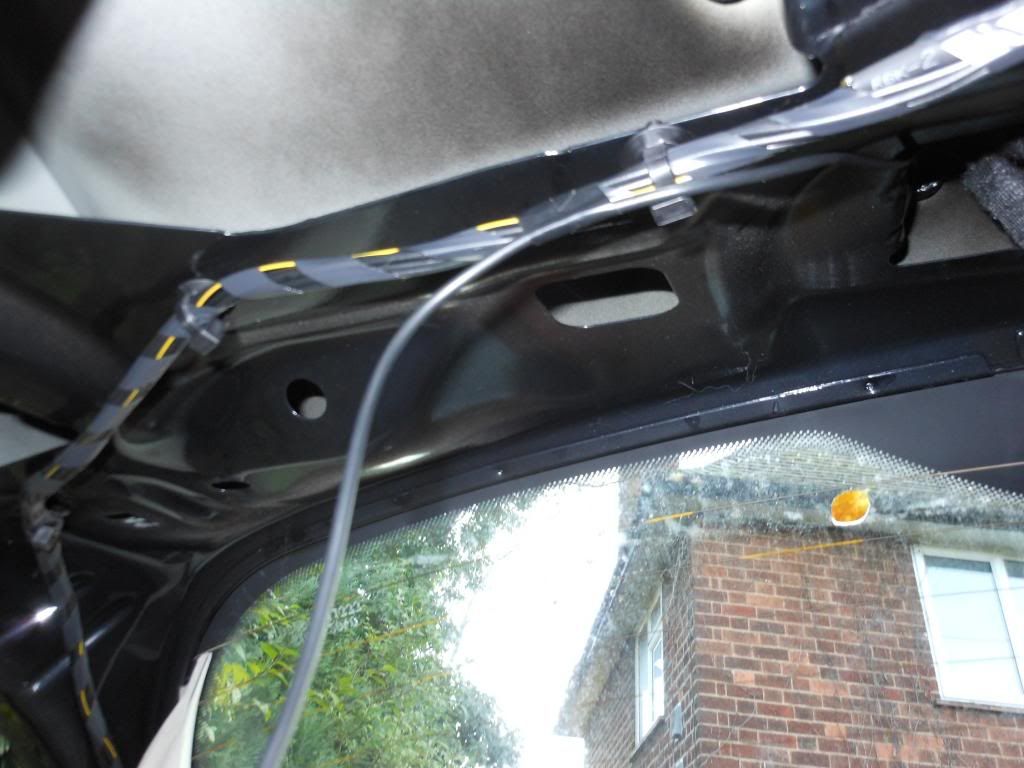

Next job is to route the wiring around the boot lid, so what I did is tape it to the existing wiring already in the boot lid for neatness to keep it all together

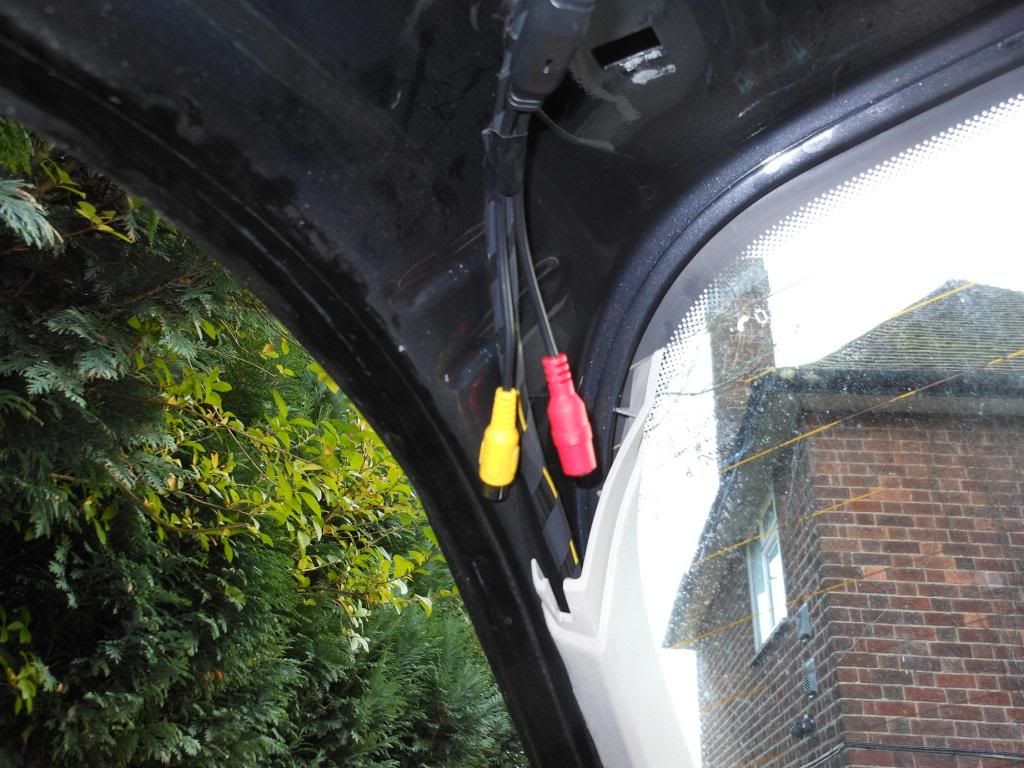

Once you get to here

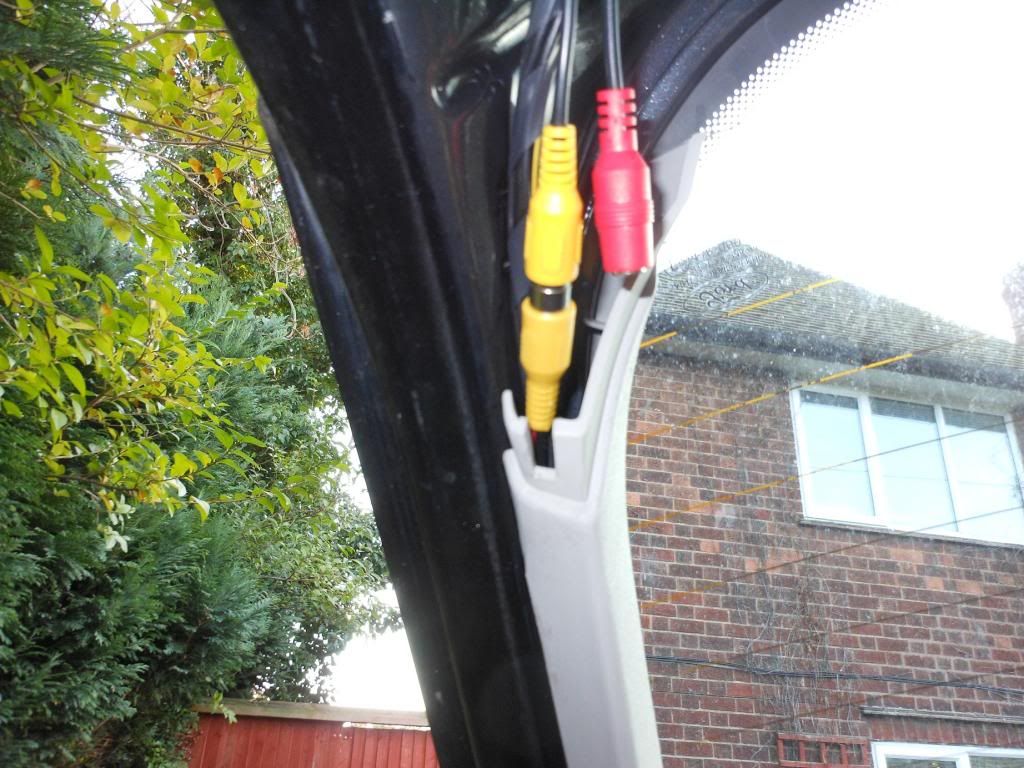

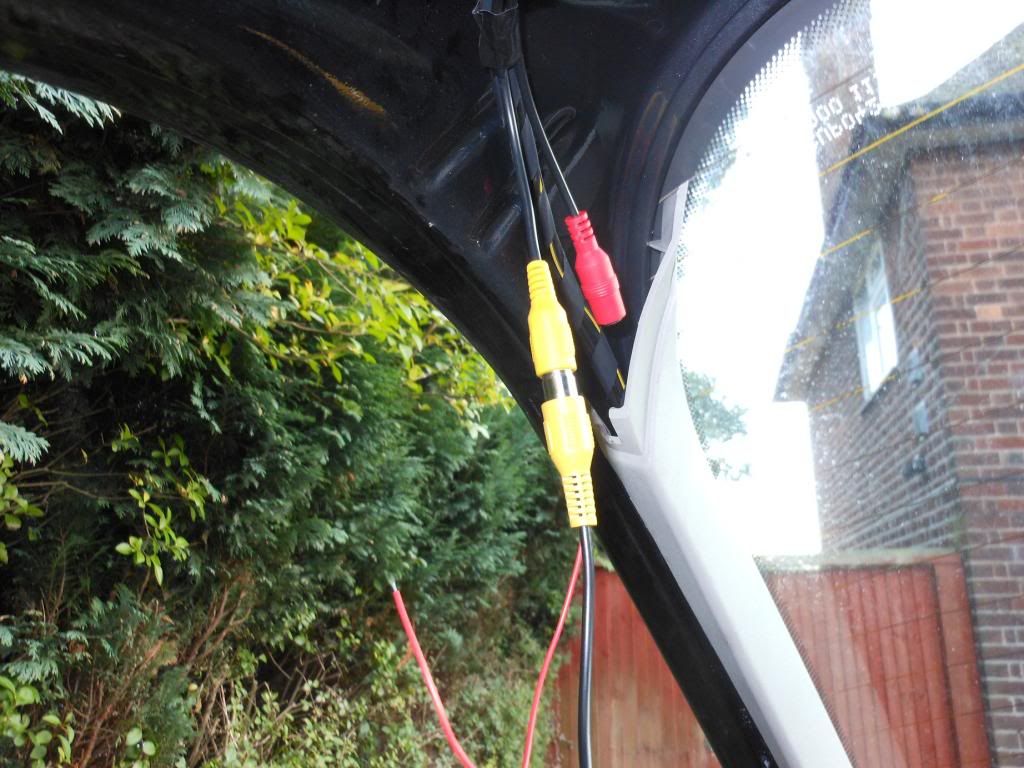

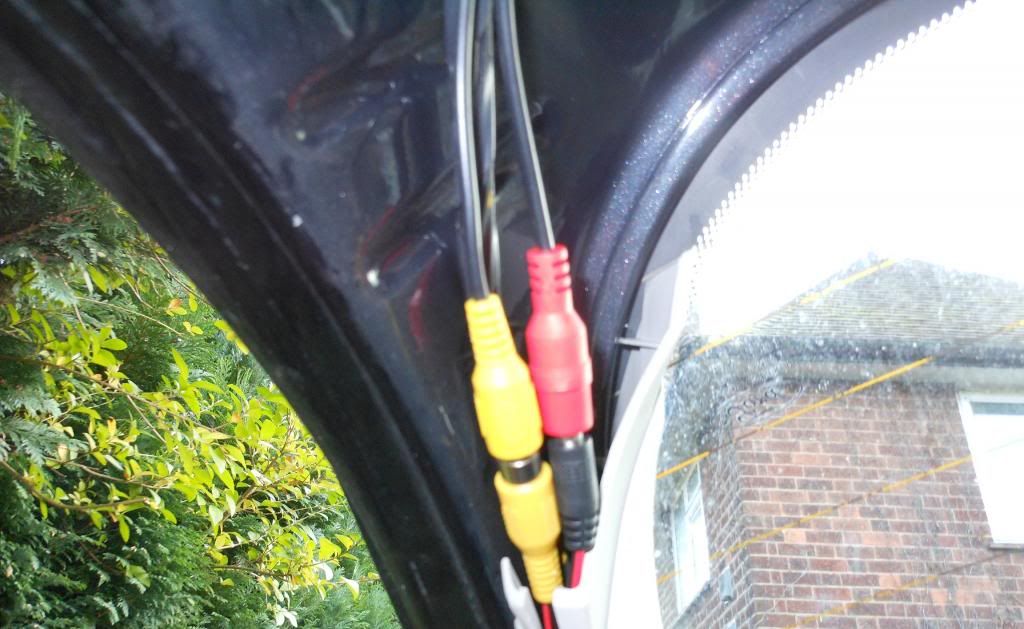

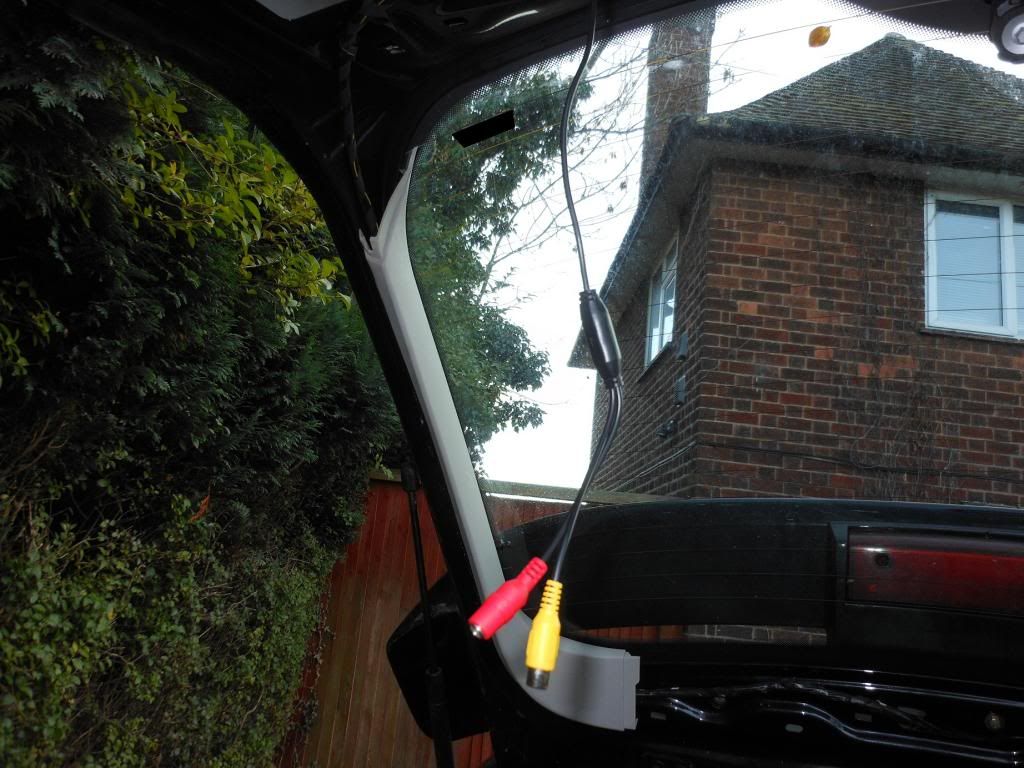

It's time to plug the long 6 metre video cable with yellow plugs either end, into the yellow plug of the camera



It's this wire that will route all through the car and plug into the headunit/monitor

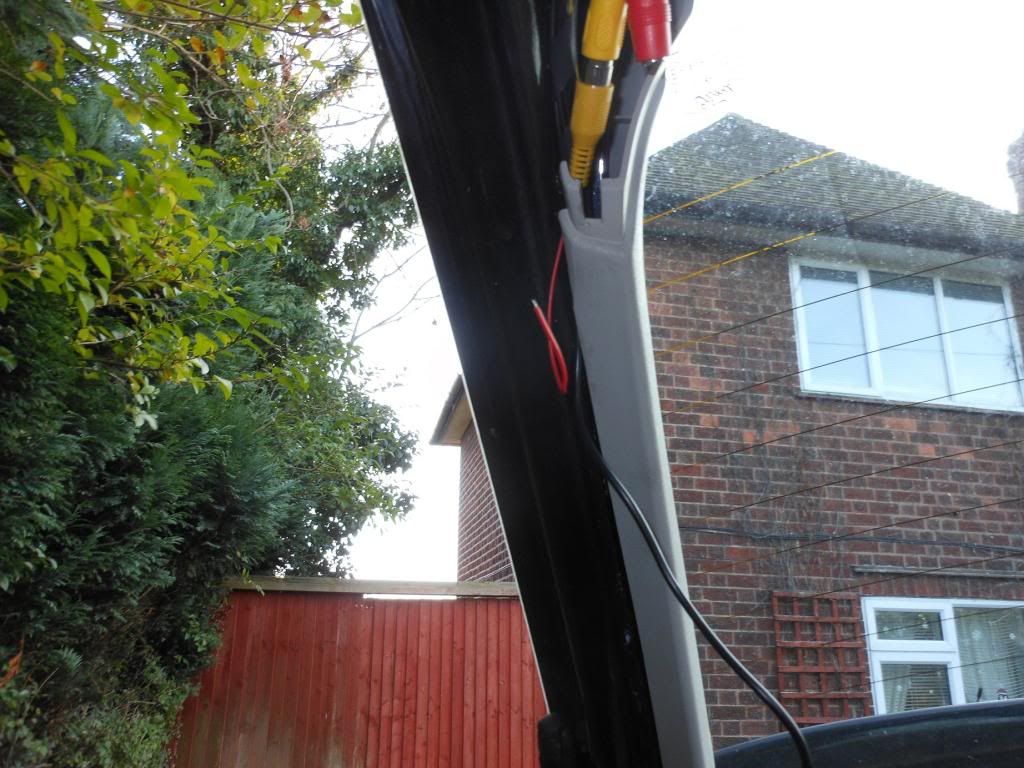

The next trim piece doesn't need to be removed at all as you can simply took it in around the edges

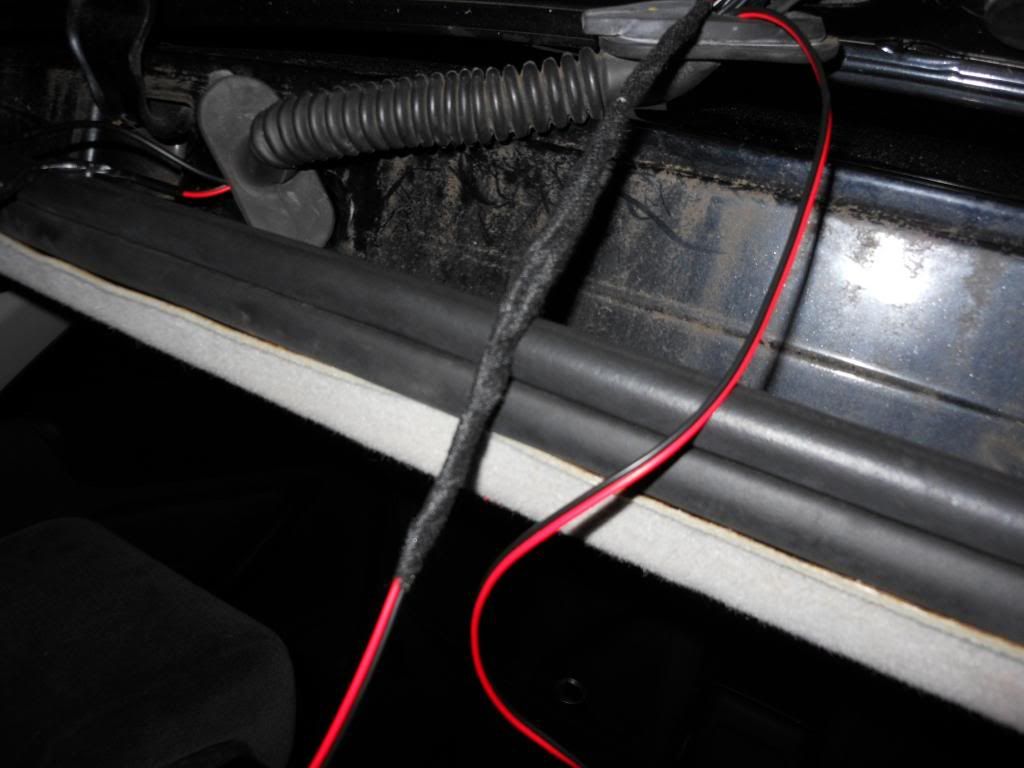

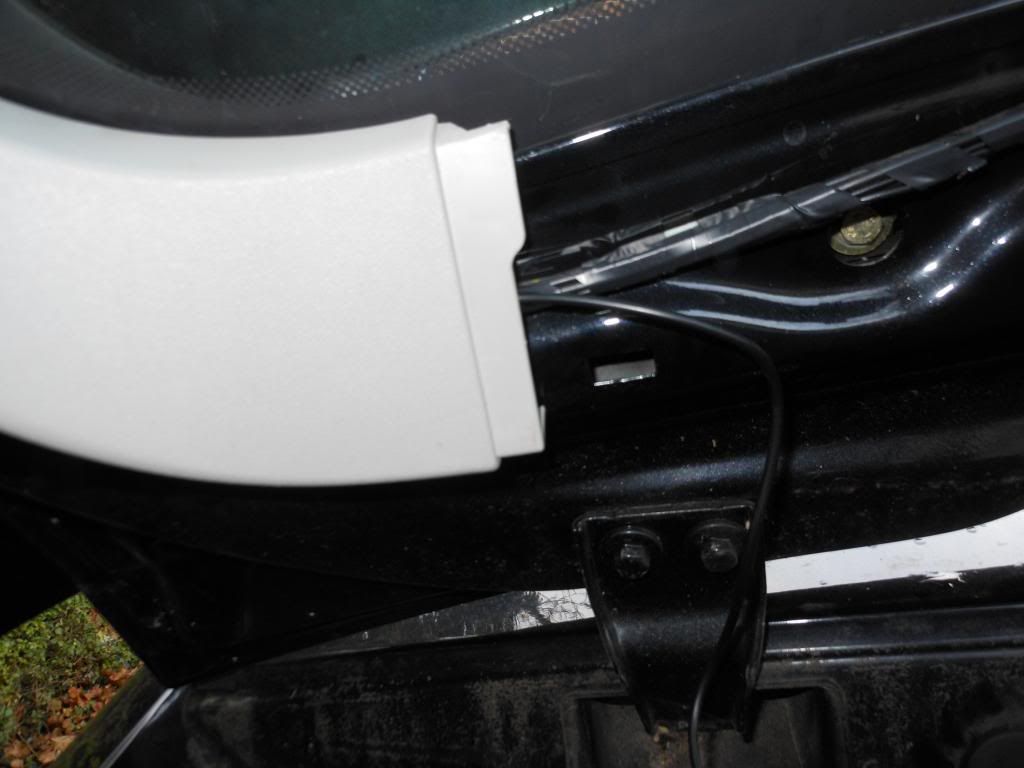

Trace the wire round round the edge of the trim piece, tucking it in all the way round till it comes out the bottom (top of the boot lid)

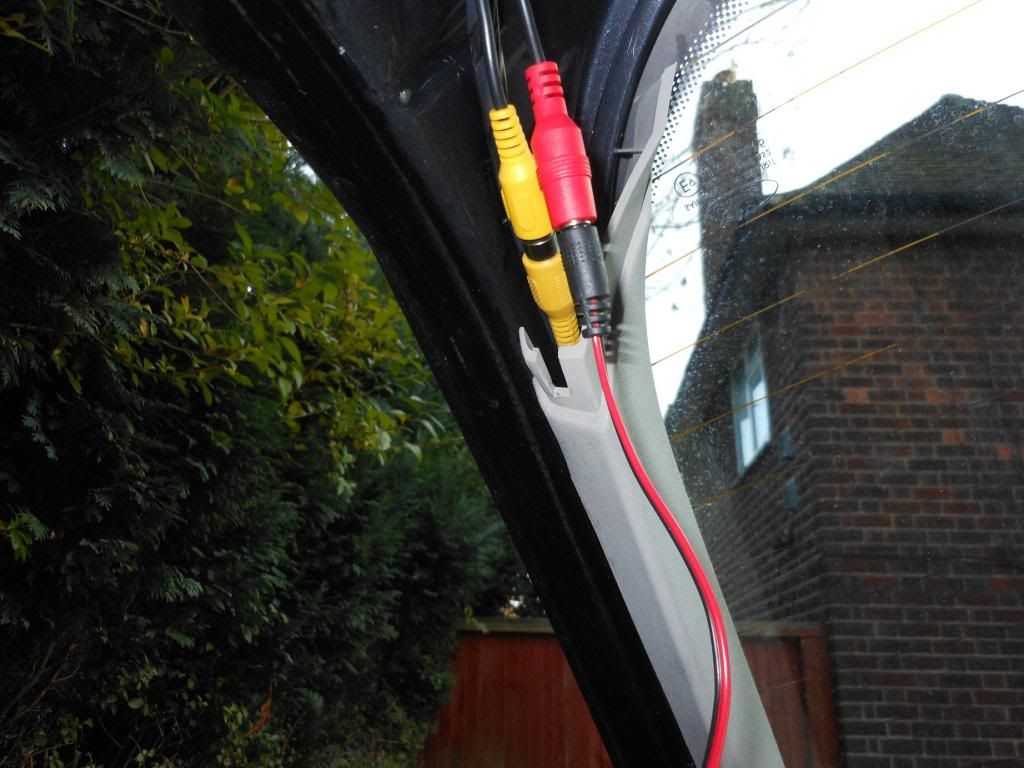

Repeat the process for the short 1.5metre black and red wire





It's this wire that will go to the reverse light so the image will be displayed when reverse gear is selected

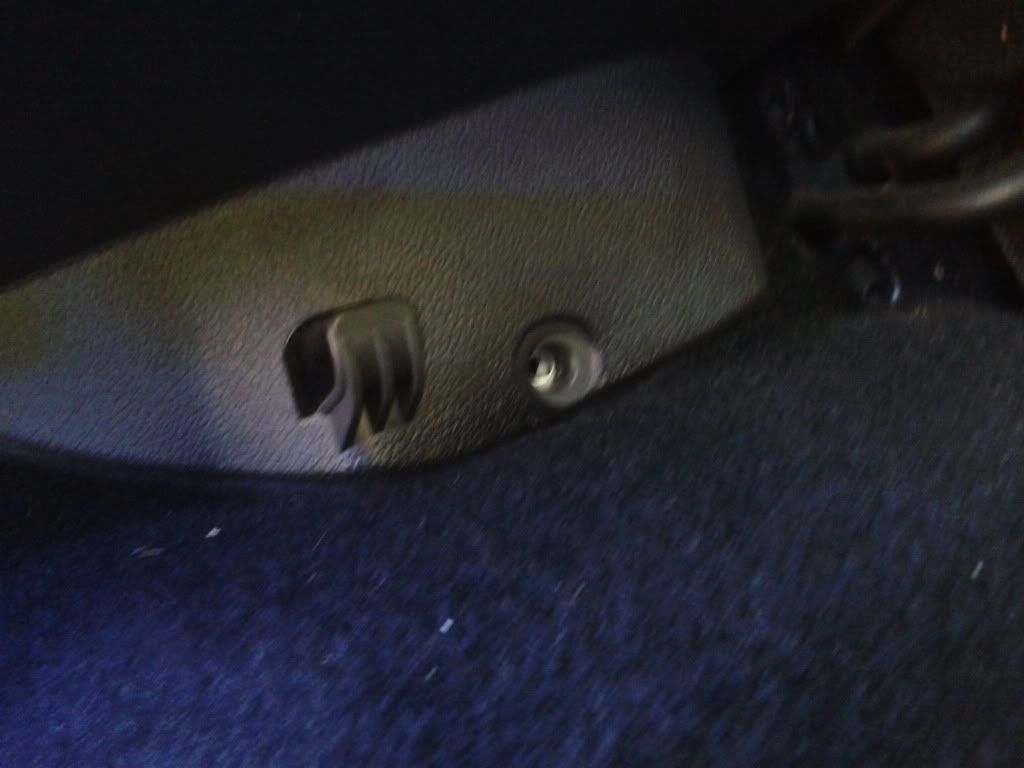

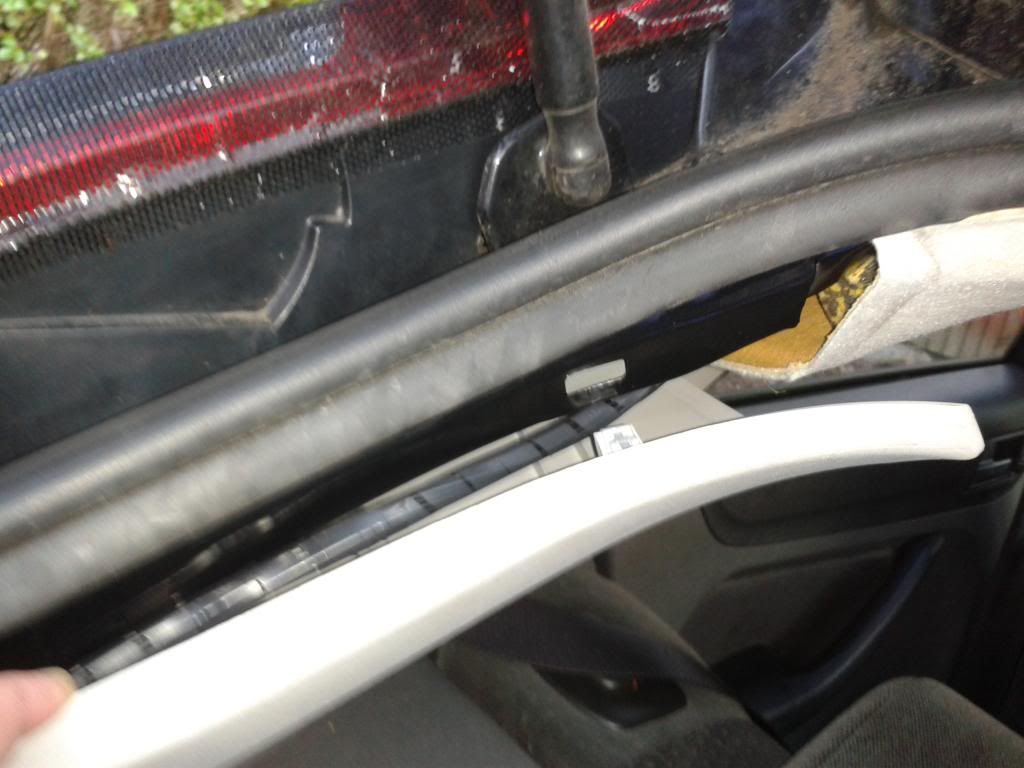

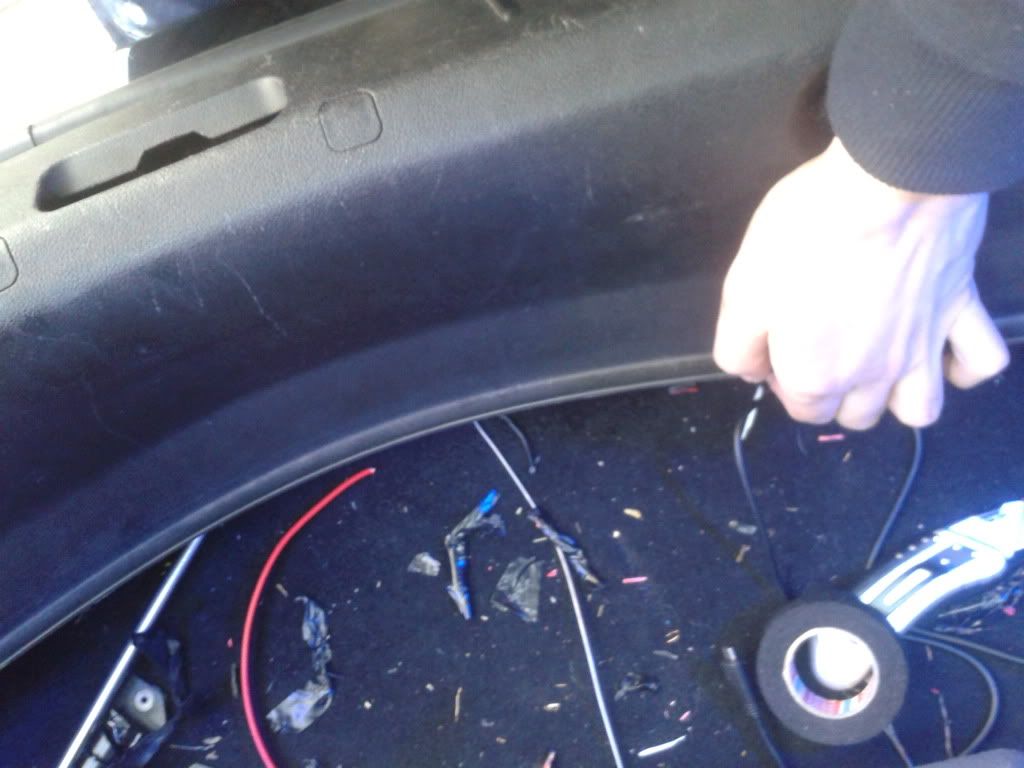

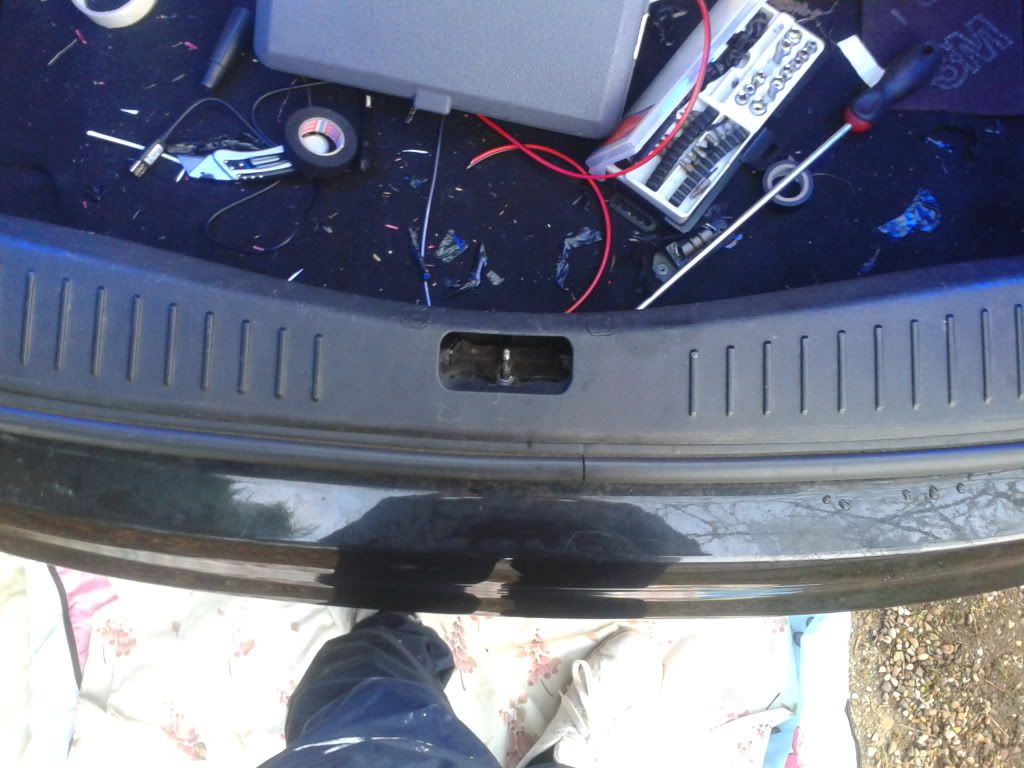

Now you have to remove the trim pieces in the boot, starting with this big piece

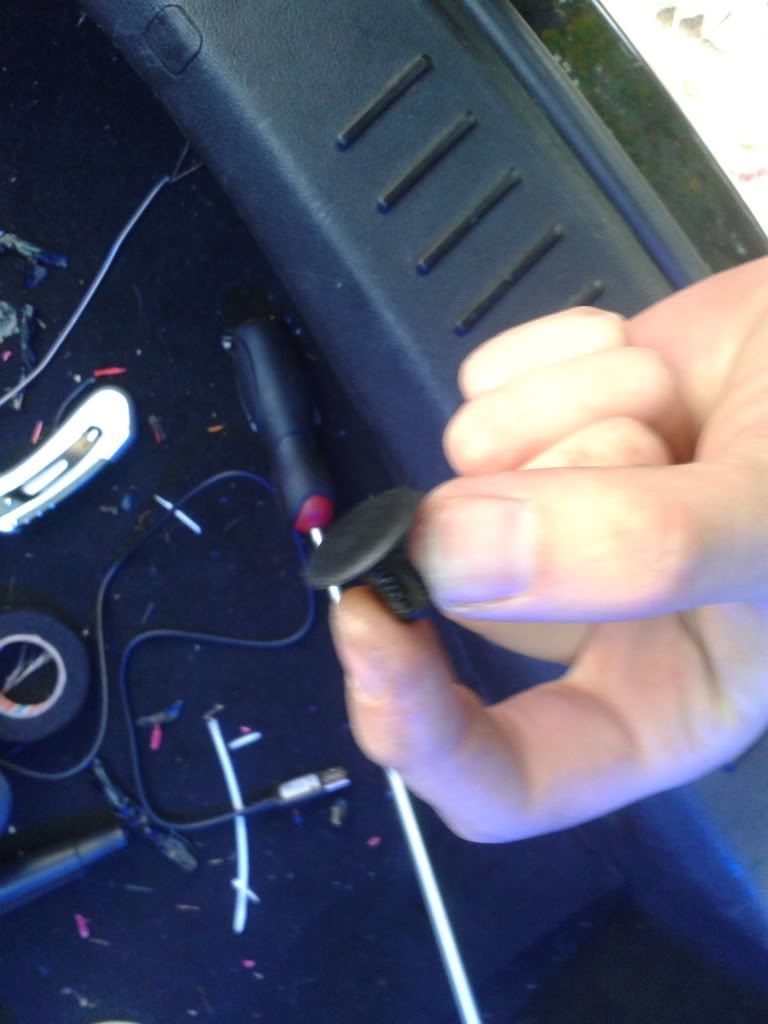

It's held in by 4 of these poppers



Simply get a flat blade screw driver under the edge and pop em out. Once all 4 are out the way, just grap a hold of the trim piece and pull to unclip it

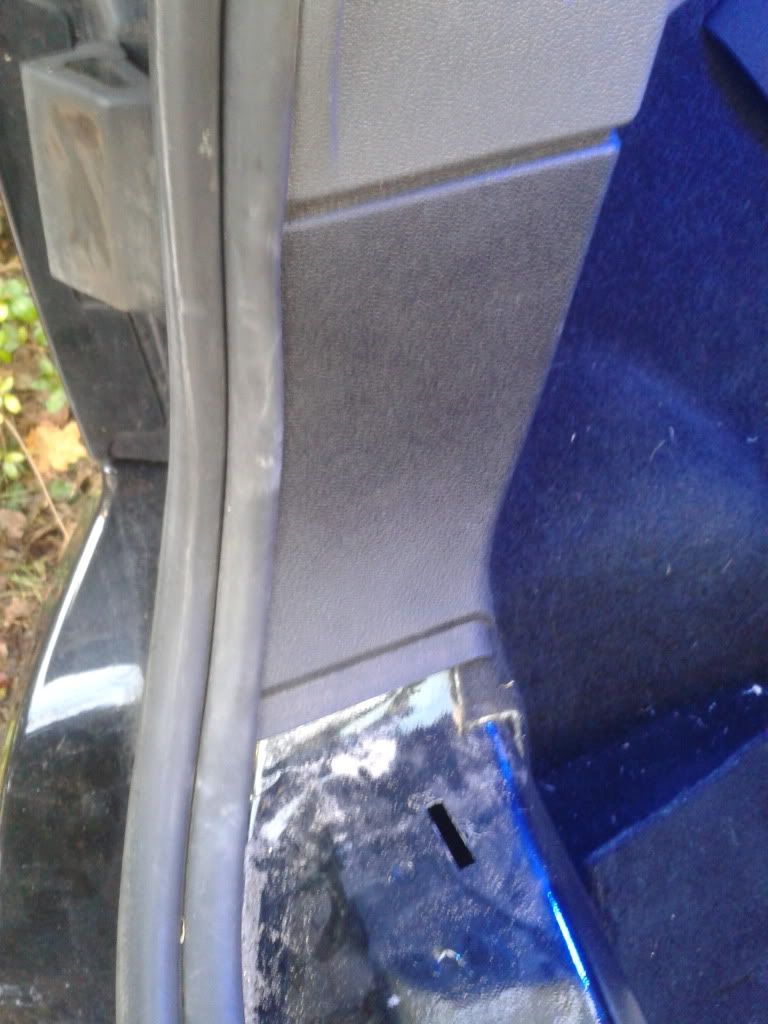

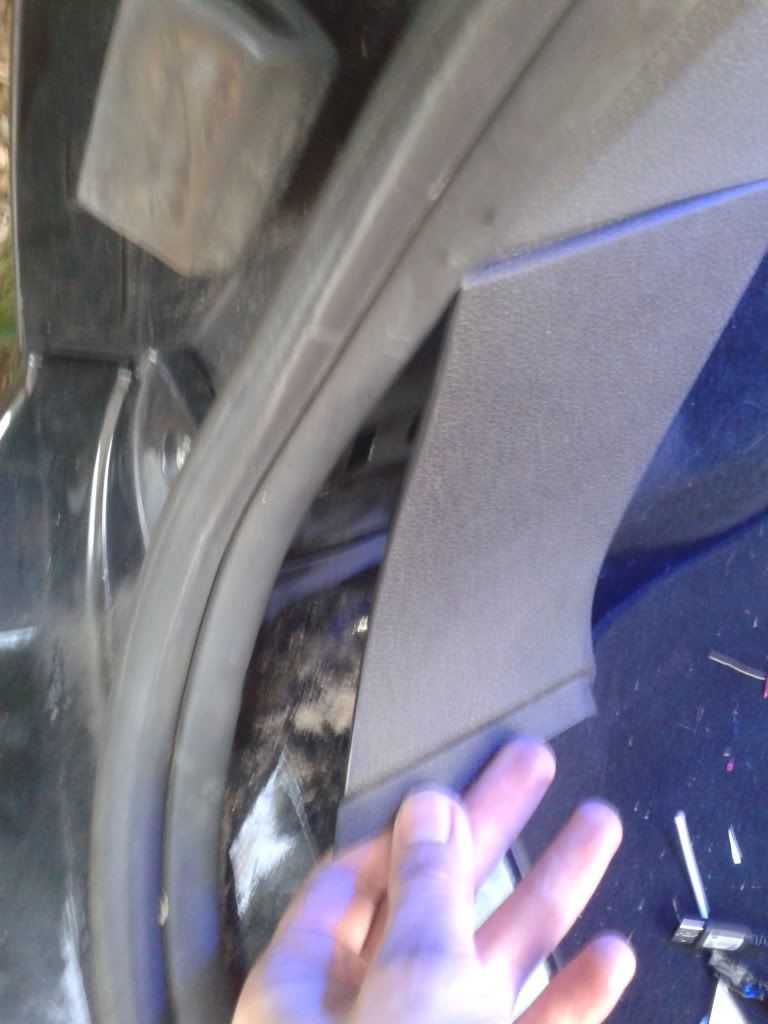

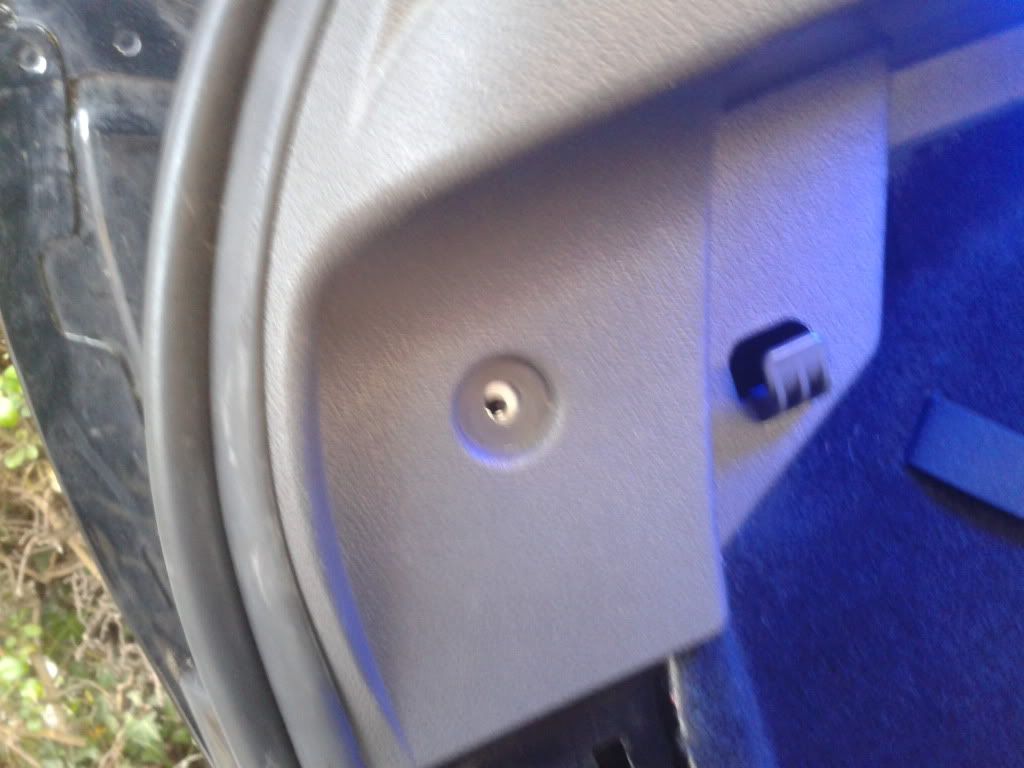

Next there is a smaller trim piece either side of the boot



Again, simply pull to unclip



And the other side



Also the 2 screws of the top trim piece





Once all that lot's out of the way, you'll be able to pull and unclip the trim piece around the top edge of the boot

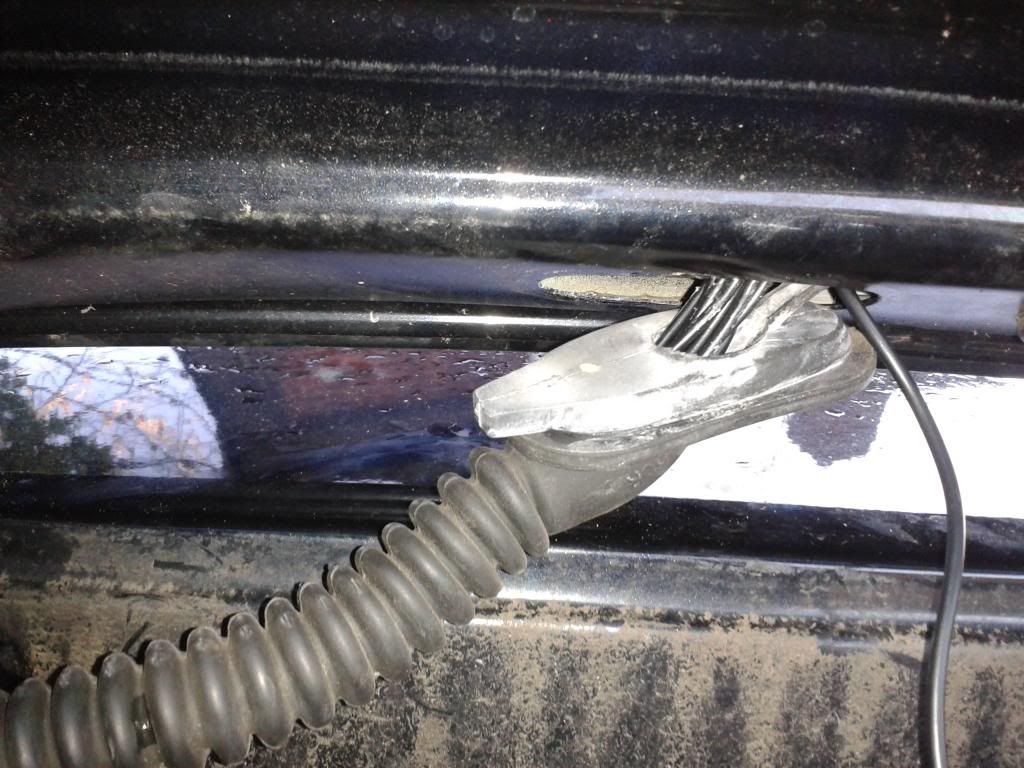

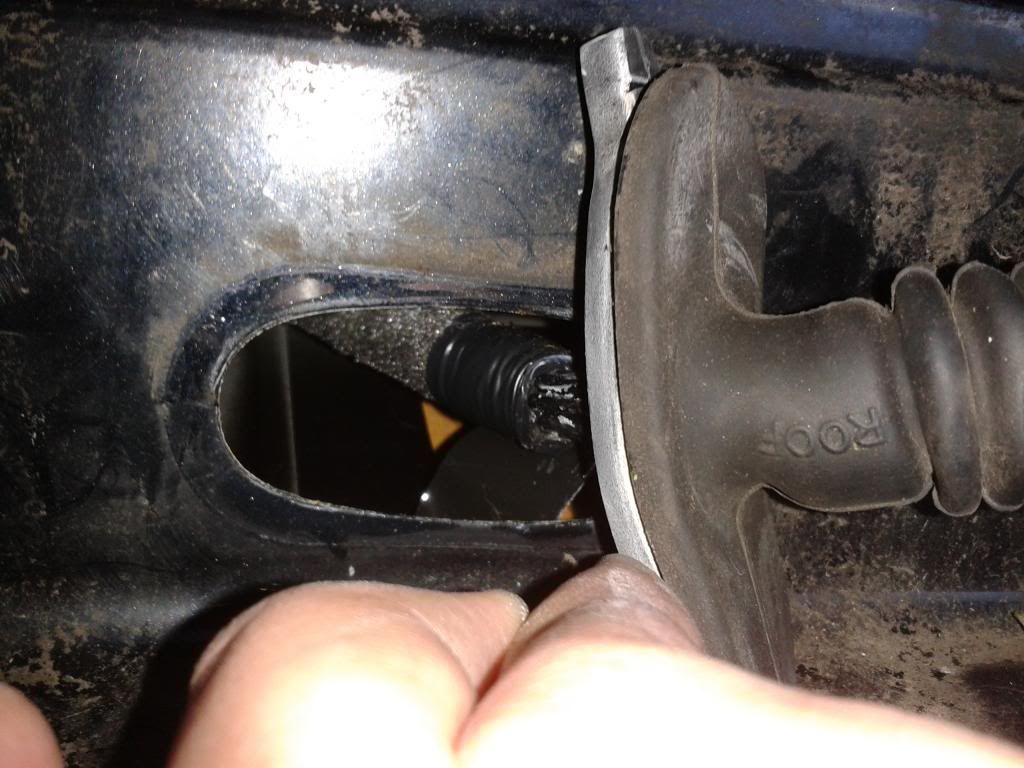

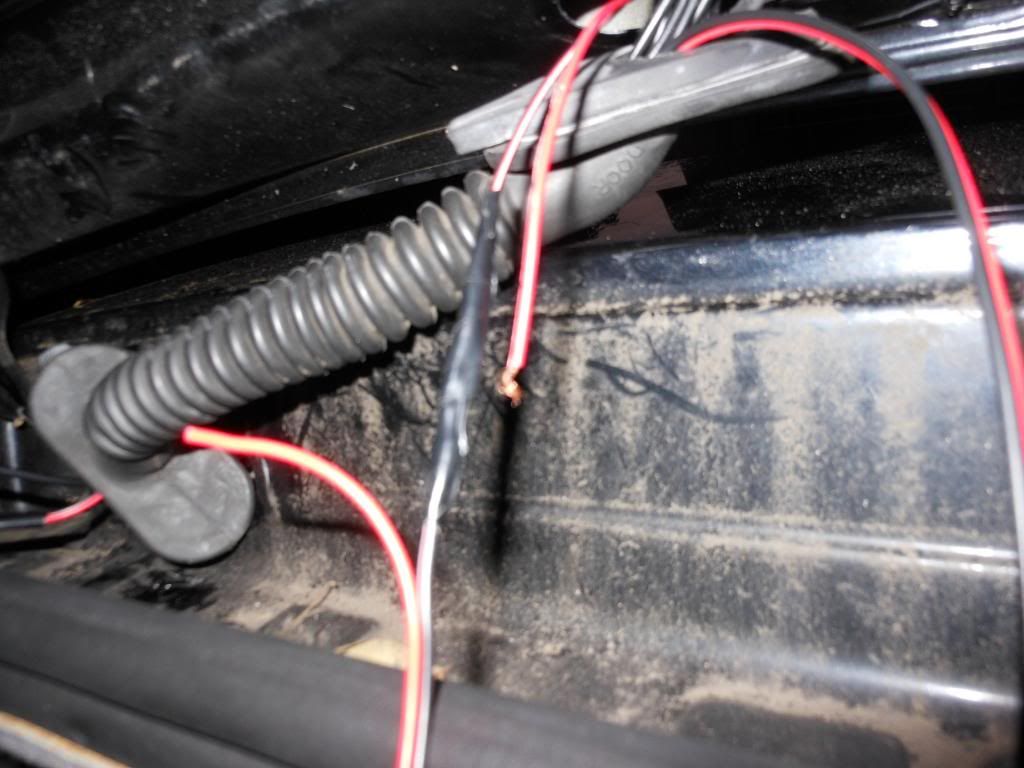

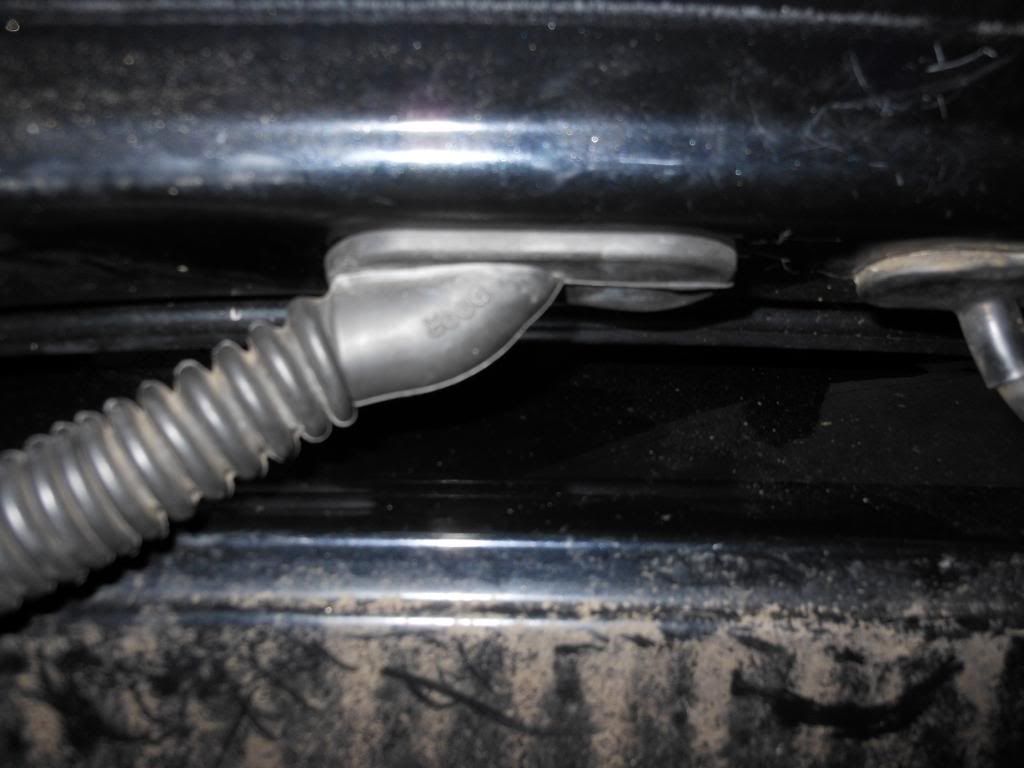

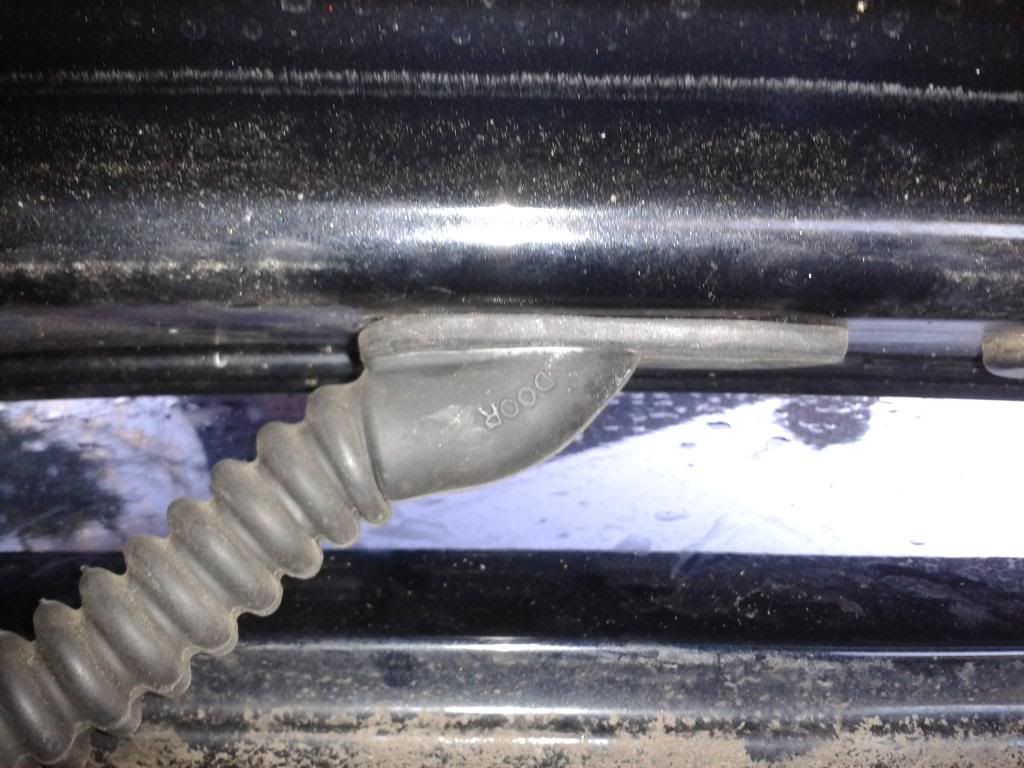

Now you need to locate the rubber conduit joining the boot lid to the car



And pull it out

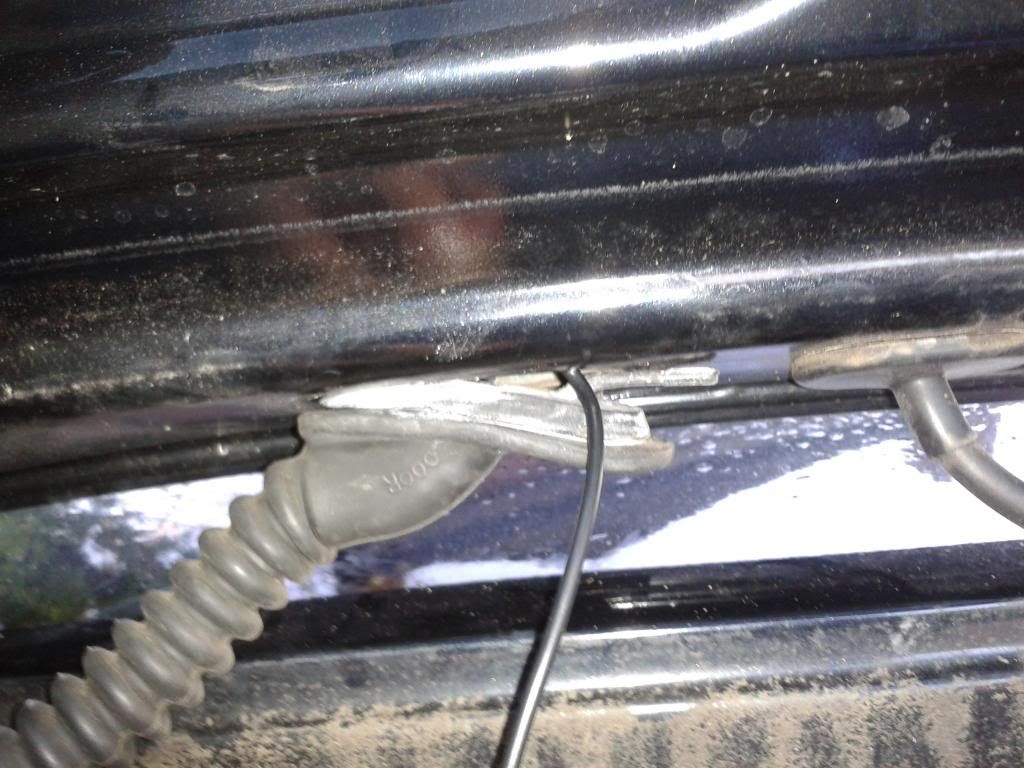

Now pull the long video wire through it's hole in the boot lid

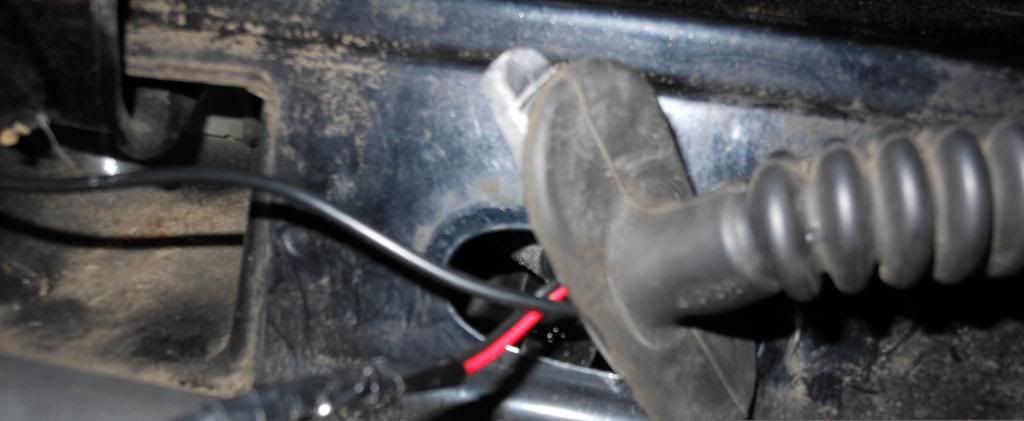

Now pull the other end of the conduit out the car



You now need to pull the video wire through the conduit. This is known to be bloody hard

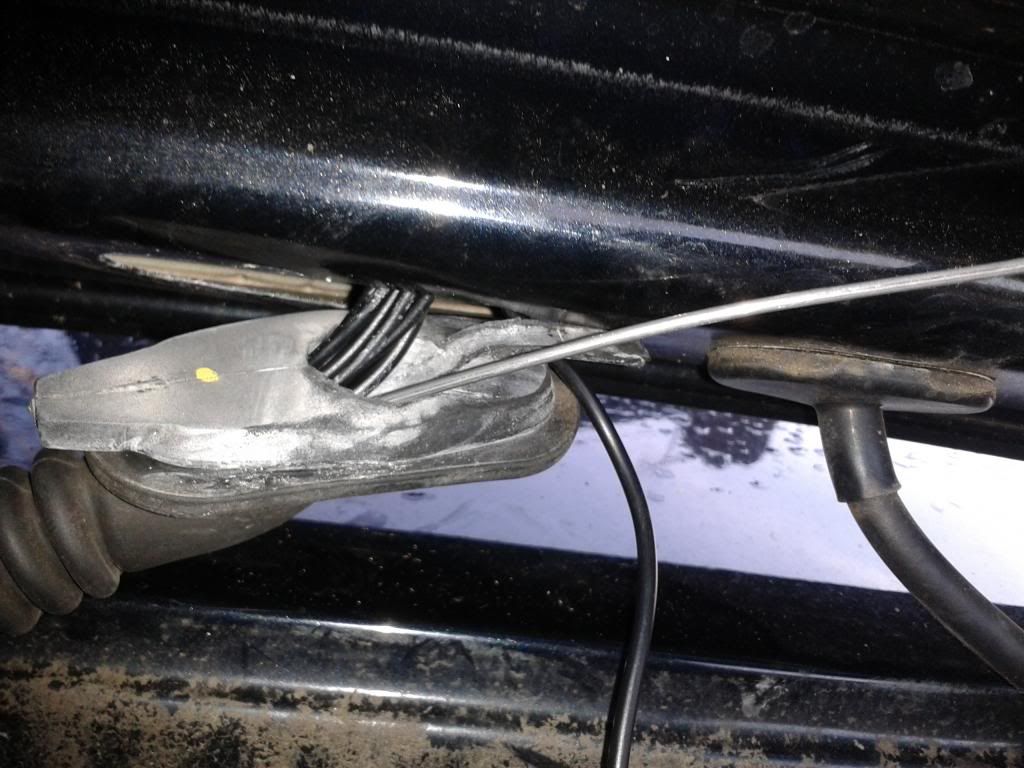

To make it easier, get a section of wire coat hanger and slide it in one end of the conduit



Route it right the way through and out the other end



Now you need to tape the video wire tightly to the end of the coat hanger

Thing is, I don't see any way of pulling the video wire through the conduit with the plug intact as it's just way too tight.



Either that or I just haven't got the patience. I did try but it just wouldn't happen and it just kept pulling off the coat hanger

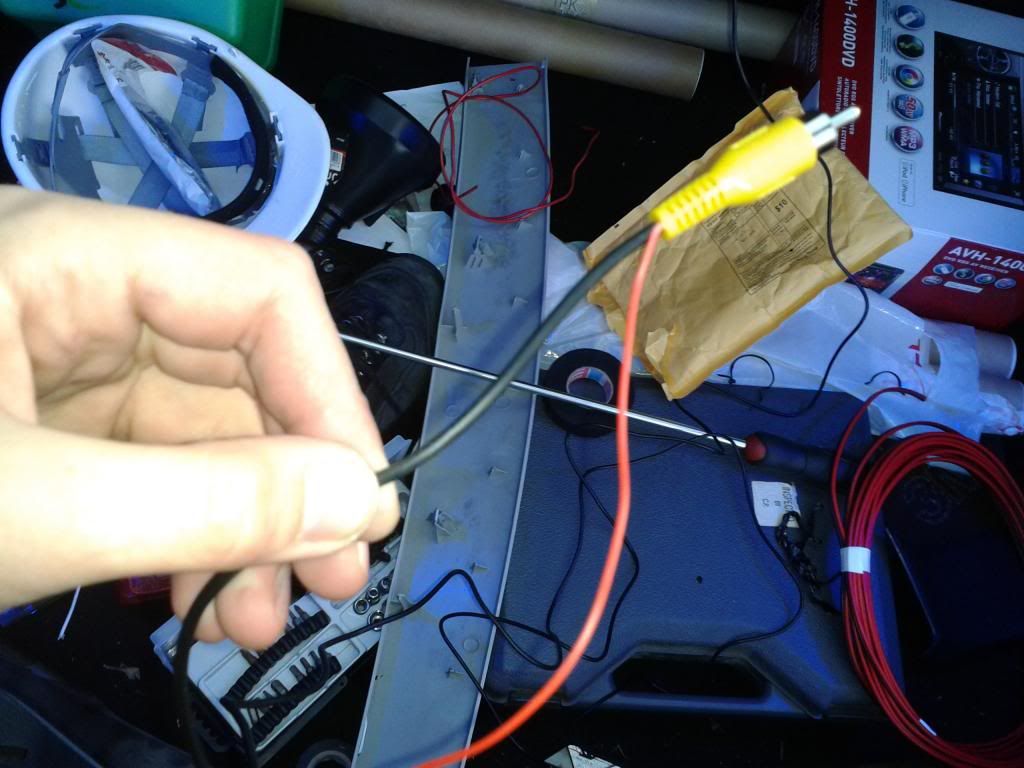

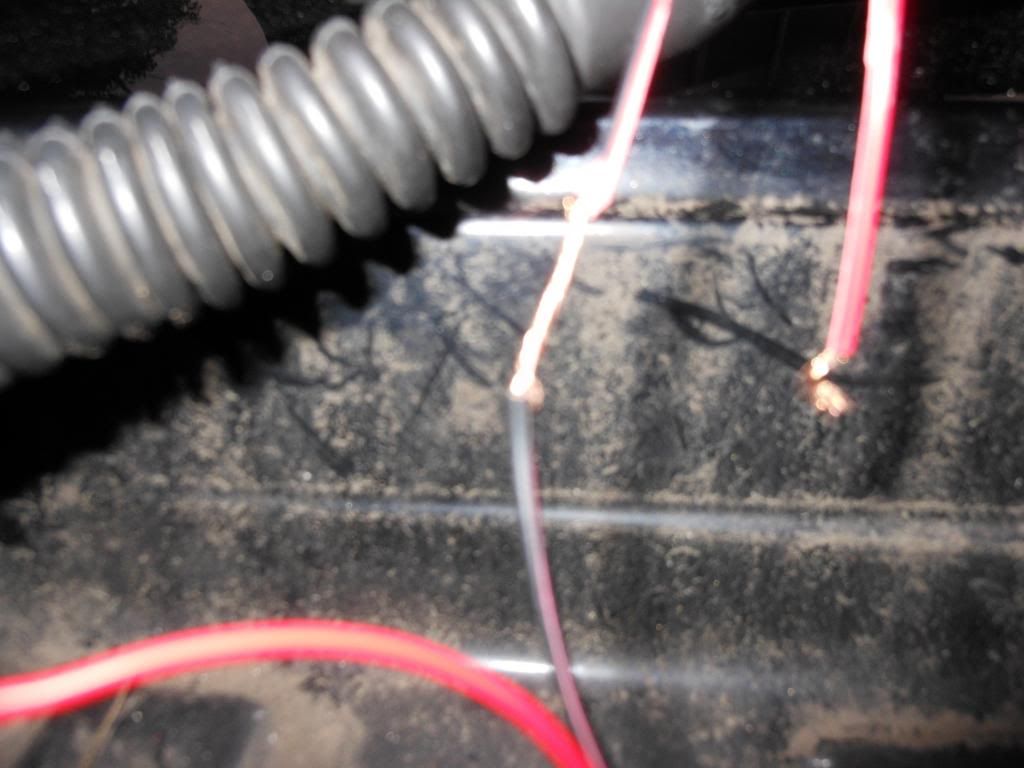

So what I did was cut the plug off completely, leaving a few inches of wire on the end of it. And look what wiring was inside the black video wire

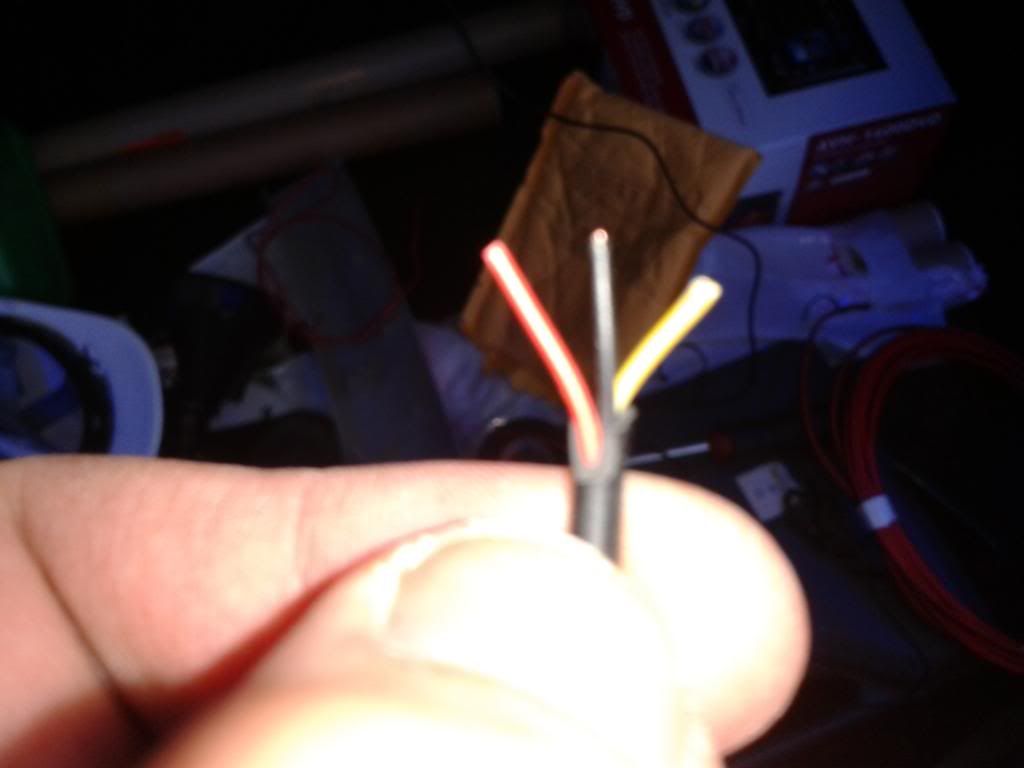

I found 3 different colour coded thin wires



By cutting the plug off, I taped the wire to the coat hanger and pulled it through the conduit with ease



It's now time to repeat the process with the reverse light wire

Thing is, the length of the reverse light wire provided with the camera is nowhere near long enough and will need extending by a couple metres. So you will require an additional length of twin core wire.

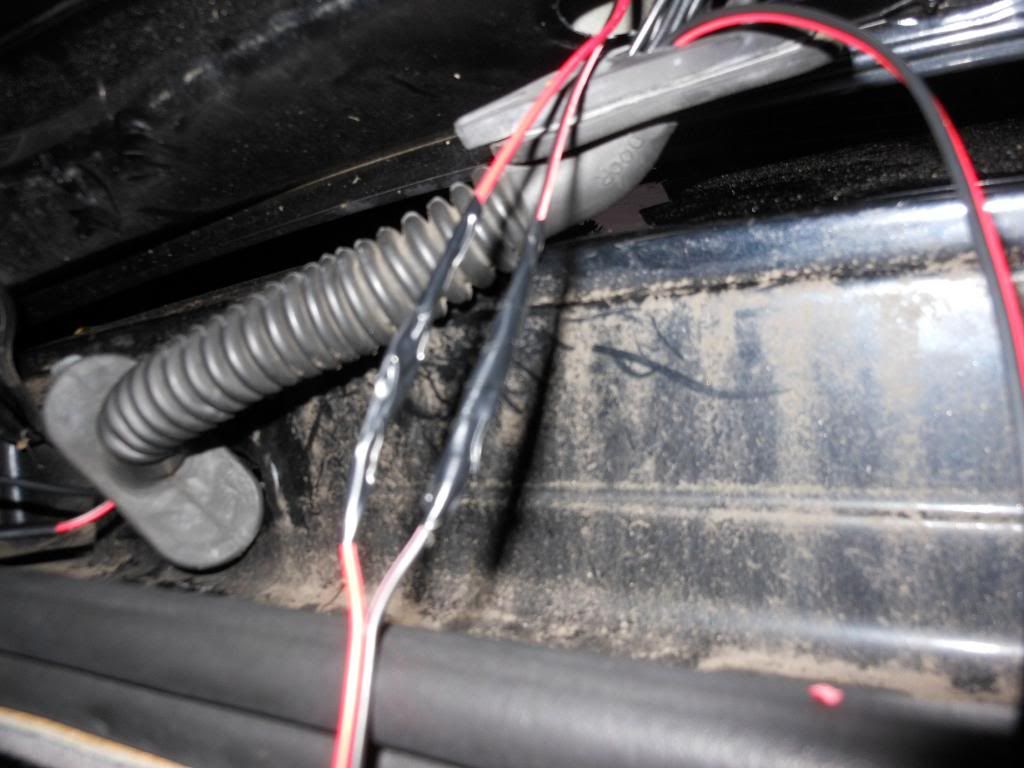

Simply splice the extra length of wire to the reverse light wire provided

Black to black





Red to red



Then insulate heavily with fabric tape



You can now tape this wire to the coat hanger and pull it through the conduit with ease

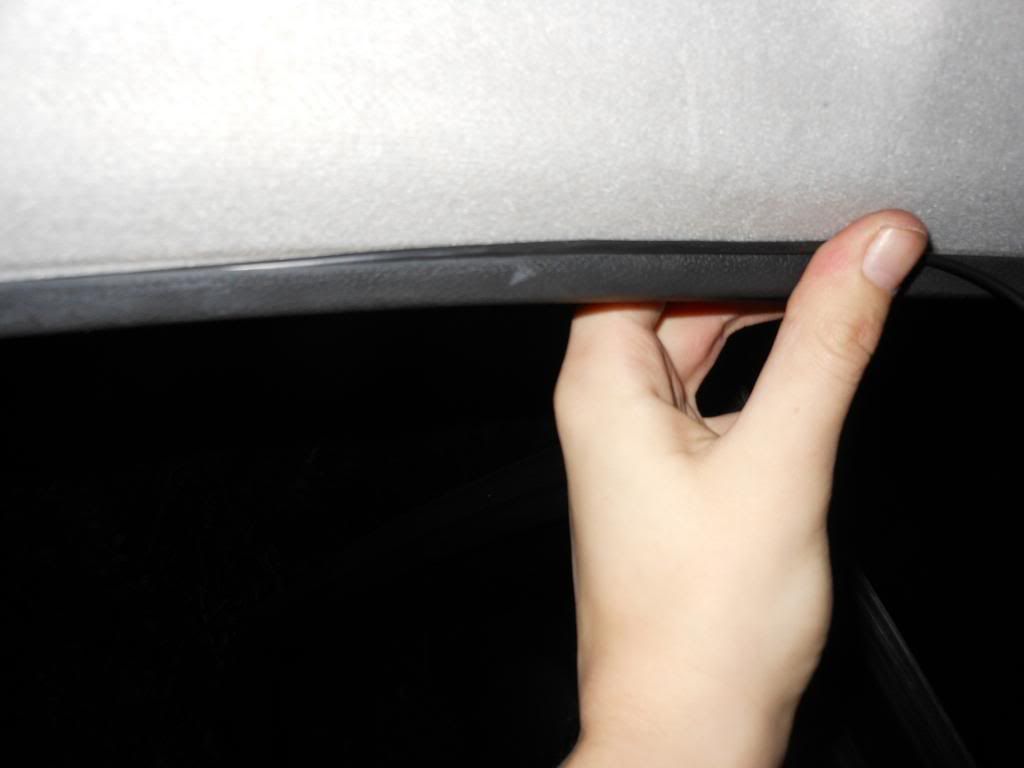

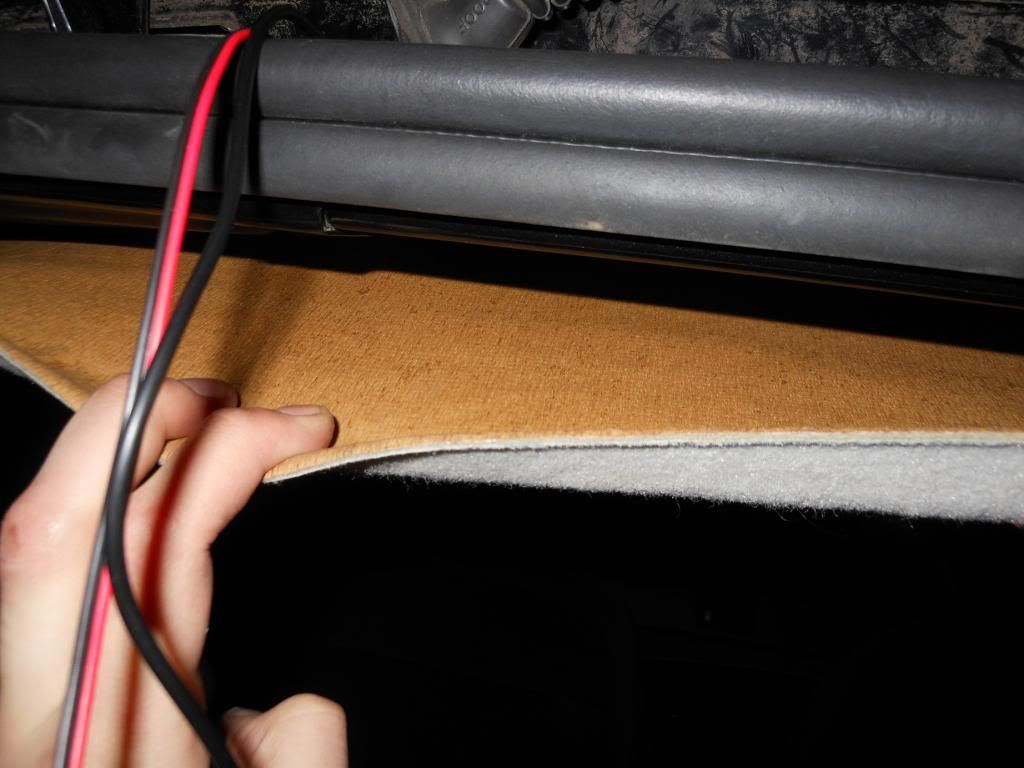

Now you need to pull down the roof liner slightly

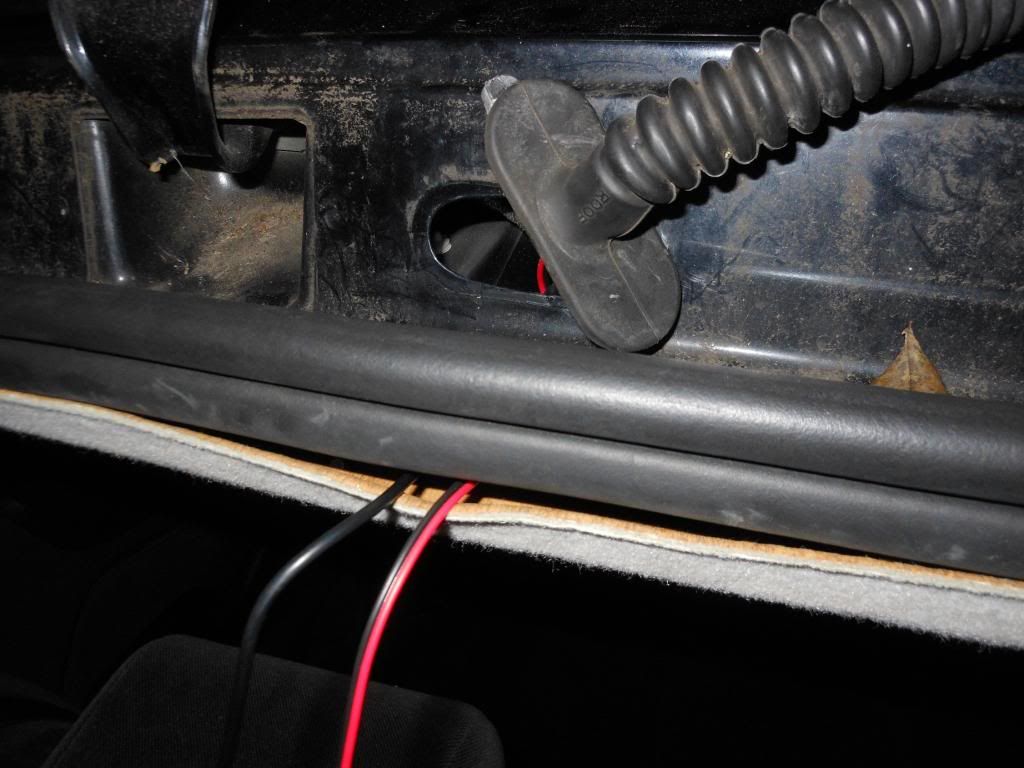

And thread both lengths of wire into the car



Now you can refit the conduit



Now you need to sit in the back of the car, push up the roof liner a little bit and pull the wire through

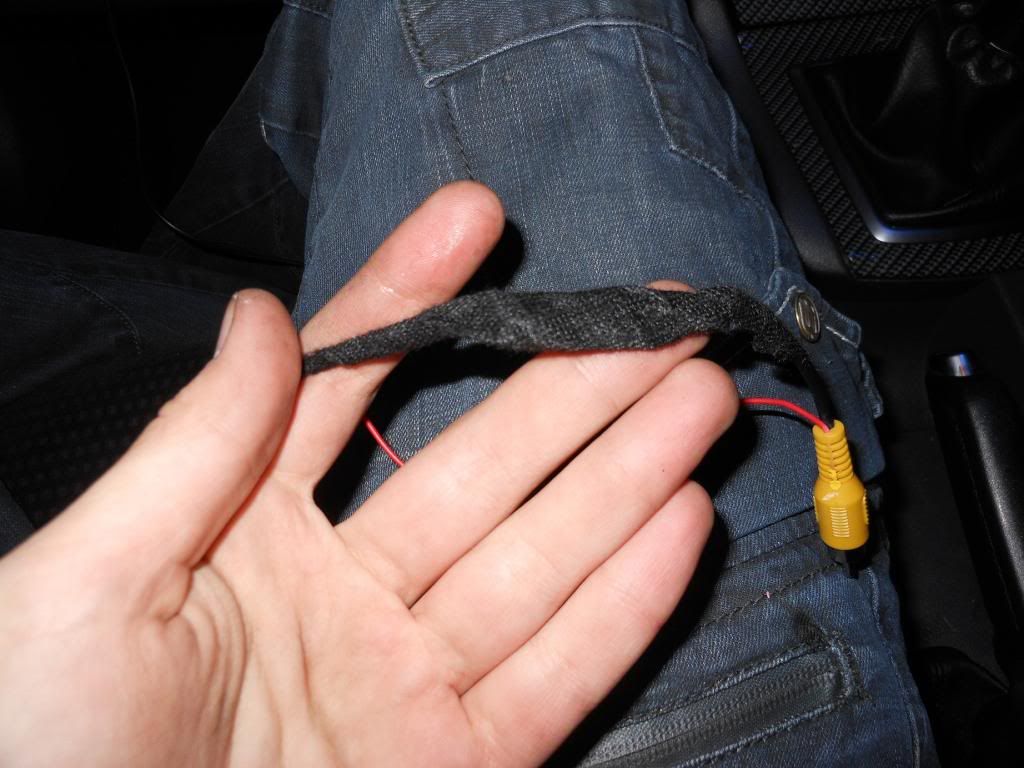

You'll notice in the above photo it's wrapped in loom tape, this is because like an eejit, I some how managed to pull the wire back out the rubber conduit previously, and when pulling it back through again, I managed to pull it too hard and rip the wire in half completely dry.png so my video wire is spliced together in three pieces all together. Still working though.

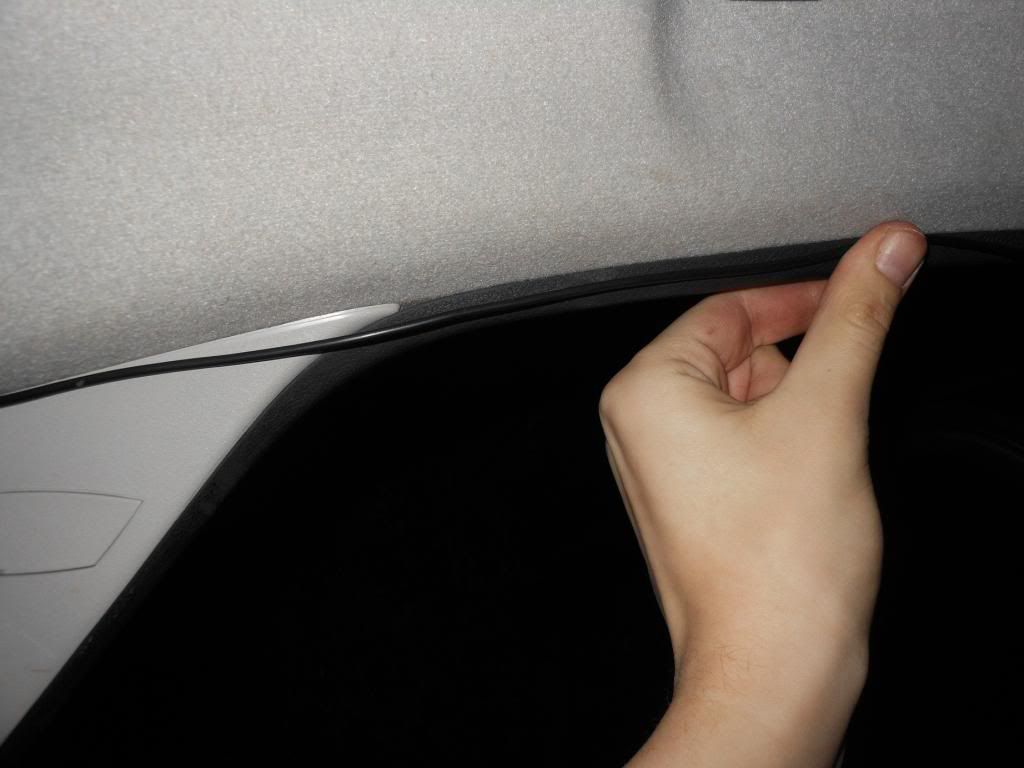

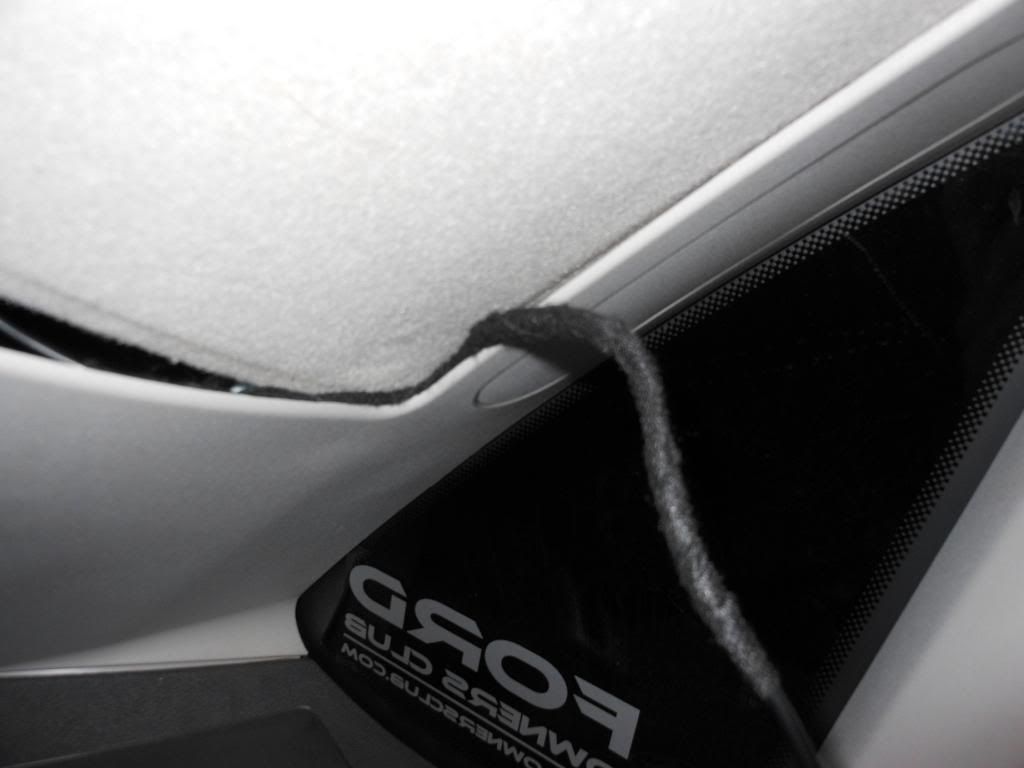

Now for routing the wire around the car, I found a very easy and simple route, is around the door seal. So further removal of the roof liner isn't really required at all making it a nice and easy route



Simply took it in as you go along and you'll never know it's there

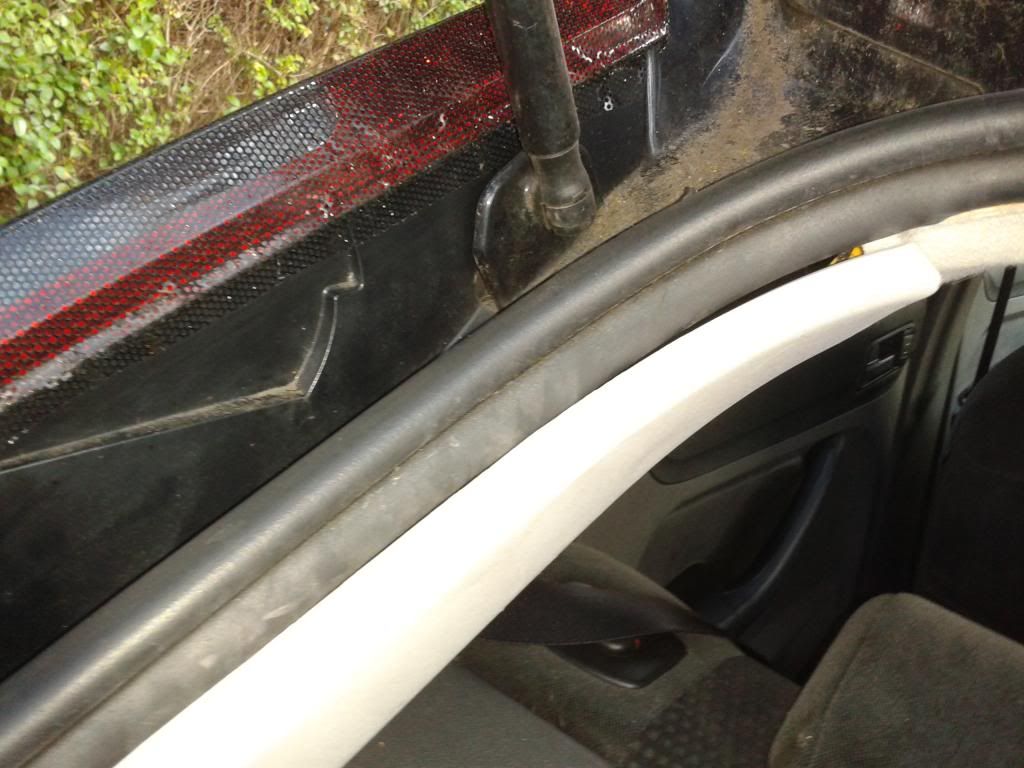

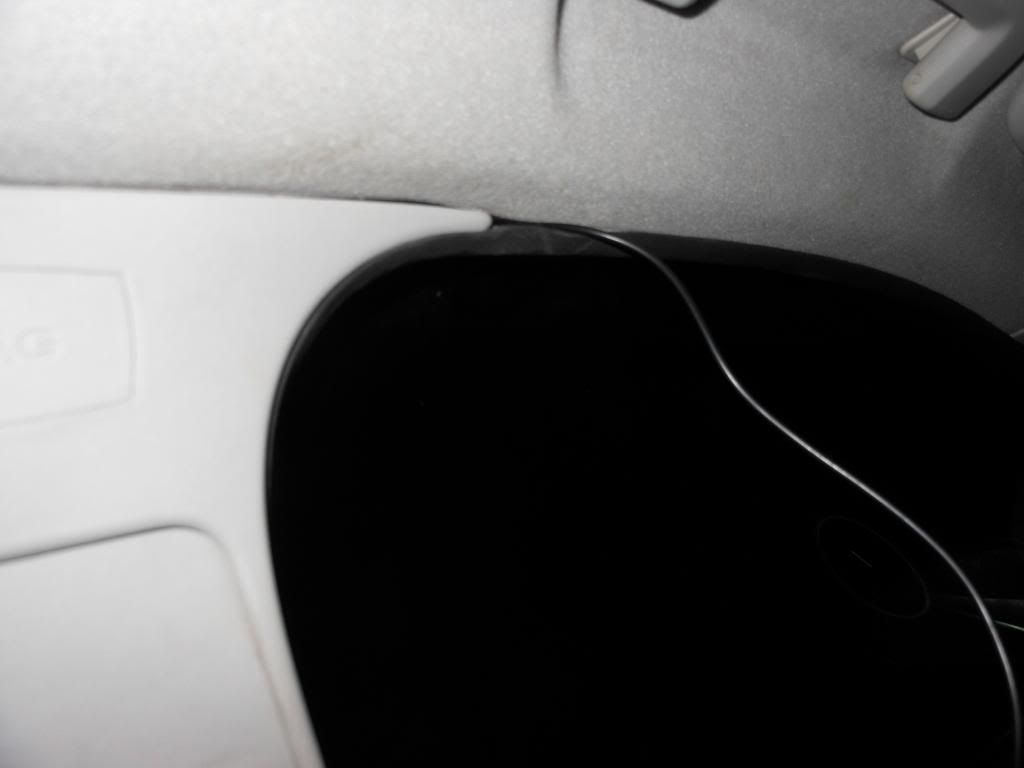

Continue routing it right along the edge of the roof liner tucking it behind the door seals and pillars, then right around the passenger side door seal down to the foot well

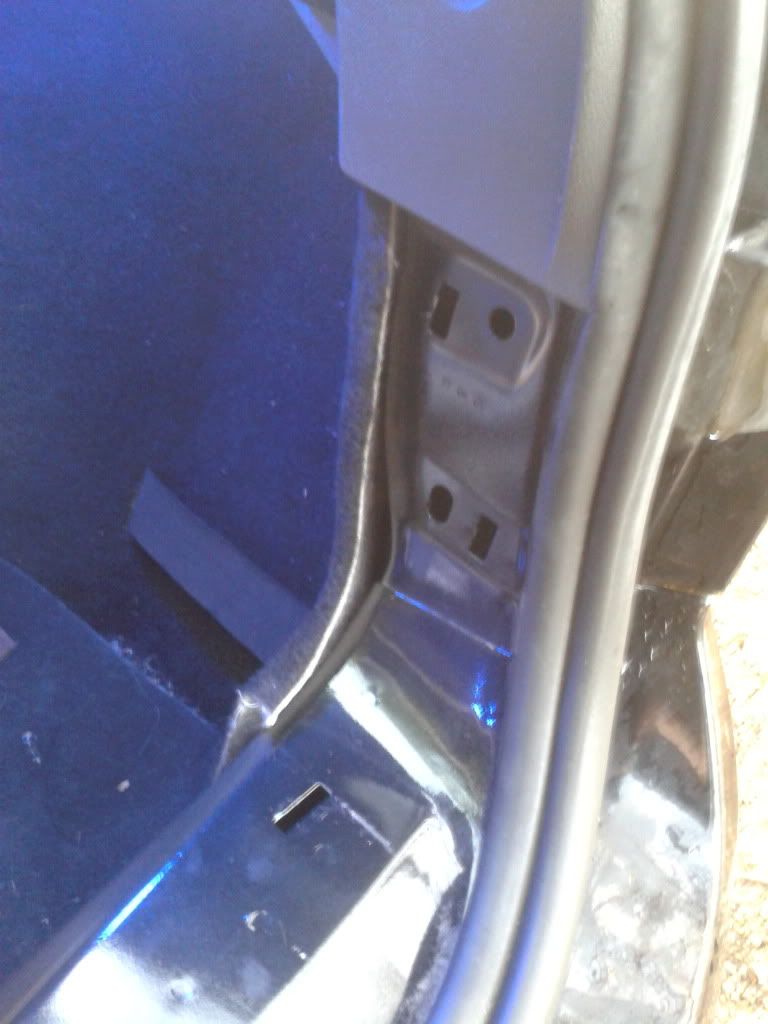

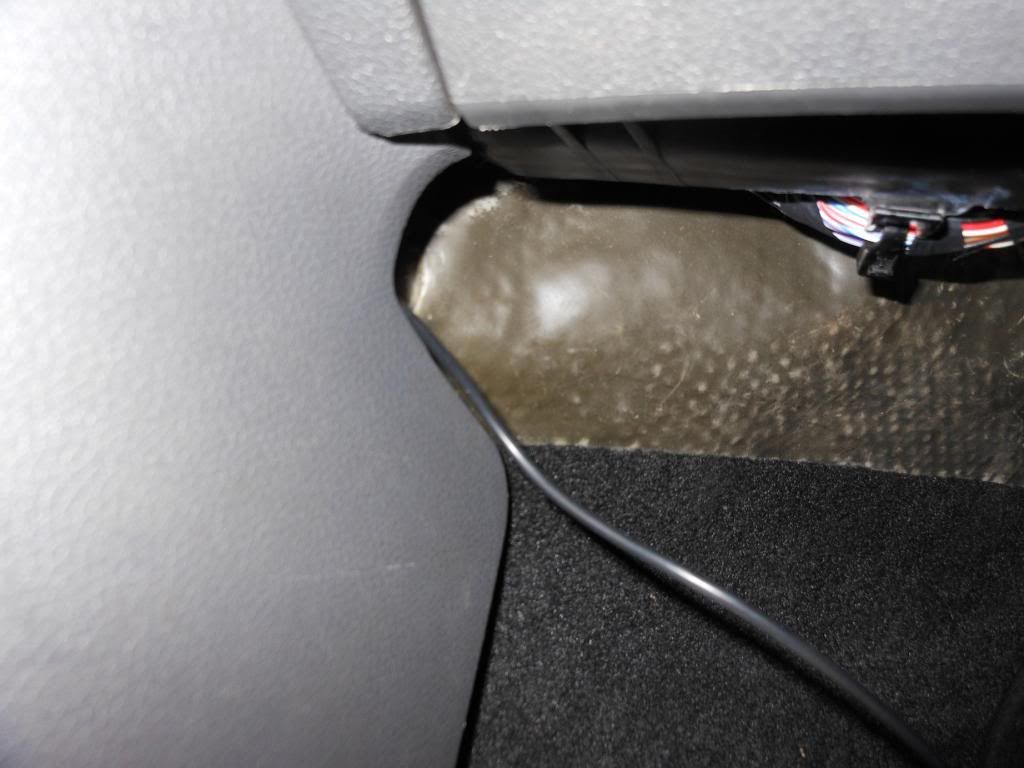

When you get to this point, you need to partially unclip the trim piece, simply grap a hold of it with your finger tips underneath and gently pull away from the car to unclip it



Then you need to thread the wire behind it



And pull it out the other side



Then you can clip the trim piece back in place

Now you need to remove your glove box, so open it, and there is a total of 7 screws to remove

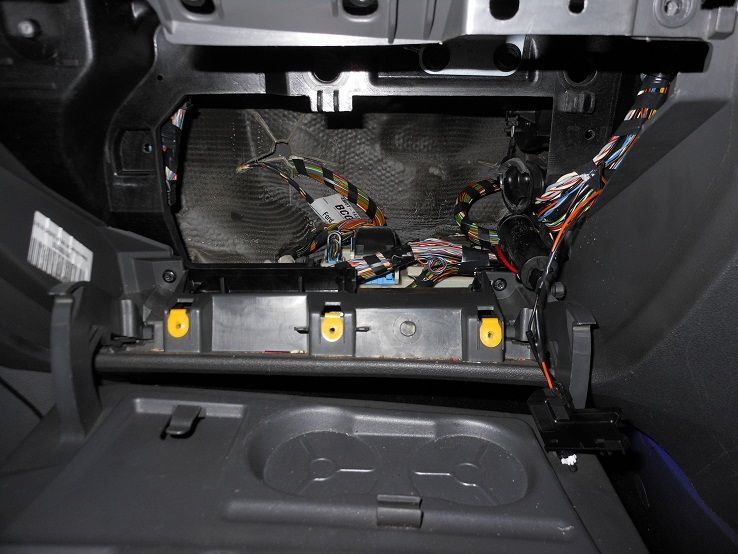

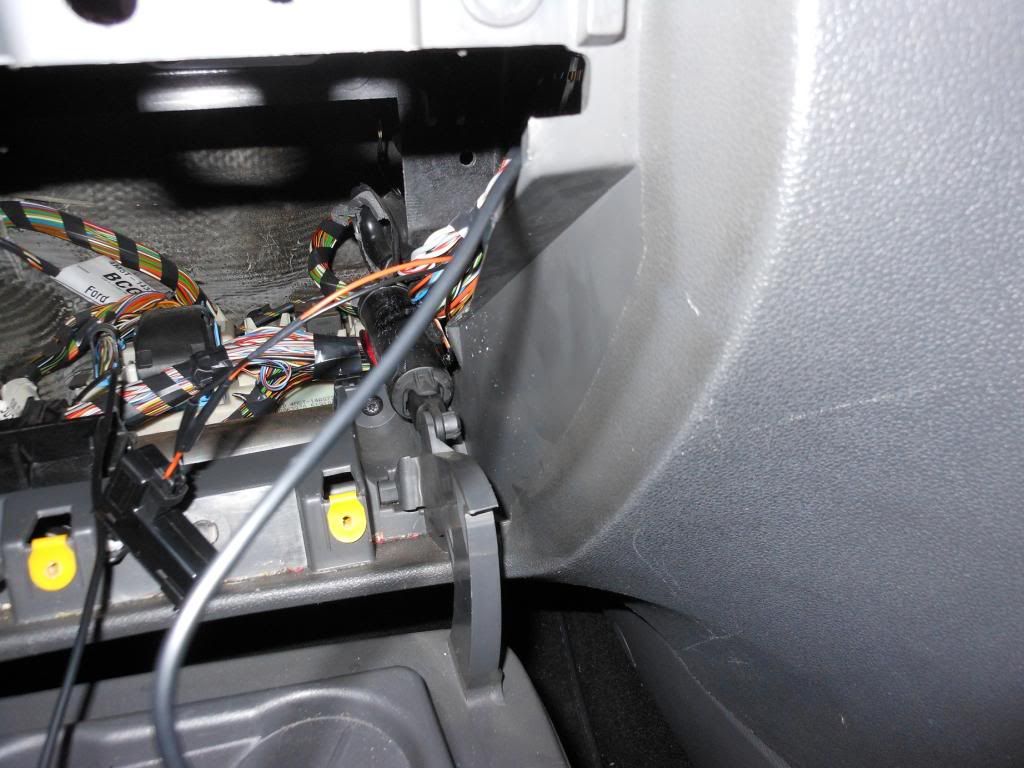

The whole thing will then simply pull out and you will be looking at this

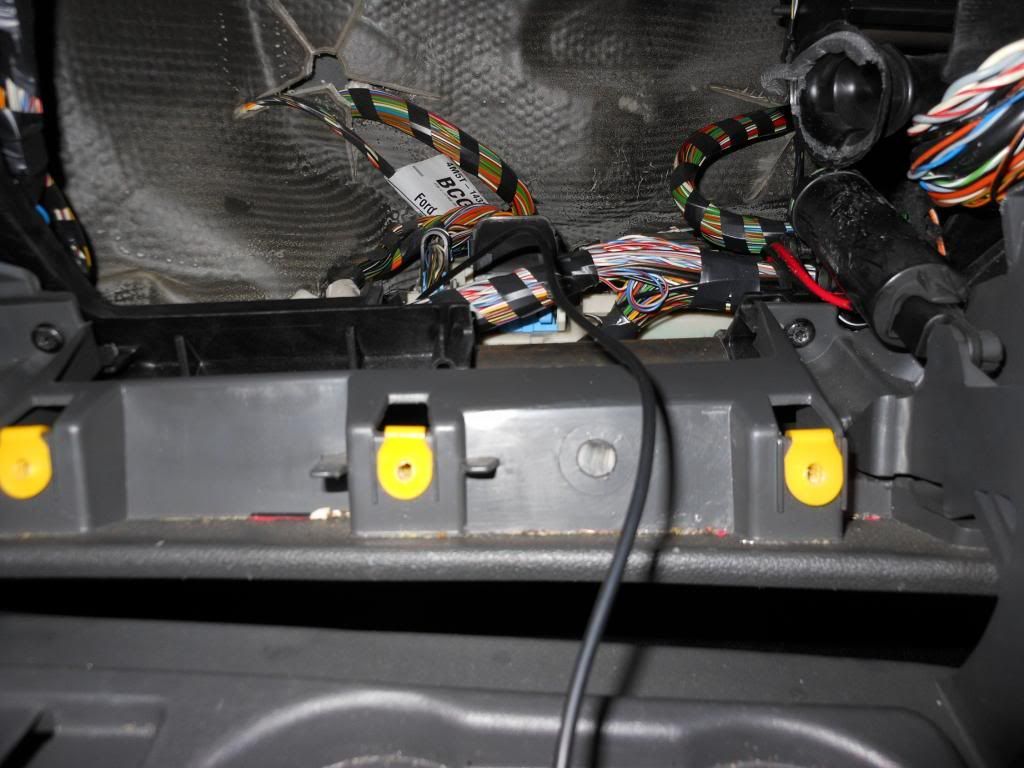

You then need to thread the wire up through a gap and pull it through

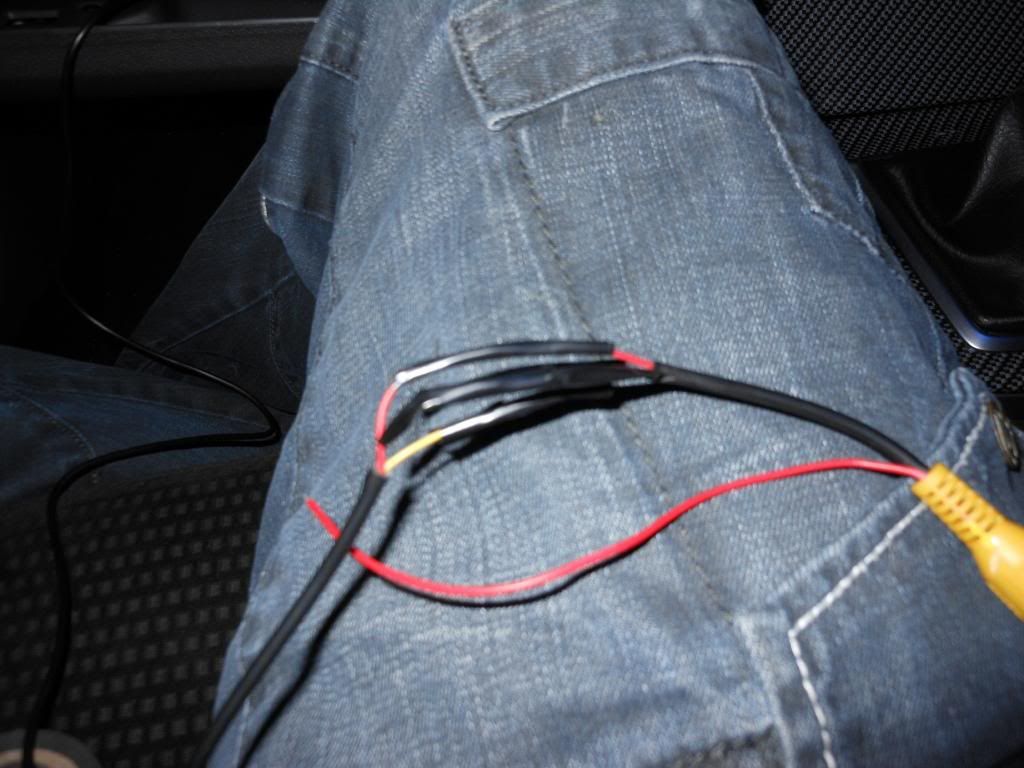

Now in my case, this is when I had to splice the plug back onto the wire

Simply match all the other up and splice the exposed copper wire together



All done

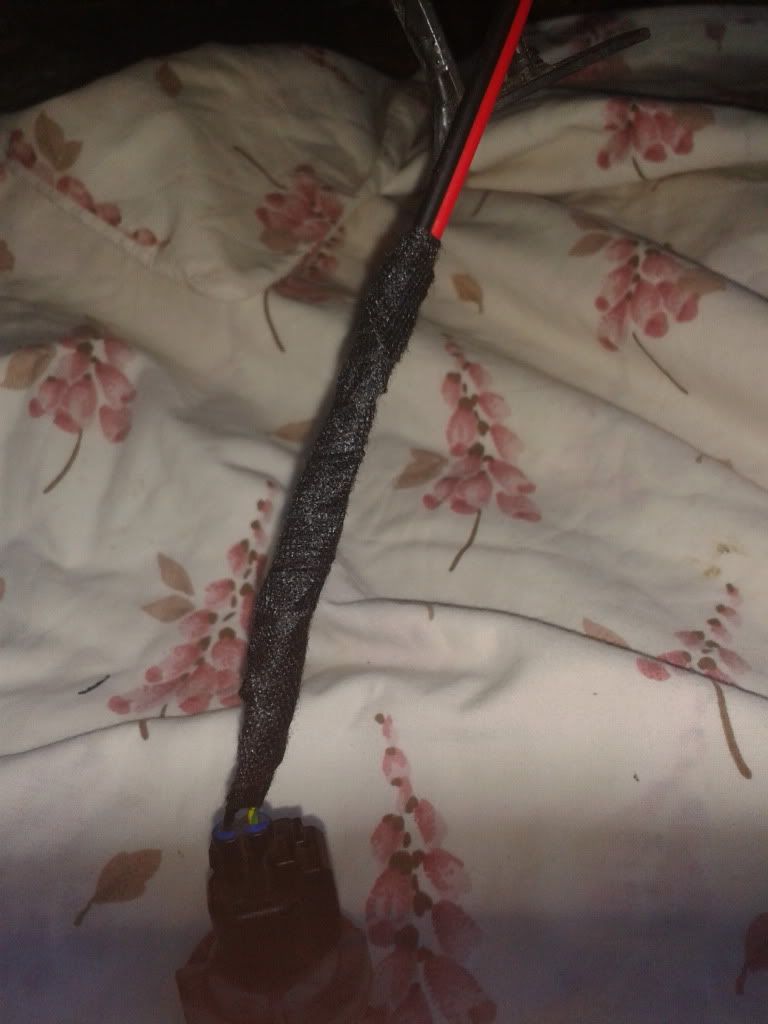

Now wrap in fabric tape

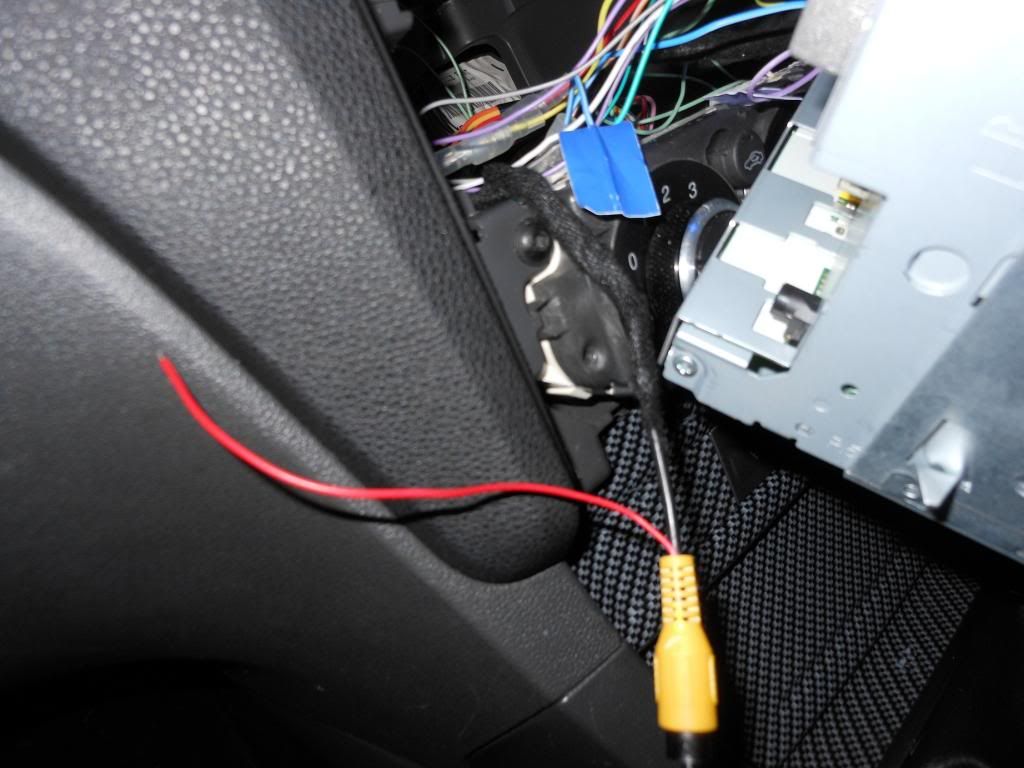

Now you need to remove you head unit, and thread the wire from where the glove box was



And pull it through where the head unit was



Now it's time to go back to the boot

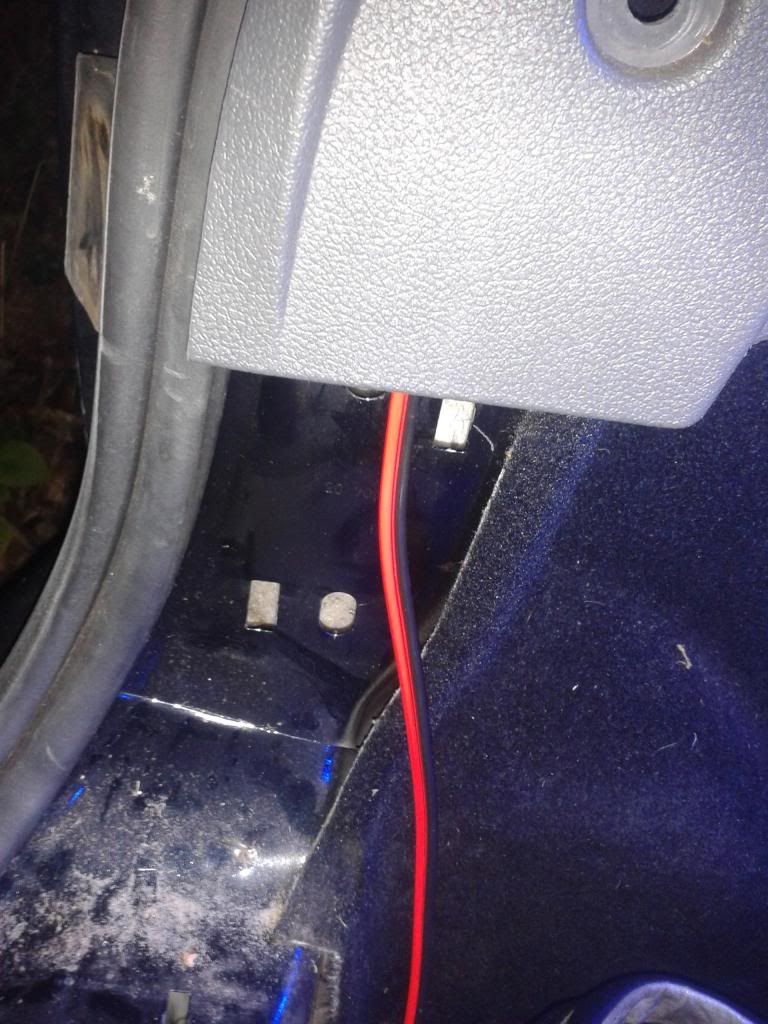

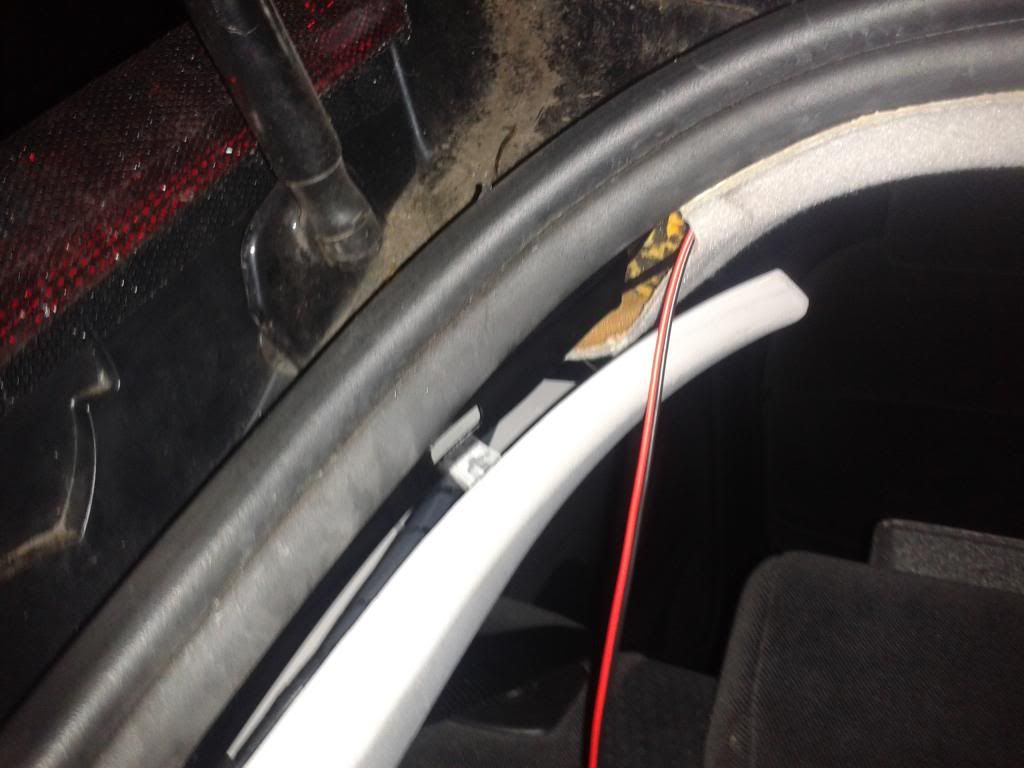

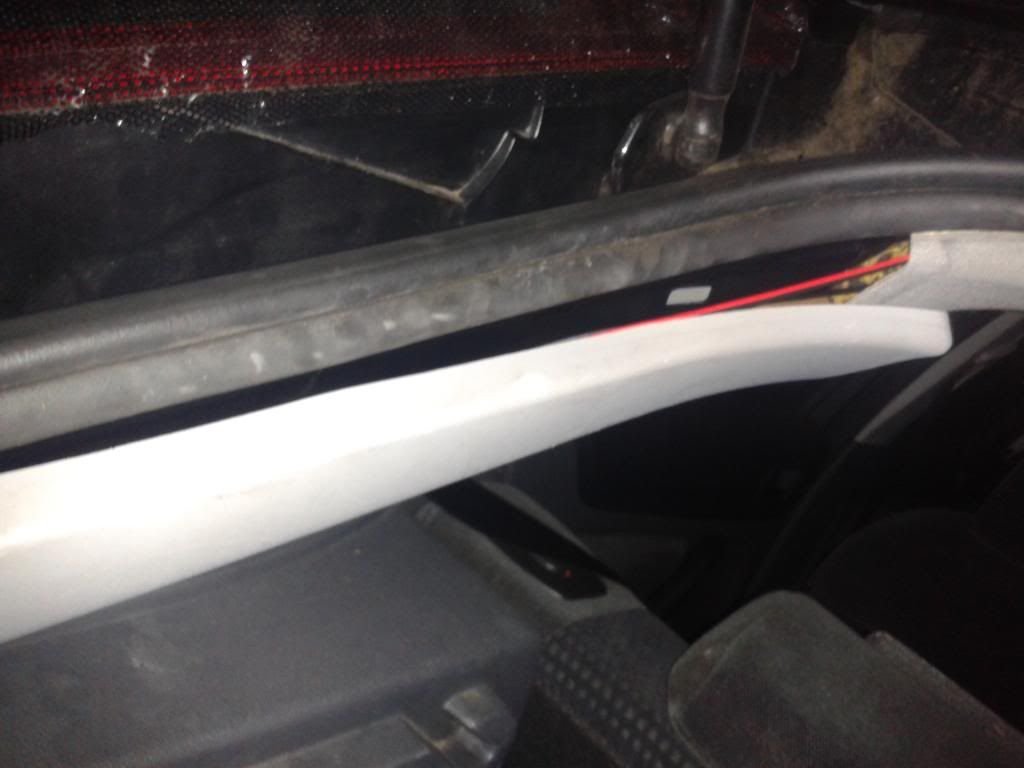

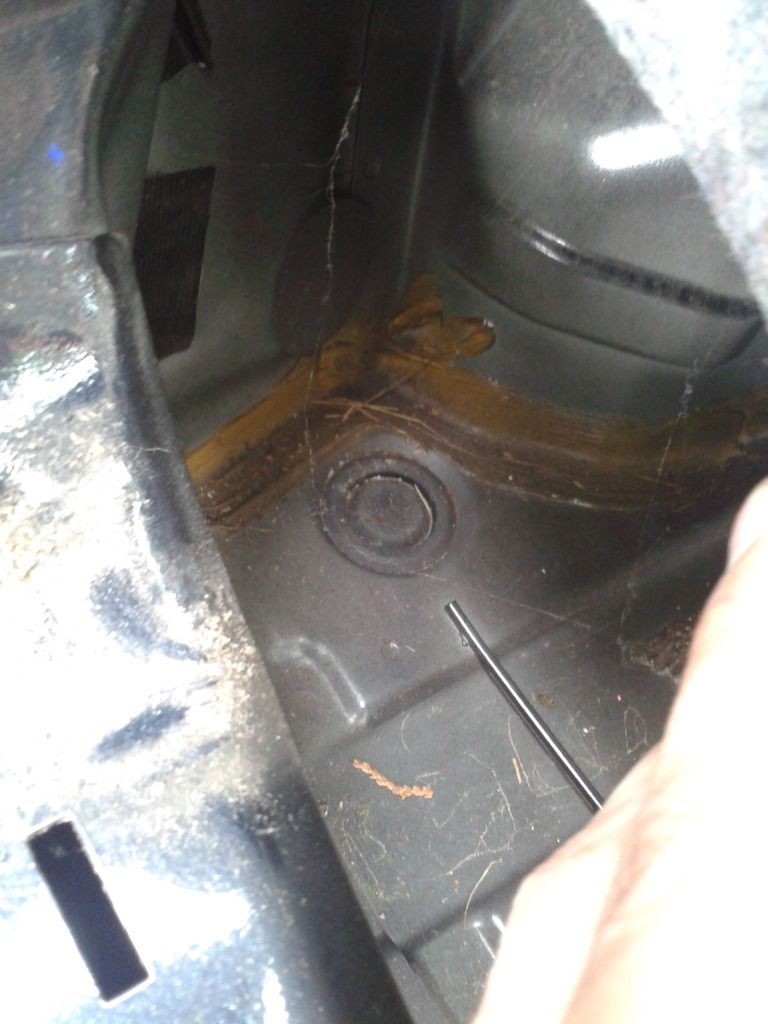

With the extended twin core reverse light wire, Thread it down behind the trim piece





And out the bottom



What I then did was route the wire around the spare wheel well to the other side of the boot, where I lifted up the carpet and located the reverse light live wire among this lot



I removed the black tape holding it all together. It looks like a mass of wires, but it's easy to locate as the reverse light wire is green/orange. There's only 2 green wires in this lot, green/orange and green black.

So the reverse light wire is easily distinguished from the rest.

I looked under the car to confirm this



Crap picture as the flash on my camera distorted the colour lol but it is definitely green/orange

So what I did is splice the earth wire for my camera into one of the 2 earth wires of the mass of wires, then spliced the live wire into the green/orange wire

I then plugged the video wire into the back of the head unit. The camera input should be marked RC IN



At this point I thought my work was over and it was all wired up. I tested it by getting in the car, starting it and put it into reverse gear..

Only to find that it didn't bloody work ohmy.png

Didn't get why as I'd definitely spliced into the reverse light live feed, and it was correctly earthed.

I made sure the wires was definitely plugged in properly and it still didn't work

I then undone the taping on the wires I'd spliced on the video wire in case one had pulled apart, only to find they was all definitely spliced together nice and tight

I had a head scratch, undone the splicing in the boot, routing the wire temporarily out of the boot over the bumper, and spliced into the live and earth wires of the reverse light under the car directly behind the bulb holder



Tested it again, and this time it worked perfectly and the image appeared on the head unit screen, so I knew all my wiring was perfect and the camera was working

I then undone this temporary splice, and spliced it back in the boot. Tested it again, and it didn't work blink.png

I then though maybe I'd earthed it into the wrong earth wire, didn't get how this would matter as they are all earth, but I tried it anyway and spliced into the other black earth wire of the lot. Tested it again and it still didn't work.

This really confused me, so I spliced into it outside of the car again behind the bulb holder, tested it and it worked normally again.

At this point I got really pee'd off and was running out of time and day light, so I taped back up and insulated the wires I'd partially stripped in the boot

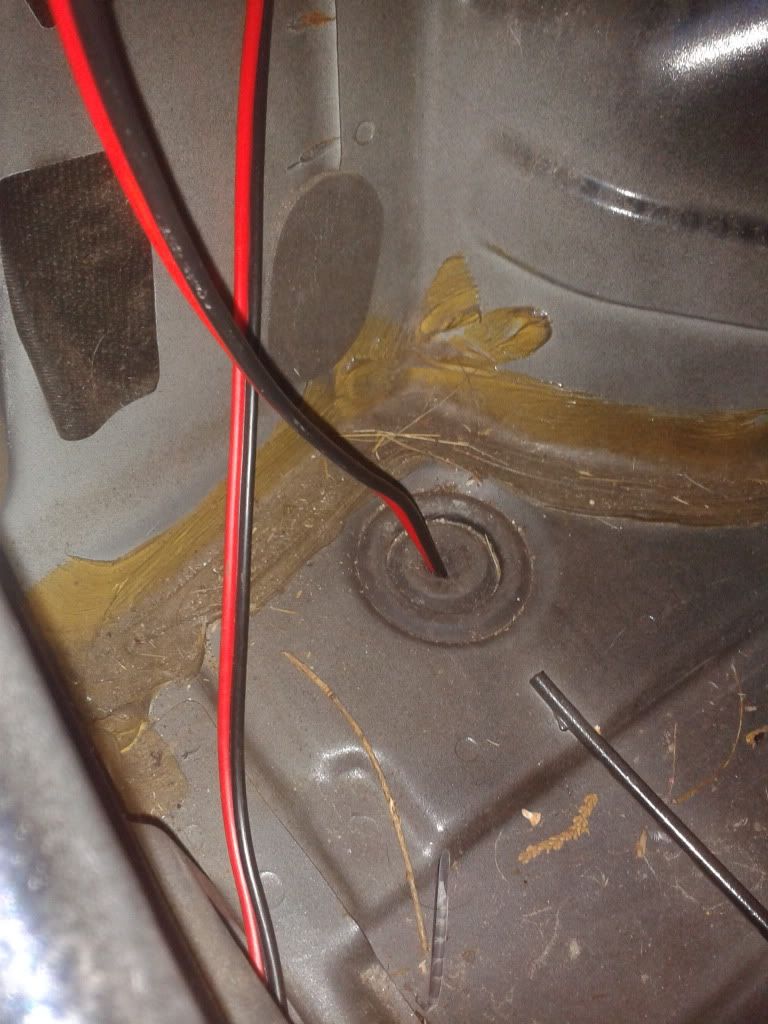

Then located the rubber thing on the passenger side of the boot with no wires going into it



I then pierced a tiny tiny hole in it with my stanley so it's still pretty much water tight, and threaded the wire through it


(the other wire is for my second boot light)

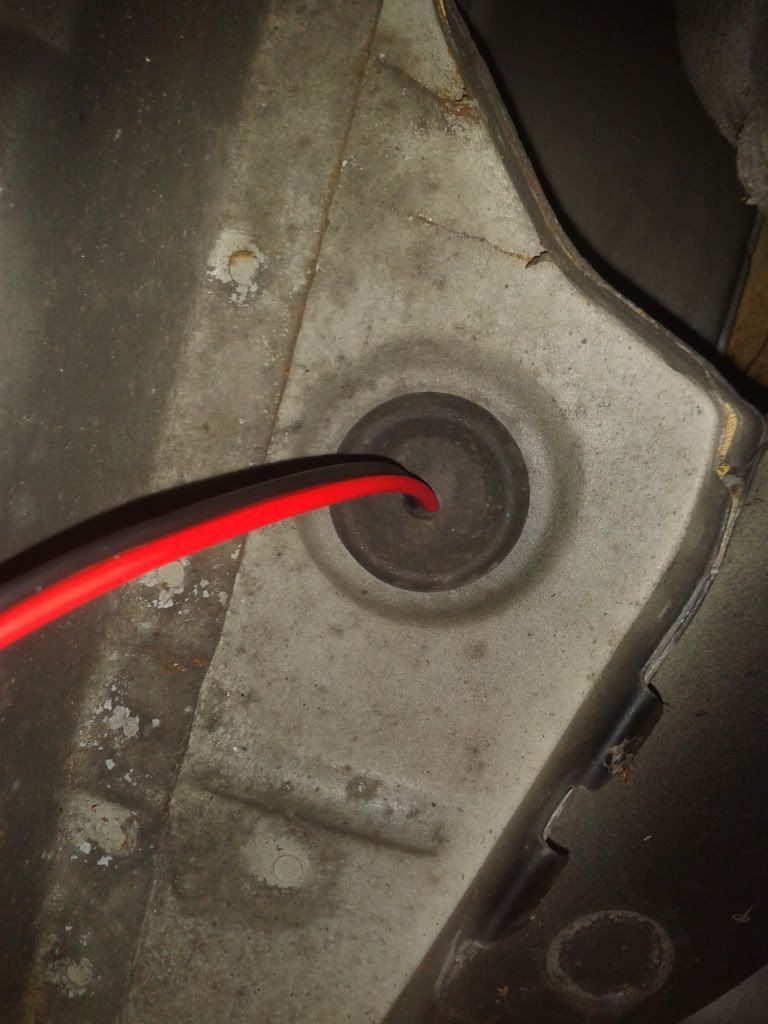

And pulled it through from underneath the car behind the bumper

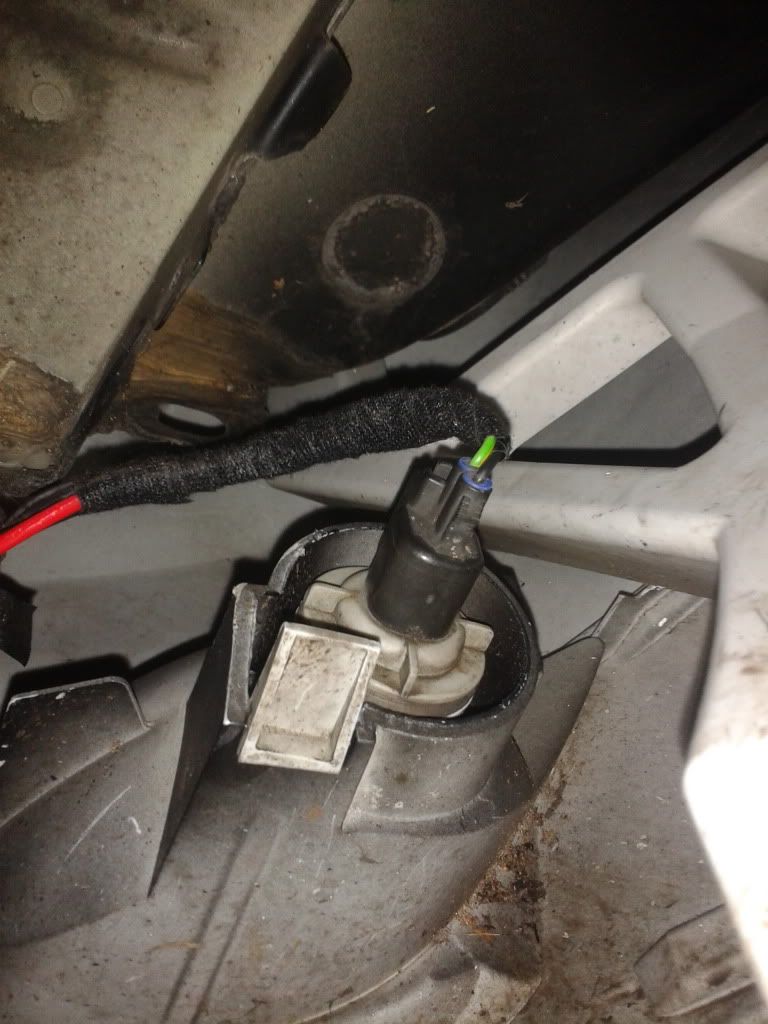

I then spliced the wire permanently into the reverse light just behind the bulb holder



Then heavily insulated with fabric tape



Photo from underneath the car



Finally it's job done so now just refit all trim pieces in reverse of how you removed em

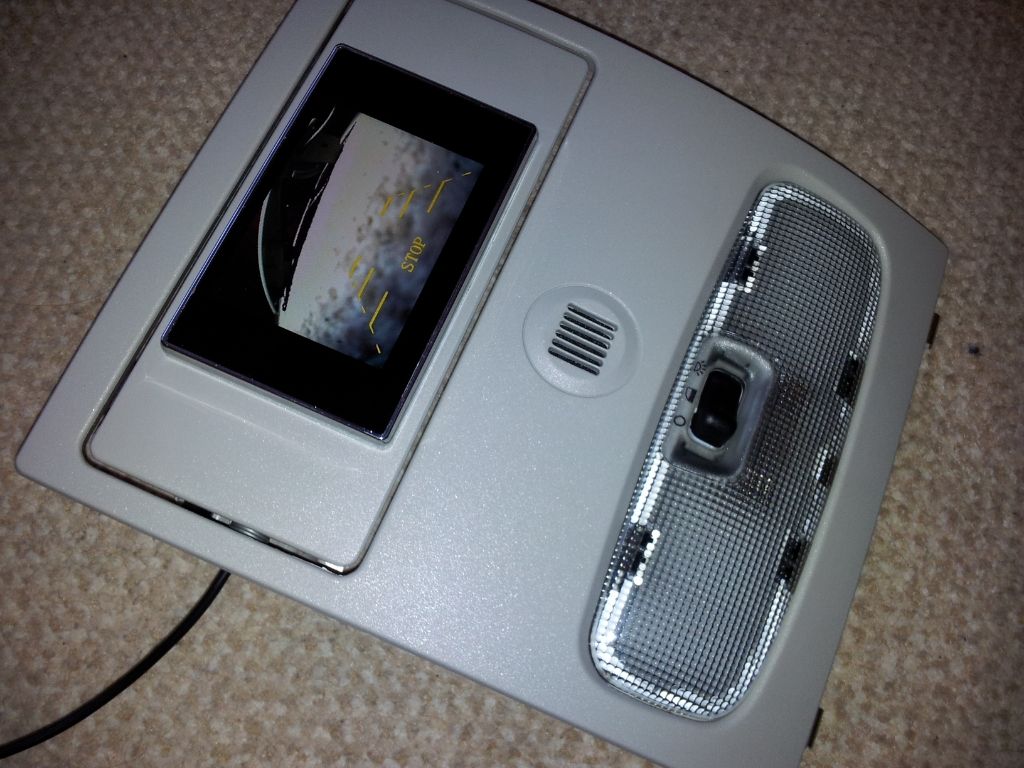

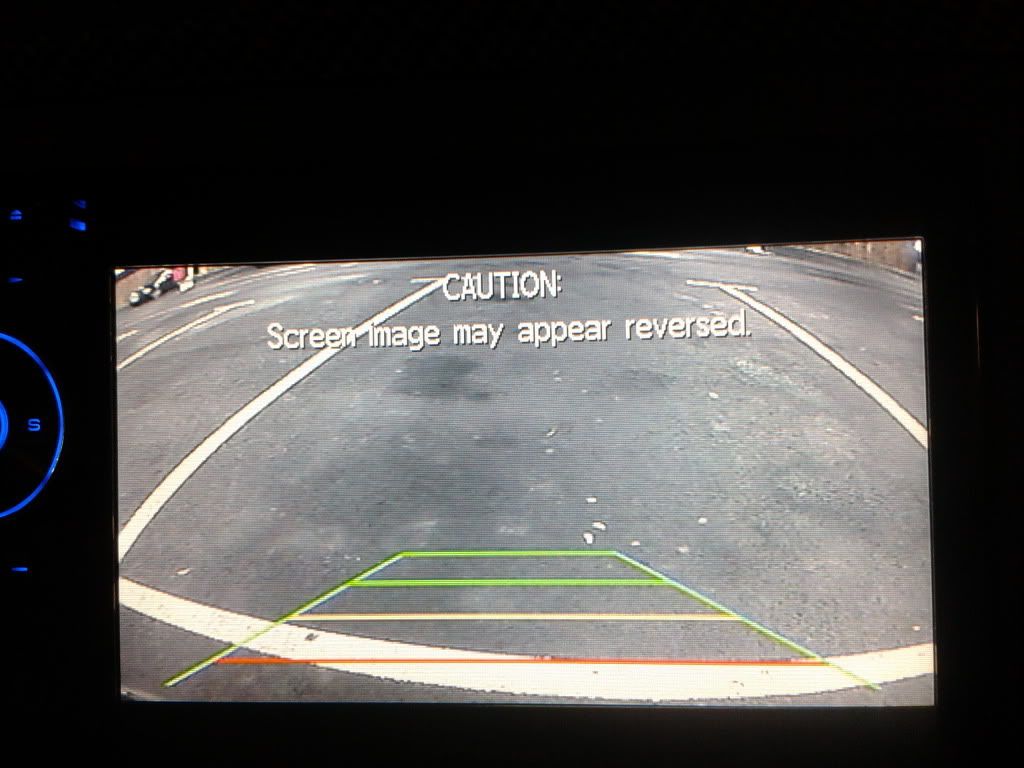

After a lot of work, here's the results of all your hard work



Took this photo in tesco car park after I went to get food in with the Missus

And here's a little video of it in action (night vision so not a very good one)

[media]http://www.youtube.com/watch?v=Gij1mNBx98w&feature=youtu.be[/media]


Hopefully this very long photo heavy guide will be of use to anyone planning on fitting a reverse parking camera.

May seem like a lot of work involved but it's all relatively straight forward


If you need to know how to install an aftermarket touch screen head unit to connect the camera to, see my other guide which can be found in my signature bellow.

Thanks for reading

Stoney871
Jobs a good un!
:)
lazzymonk
Nice work. My only suggestion would be to get a soldering iron and solder all the connections. Twisted wire connections can cause all sorts of headaches down the road.

Oh and heat shrink. it makes a nice water proof connection too.

But still nice work.
liam-20
Good how to I've bought a camera from Hong Kong not got it yet but on the back of your camera how many wires came out of it the one I've bought only seems to have 2 coming out of it??
Brigante
[quote name='liam-20' timestamp='1355501879' post='221127']
Good how to I've bought a camera from Hong Kong not got it yet but on the back of your camera how many wires came out of it the one I've bought only seems to have 2 coming out of it??
[/quote]

Mine has a total of 3 wires coming out of it mate (depending how you count em)

One is a twin core red and black wire, that is'nt connected to the camera itself but to the led number plate light.

Then it's got 2 more wires coming off the camera itsef.

One with a yellow plug on that the 6metre long video wire plugs into.

Then the other wire has a red plug on it that the 1.5metre reverse light feed wire plugs into.

You can clearly see the wires I mean in the guide mate.
Brigante
Bit of an update on the camera.

I have added a bit more wiring, so it's now also wired to a switched live on ignition feed.

So now the camera doesn't only have power when reverse gear is selected, but has a permanant live feed when the car is turned on.

So that the camera isn't permanently on though I have also wired it to switch which I have conveniently installed in the obd pocket for easy reach while driving.

This means not only does the camera automatically turn itself on when in reverse gear, but at the flick of a switch it can also be turned on while driving forward.

For use when visibility out the rear window is reduced like when it's taking its time defrosting in this weather for example.

Or keeping an eye on a trailer if u was towing one. Or if i was to get the back window tinted.

Or even just to see how close some eejit in an audi is tailgating me.

Overall I must say I am very pleased with this new bit of wiring and it really makes the most of having the camera.

If anyone else would like to do this extra bit of wiring so that the camera can be used at any time and not just when in reverse gear I will be able to guide you though it.


I would have took a few photos while doing it but it was gone 11 at night when I got the random urge to do it and the battery was low on my phone so the flash wouldn't work.
gc88
Good work! Looks relatively straight forward!

Do the insurance company charge any more, or does it not need to be updated?
Preee
Brig with your Perm live on Ign , add a relay so that you don't forget and end up with 2 live feeds if you forget to switch it off when selecting reverse. That way if you forget the relay will kick in when reverse is selected and turn off the live feed.
Brigante
Actually Preee mate, If you saw my last post forget what I said lol.

I think I will install a relay.

Be a gent and link me to the type of thing I'd need on ebay please mate? I'll get one orderd soon.
Brigante

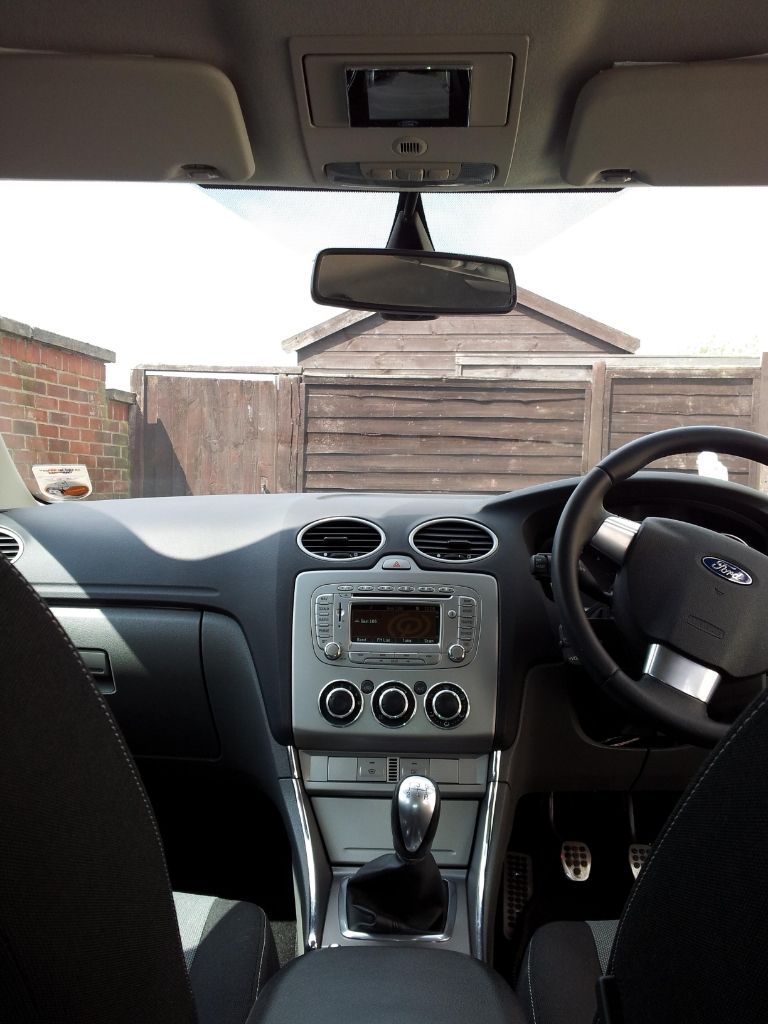

Here's a better day light video of the camera in action using my newly wired in switch

[media='480x360']http://www.youtube.com/watch?v=2QTYfzc1EJc&feature=youtu.be[/media]
(the glare on the screen is from the flash on my phones camera)
Preee
Here is a link to the relay you need , this one come's with wiring harness
[url="http://www.ebay.co.uk/itm/5-PIN-12V-40A-Automotive-Changeover-RELAY-including-WIRING-LOOM-/400292899718?pt=UK_In_Car_Technology&hash=item5d3350eb86"]http://www.ebay.co.u...=item5d3350eb86[/url]

PIN 85 - Live feed from your switch
PIN 86 - separate Earth

PIN 30 - Live feed to your camera
PIN 87a - Feed from your reverse light
PIN 87 - Live Feed from Your switch ( so 2nd Live feed from your switch)

Wiring it like this will , place the 2 feeds on different circuits stopping any chance to Voltage leakage into the reverse circuit which may be whats happening now with your CC.

Pins 85 / 86 are the relay switch 86 being earth once activated this will switch relay between pins 87 and 87a , of which default pin87a connected to your reverse light.

once the live switch is activated , it will activate the relay to switch to PIN 87 (direct power to your camera) and no back feed power into the reverse circuit.
You can loop Live power off the switched live or you can use another live feed.

i would also make sure the camera earth is not connected to the reverse light earth , but to car ground earth.

You will end up with two separte circuits.
If this does not stop the CC from being cut off during rear cam manual activation then , i'm not sure what could be the problem.

ALWAYS - double check the diagram on the relay before following my above guide as some relays are slightly different.
Brigante
where exactly should i place the relay mate? like where in the dash that would make for the easiest wiring
Preee
[quote name='Brigante' timestamp='1355947326' post='222063']
where exactly should i place the relay mate? like where in the dash that would make for the easiest wiring
[/quote]
that would depend on.
Where have you made the connection for for the switch to the camera ?

if it's in the boot then the relay can go in the side panel of the boot.

If it's near the dash then you can place the relay behind the dash.

But i would find direct earth points for the camera and the relay.

Only use the live from the reverse light and split the live from the switch , one for the action of the relay and the other live feeding the camera on pin 87 , that way when you select reverse it will go straight through pin 87a and activate the camera , and when you use the switch it will switch power to pin 87 and remove power from the reverse feed.

This way , two seperate circuits and neither one can can upset the other even if you select reverse while you have the switch turned on.

The way you have it now , it could be sending power down the reverse circuit and if you double that up by turning the switch on you could damage either the camera or the reverse circuit.

like i said you can test this by removing the reverse circuit including the earth connection and going out for a drive , then test your CC . It your CC stays on then you know the relay will work.
But i would go the relay way anyway due to the fact of two possible live feeds hitting the camera.
Mike77
Firstly, what the hell are you listening to haha. Mine is all up and running now, but my camera doesn't have that weird grid thing yours has lol. I'm not happy with the fitting kit surround that I got, its very cheap, others say it looks fine, bit I'm already planning to replace it with the one piece fascia that incorporates the holes for the heaters etc. The radio itself is great, call quality from the Bluetooth is great, auto connects within 10 seconds of getting in the car, will also stream music from my phone through Bluetooth. Sound quality is much better than the standard unit, also fitted my sub seeing as i had most of the car apart lol, so now have bangin tunes. USB works great, and even plays movies through that :-) will upload pics from my USB, and I can then use them as backgrounds for the headunit. Removable front is bulky, but puts my mind at rest with all the low life scum about that wouldn't think twice about thieving it. All in all I'm very impressed with my work, and the units capabilitys.

In your video, is your unit fitted or hanging through the back of the dash, I know you said something about a dummy front being used, but don't think my OCD would let me live with that lol.
Brigante
:o don't tell me you ain't heard of the black keys mate!? They brilliant.

I think the grid on my camera is good mate, helps you judge how close you are and when to stop reversing.

By the fitting kit surround do you mean the fascia adaptor mate? Yup i admit mine looks cheap, but i need it to be able to mount my faceplate to it using velcro lol, so i aint bothered how it looks if it stops me stereo getting knicked. I can always paint or hydro dip it anyway.

Too be fair i'm really not fussed about not having bluetooth, i've neve used it so i'll never miss it lol. I'm happy with having me music on a diddy usb that sticks out the front by about 4mm so it would never bother me or get in me way.

Must say in terms of sound quailty the built in amp is brilliant, really gets the best out of the stock speakers n watching a film is like sitting in the cinema.

I can set photos as the wallpaper too but havent bothered yet.

Even though you have the removable faceplate, you still may wanna think about a dummy faceplate also mate. As savvi scum will see you've removed it, and immediatly know its expensive enough to have a removable faceplate, so theres still something worth knicking in the dash.

So they'll still nick the bulk of the stereo out the dash, then stroll into halfrauds n lift a faceplate of a display model.

When you say fitted or hanging out the back, are you on about how its not flush with the head unit surround?

As yup its fitted, but what i've done is trim a bit of the edges of the back of the fascia adaptor. So that it sits about 2-3mm deeper into the head unit surround. By doing this, when the dummy face plate is in place, the dummy head unit sits flush in the head unit surround. So that it does not randomly protrude out the surround further than it should n make it obvious its just stuck on
Mike77
Yeah, i thought it looked a little futher back than it would normally sit. I already wrapped my 2 plastic surround bits, but the bigger of the 2 comes away slightly on the bottom right, were the useless clips they supplied won't grip the console hard enough. Then the finishing trim, it has little teeth to hold it in place on each corner, I did a test fit, but on removing this, most of the teeth wore away. Terrible quality. All the wiring was great, if not a tad to long for what was needed. And as stated earlier, it was a nightmare finding somewhere for it to live grrr lol. Gonna search eBay and see if I can find one of the other fascias to do away with this one soon.
Brigante
Are you sure you have the head unit/cage positioned as good as it could be?

As when i first fitted it the fascia kept coming out at the corner. But it was actually from the head unit not being wegded in perfectly.

I just kept playing about with the position and wedged it in n eventually the fascia adaptor seatd beautifully.

The metal clips hold it in fine, if anything a bit too well as i couldnt get the bloody thing back out n ended up snapping 2 of the clips off in the process
Mike77
Yeah its deffo in as good as its gonna get, its not gonna go anywhere, but looking at it, I'm not impressed, like I said, others can't find fault, but my dam OCD is saying it would look better with the complete fascia rather than the adaptor surround which is in there now lol.
Brigante
Nah i do agree mate, i'd rather have the proper head unit surround with an actual double din sized hole in it so there would be no need for the fascia adaptor.

But i wouldnt be able to mount my dummy head unit to it so i'm sacrificing a bit of asthetic looks for piece of mind that it won't get nicked.

I know its not to your liking but i actually think it was a genius idea me trimming the fascia adaptor so it sits in a few mm deeper.

When i get round to it i'm gonna redip all the dash pieces (head unit surround etc) in a darker base colour to look more like carbon, so when i do i'll dip the fascia adaptor too so it'll all be the same colour n blend in better.

If you want i could always dip some parts for you too if you don't like the look of the wrap lol
Mike77
Thanks very much for the offer mate, but I actually lo e the look of the wrap, especially when I managed such a goof finish first time haha. The idea of the new fascia has been strengthened by the fact that were the new surround sits, then the radio being shoved in, has actually started to slightly push the carbon wrap in a couple of corners on the actual dash/radio surround. So it just won't do, and a new one will be ordered and wrapped accordingly lol. Also going to research if its possible to wire the camera without a switch so I can use it while driving. Use of a relay will be incorporated somewhere. Just want it to act as it should in reverse, but be able to select camera on the unit while driving and have it operate that way.
Brigante
I'm trying to suss out a new way of wiring the camera up to be used while traveling forward too.

I thought by wiring it to a perm live on ign feed but having the camera turned off in the menu might be enough, but it wasnt as even if the cameras turned off in the menu, the camera was still permanantly on.

Which was why i added the switch to cut the power from the perm live.
Davinder Sangha
Hi, just hijacking this thread. I have a Fiesta, but the principals in installing seem the same. My problem is that my camera has an extra set of wires.

http://www.ebay.com/itm/FORD-Fiesta-Car-Backup-Parking-Reverse-Reversing-Security-Rear-View-Camera-/190664950248

So, instead of a video connection and red power connection. It also has another power wire which is open ended.

I did actually test the unit with a 3 pin plug charger and it worked fine, without the need to connect the extra exposed wires to any power.

I'm going to give it a go again and splice some of the wires coming out of the car. The wires coming out of the car are two wires connected to the light (orange/black and black) plus there is an unused one which is also orange/black.

Any help is appreciated.
Brigante
What wire are you on about exactly? Looking at the pictures it has the correct 3 wires.

So going by your post i'm assuming your asking about the power cable for the number plate light?

If so, i explained in detail in the guide how to connect this wire, in fact its the first wire i showed what to do with.

You simply need to unscrew and remove an existing number plate light, and splice the new power cable into the existing number plate power supply as i did in my photos
vince_13

hi brig



hopefully you might be able help me



ive bought a similar reverse camera to yours, however mine is wireless (trans from the boot recvd at the dash)

i fitted it to the boot, usng a number plate light, spliced the old wiring for the led and also spliced the same light wiring for the power to the transmitter (subsequently the camera only opeartes when the side lights are on, that the boot done



now to the front, all i needed was a 12v feed, i took the yellow 12v and the black grnd for the stereo to power the receiver,



now the problem is the camera operates when NOT in reverse, when i go into reverse i get a black screen when it should show a display



what socket did you put the yellow connector into? mine is currently in AUXin as it doesnt work in CCDin



any thoughts?

Brigante

alright vince mate



going by what you've said, none of it is actually connected to reverse gear so the head unit doesnt have any way of knowing when reverse gear is selected





dunno about yours but on the back of my head unit theres a socket marked rc in, this is what the yellow connector goes into



also my wiring loom theres a wire labeled reverse gear signal input, this wire had to be connected to the reverse light so that the head unit knows when reverse gear is selected

vince_13

hiya brig



figured out the problem now, its all down to power, what i had orignally done was wired the supply for the receiver in parallel to the cd player supply, this meant that when ever the cd player was on the receiver was giving the HU a input signal, hence why only a image would show up and you couldn't do anything else, once we realised this we knew we had to find a supply from a source that would be switched live, we couldn't find any, so we decided to try the reverse light, we found the wires behind the boot carpet on the side and spliced into there and boom everything working



so soldered everything back in and now works perfectly,



lesson learnt ... don't try cut corners, do the job properly in the first place haha :D

Brigante

hiya brig



figured out the problem now, its all down to power, what i had orignally done was wired the supply for the receiver in parallel to the cd player supply, this meant that when ever the cd player was on the receiver was giving the HU a input signal, hence why only a image would show up and you couldn't do anything else, once we realised this we knew we had to find a supply from a source that would be switched live, we couldn't find any, so we decided to try the reverse light, we found the wires behind the boot carpet on the side and spliced into there and boom everything working



so soldered everything back in and now works perfectly,



lesson learnt ... don't try cut corners, do the job properly in the first place haha :D



Lol yup would help wiring the reverse camera into the reverse light :D



Glad you got it sorted n working now mate

Nickster

Great guide brigante ,

Just received my rear cam and hope to follow your guide this weekend . Bought a 3.5 inch lcd screen to view it on . Have pulled that to pieces already and fitted it into a mondeo sunglasses holder . doesn't look to bad so far :)












Stoney871

Very nicely done custom installation, ingenious and practical indeed.

Well done there Sir.

Brigante

Great guide brigante ,

Just received my rear cam and hope to follow your guide this weekend . Bought a 3.5 inch lcd screen to view it on . Have pulled that to pieces already and fitted it into a mondeo sunglasses holder . doesn't look to bad so far :)














Very nicely done custom installation, ingenious and practical indeed.

Well done there Sir.



agreed with clive, certainly a nice custom job you've come up with there



you should have less wiring too as it isnt going into a head unit

Nickster

Very nicely done custom installation, ingenious and practical indeed.

Well done there Sir.



Thanks very much mate , pretty chuffed with it so far and sunglasses still fit.. bonus! . LCD has 2 inputs so am going to mount a front cam in the lower grille if all goes well .

i'm a noob at this here and don't want to hijack brigante's great thread on the cam install so will hopefully have a go at doing a guide when its all sorted .

Nickster

agreed with clive, certainly a nice custom job you've come up with there



you should have less wiring too as it isnt going into a head unit





Thanks again for the guide brig and the nice comment. it was a bit wafty cutting the roof lining!



yep , hoping that once I get the cam cable through the boot door that I can somehow drag it across the roof lining to the screen . Not sure how i'm going to route the cable front the front one yet though as I don't know where the bulkhead grommets are

Stoney871

I believe the grommet is under the passenger side footwell behind the internal Fusebox.

Brigante

why do you need do anything with the bulk head?



the wiring route should be a lot easier for you as your screens in the roof lining so the wire has no need to go into the footwell like with my route



instead you just need to follow my guide for actually mounting the camera to the tail gate n getting it into the car, then follow my wire route along the edge of the rooflining behind the door seals, b pillar etc



but when you get to the top of the passenger door way, you should be able to pull out your courtesy light and thread the wire from the door way across the roof lining and out through the hole in the middle then connect it to the screen

Stoney871

Routing of a front camera.

Nickster
Cheers brig , will follow those routing instructions .
Stoney's right , I'm also going to mount a camera in the front grill and there's a grommet I need to go through behind the glovebox area
Brigante
Ah ok yup you'll need to do that then lol

Didnt realize you wanted to mount a front camera too

Its summin i've been meaning to do too

Just need to get round to getting the extra camera and sussing out a way of wiring it in cause i've only got one camera input on back of me headunit
Nickster
Got the rear cam fitted and wired up , works really well .

Made a bit of a boob with the front cam lol! , fortunately I tested it before fitting and realised I bought a rear cam for the front so everything was back to front and no option on the lcd to reverse the image. So if your fitting a front cam look out for ones that say non-mirror. Oh we'll , egr valve plate and drl fog surrounds came today so got something else to play with this weekend :)
Brigante

got any photos of it all up working dude?

adder360

my reverse camera and sensor screen




Nickster

got any photos of it all up working dude?

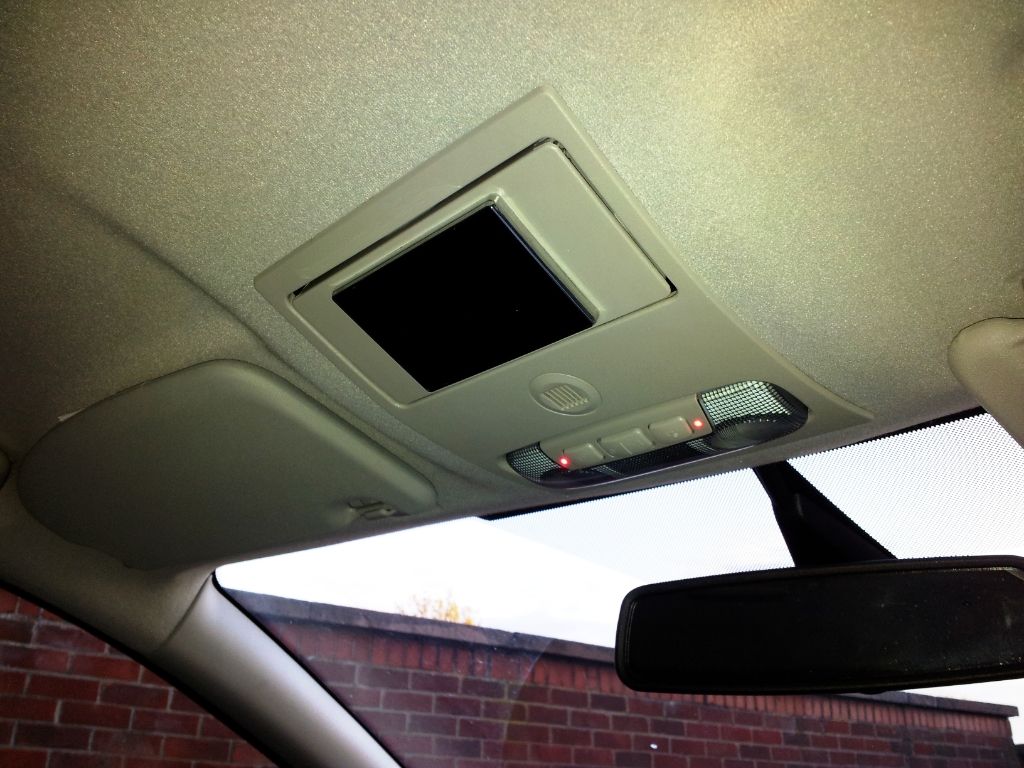

 'ere you go mate , Almost done apart from I need to change the power wire to the lcd . its currently tapped in to a thin yellow/green wire on the back of the head unit . waiting for a piggyback fuse to come so I can wire it properly to the acc .








Brigante

 'ere you go mate , Almost done apart from I need to change the power wire to the lcd . its currently tapped in to a thin yellow/green wire on the back of the head unit . waiting for a piggyback fuse to come so I can wire it properly to the acc .








dunno if your still about here mate but i've just bought the same mondeo unit as you



how did you go about fitting it? like did it fit in easy enough cause i'm looking at it n thinking it'll be too long



did you cut the hole bigger straight back from the existing hole if you get what i mean? or did you have to cut the existing hole further forward to mount the unit further forward?

Nickster


dunno if your still about here mate but i've just bought the same mondeo unit as you

how did you go about fitting it? like did it fit in easy enough cause i'm looking at it n thinking it'll be too long

did you cut the hole bigger straight back from the existing hole if you get what i mean? or did you have to cut the existing hole further forward to mount the unit further forward?


Still ere mate!

It's not too bad to fit but you gotta be careful..

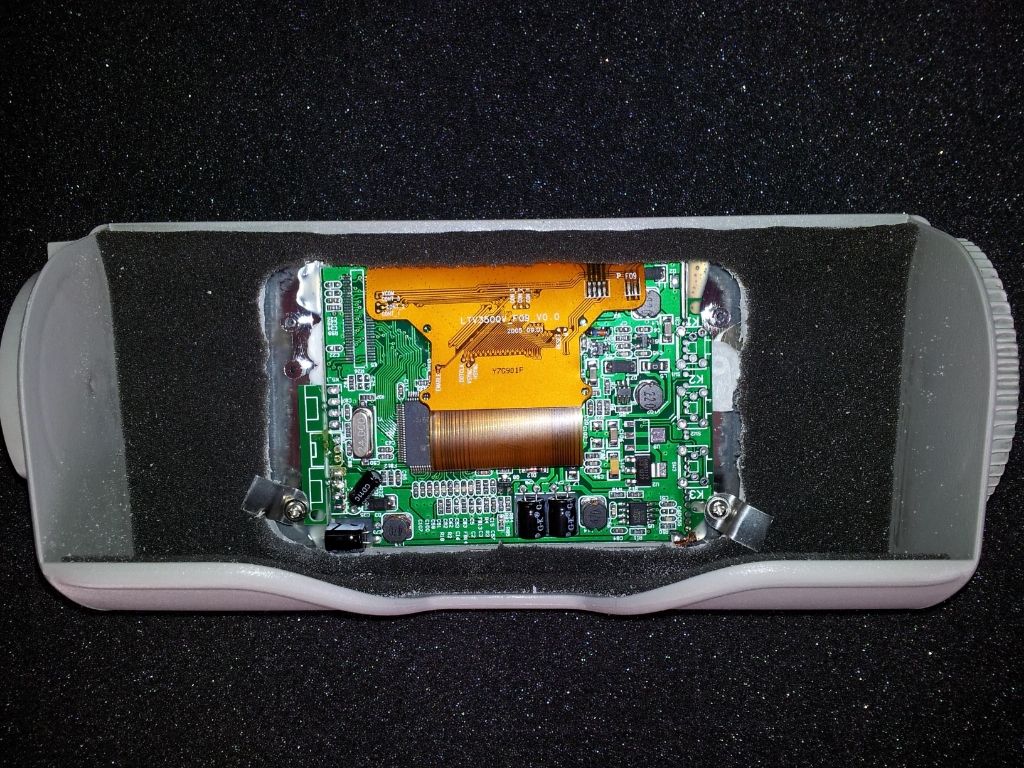

You do need to do a bit of cutting . First I took the black 'back box' and light unit out of the sunglasses holder so you just have the grey plastic surround , next I took the old unit out of the headlining . Then I slid the front of the mondeo unit in place (think I had to open the front clips a bit) it needs to go as far forward as possible but be careful as i pushed a bit too hard and slightly creased my headlining.
Once I'd got that far then I just measured how far back I needed to cut and marked it on the headlining.
Be really careful when cutting as I had a loom taped right where the cuts go so have a feel about in there before you do.

The sunglasses end is a real tight fit as the headlining is too thick so it also needed a bit of the foam backing trimming down . If you don't trim enough off you can't clip the backbox back on the interior unit .

Hope that kinda makes sense and good luck . I think there was a great fiesta guide on here somewhere but I can't find it now
Nickster
Found it ...

Sunglasses holder thread , all credit to les for it

http://www.fordownersclub.com/forums/topic/13082-mk7-fiesta-interior-light-with-sunglasses-holder/page-4
trikidy

What car did you fit this on?

trikidy

Cant find a camera that fits my car!

http://i.imgur.com/jUT1cS2.jpg

ktm2009

why cant i see any of your pics mate.could do with a hand

stevegtuk

Cant find a camera that fits my car!

http://i.imgur.com/jUT1cS2.jpg

try find the one that closest fits, preferably bigger than you need, then you can just trim it to fit.

trikidy

UPDATE-



I removed the stock light and cut a whole just big enough for the camera I ordered, I then melted the plastic around it so it became one piece (also had to trim the camera)

http://www.ebay.co.uk/itm/330659894130?ssPageName=STRK:MEWNX:IT&_trksid=p3984.m1439.l2649



I believe that is the one I ordered.



Anyway now my camera is all fitted :) for some reaso it wouldnt work on my head unit so i ordered a separate screen.

I have since got replies from sellers and I have been told the nearest fit to my car is this camera-

http://www.ebay.co.uk/itm/260900427232?ssPageName=STRK:MEWAX:IT&_trksid=p3984.m1423.l2649



So for anyone with the same car as mine it might be easier to order this one and see how well it fits!



Thanks guys

mikeol

Some good advice here but has anyone fitted a similar camera to a Fiesta Mk 7 (2013). I can't see a straightforward way of routing the wire from the hatch down to the reversing light. I can see I will have to remove the hatch trim to get to the wiring but getting behind the hatch metalwork to reach the rubber conduit looks too difficult. My camera setup uses a wireless system so I don't need to reach the front of the car with wires. Any advice appreciated.



This is a "lo-fi" version of our main content. To view the full version with more information, formatting and images, please click here.
Invision Power Board © 2001-2014 Invision Power Services, Inc.
