quick question lenny those square shapes underneath (i presume are need to mount it to the bumper) are they necessary?



im thnking of adding this to my bumper but would like a cut out on the left side of it to house the exhaust tip (i dont like it underneath the bumper) to do this would probably need cut out that square tab/s



Have something to contribute?

Sign in or register to start a topic...

Sign up to FOC Premium Membership To Remove These Ads

#17 Lenny

Lenny

    Retired Moderator

  • FOC Supporters
  • 8,565 posts
  • Name: Leonard
  • Ford Model: Focus ZetecS
  • Year: 2010
  • Location: Ireland
Contributor

Posted 26 April 2013 - 08:42 PM

quick question lenny those square shapes underneath (i presume are need to mount it to the bumper) are they necessary?

im thnking of adding this to my bumper but would like a cut out on the left side of it to house the exhaust tip (i dont like it underneath the bumper) to do this would probably need cut out that square tab/s

Hi andrew,
If you look under your existing bumper setup you will see the same two tabs supporting the bottom of the rear bumper,
You need these tabs in place to support the bumper,
I suppose it is in cases like this; the genuine rear diffuser is better because it comes down lower than the existing bumper rather than just sticking flush to it.
So you would have space to cut.
However it is possible to have the exhaust pipe adjusted and extended to peak out without cutting the panel.






#18 vince_13

vince_13

    Vince

  • True Ford Enthusiast
  • PipPipPipPip
  • 522 posts
  • Name: Andrew
  • Ford Model: Focus Zetec
  • Year: 2009
  • Location: Staffordshire
Contributor

Posted 27 April 2013 - 02:29 PM

thanks for the pics lenny the angle in the last pic makes it look better, altho i wont be going for twin pipes myself,



#19 Lenny

Lenny

    Retired Moderator

  • FOC Supporters
  • 8,565 posts
  • Name: Leonard
  • Ford Model: Focus ZetecS
  • Year: 2010
  • Location: Ireland
Contributor

Posted 27 April 2013 - 08:36 PM

thanks for the pics lenny the angle in the last pic makes it look better, altho i wont be going for twin pipes myself,

No prob thanks,
It shouldn't cost more than 60 pounds to get a tail pipe made to go from the back box to a tip under the diffuser,
The main impact on overall cost would be your choice of metal and tip.

#20 Jay T.I.P

Jay T.I.P

    Member

  • Members via FB
  • PipPip
  • 24 posts
  • Name: Jay
  • Ford Model: Focus 1.4 16V CL
  • Year: 2002
  • Location: Derbyshire

Posted 02 May 2013 - 11:23 PM

6x4 oval tips? If so they look sweet on that!



#21 Lenny

Lenny

    Retired Moderator

  • FOC Supporters
  • 8,565 posts
  • Name: Leonard
  • Ford Model: Focus ZetecS
  • Year: 2010
  • Location: Ireland
Contributor

Posted 03 May 2013 - 09:47 AM

6x4 oval tips? If so they look sweet on that!

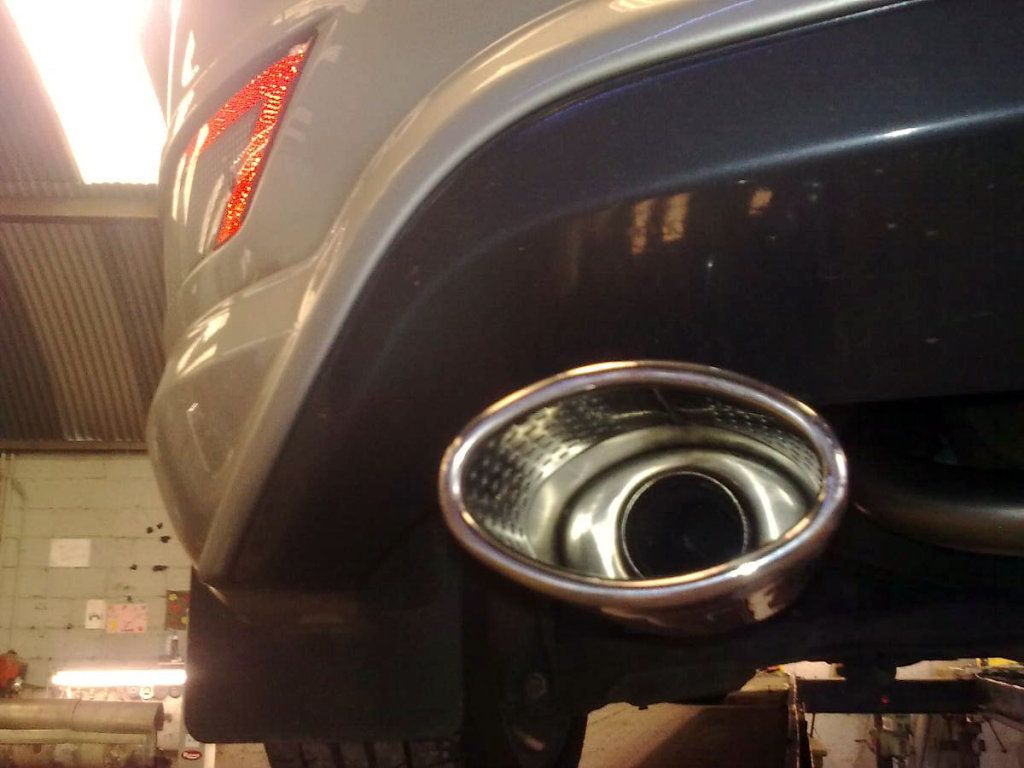

Thanks very much, they are 110mm x 60mm piper oval tips, that's 4.3" x 2.4" inches they looked great when new but now black with carbon, I'm looking for advise on keeping them clean (in another section of the forum)
Considering changing the tips to slash cut RS style so the carbon isint as obvious.

See more recent images:

. IMG_20130521_132004_zps364b2a86.jpg

#22 Jay T.I.P

Jay T.I.P

    Member

  • Members via FB
  • PipPip
  • 24 posts
  • Name: Jay
  • Ford Model: Focus 1.4 16V CL
  • Year: 2002
  • Location: Derbyshire

Posted 03 May 2013 - 09:26 PM

Thanks very much, they are 110mm x 60mm piper oval tips, that's 4.3" x 2.4" inches they looked great when new but now black with carbon, I'm looking for advise on keeping them clean (in another section of the forum)
Considering changing the tips to slash cut RS style so the carbon isint as obvious.


Holy DAMN that looks SWEET, how much you want for it? Just kidding, wish I had money for this model, I wouldn't be stuck with this MK1 1.4, lol

#23 Lenny

Lenny

    Retired Moderator

  • FOC Supporters
  • 8,565 posts
  • Name: Leonard
  • Ford Model: Focus ZetecS
  • Year: 2010
  • Location: Ireland
Contributor

Posted 03 May 2013 - 11:15 PM


Holy DAMN that looks SWEET, how much you want for it? Just kidding, wish I had money for this model, I wouldn't be stuck with this MK1 1.4, lol

Thanks Jay,
Its only a 1.6TDCi mate, I built it to a modified ZetecS and I'll never sell it, took 3 years, through 3 different jobs and every single spare cent to get this far, id be just as happy to mod a Mk1 1.4
You can purchase parts much cheaper aswell as a ford approved duplex exhaust.
Your model is over 500kg lighter and easier to modify.

#24 Jay T.I.P

Jay T.I.P

    Member

  • Members via FB
  • PipPip
  • 24 posts
  • Name: Jay
  • Ford Model: Focus 1.4 16V CL
  • Year: 2002
  • Location: Derbyshire

Posted 04 May 2013 - 03:44 PM

Thanks Jay,
Its only a 1.6TDCi mate, I built it to a modified ZetecS and I'll never sell it, took 3 years, through 3 different jobs and every single spare cent to get this far, id be just as happy to mod a Mk1 1.4
You can purchase parts much cheaper aswell as a ford approved duplex exhaust.
Your model is over 500kg lighter and easier to modify.





But it's still a 1.4, lol, I used to drive around in a 3.2 V6 Vauxhall Vectra B that was supercharged with 3.0 cams and a pipercross induction kit along with a 6x4 oval tip exhaust, that was a crazy car, lol
