Projector Puddle Lights That Shine Ford On The Ground!!

Puddle Light

  • Please log in to reply
26 replies to this topic

#16 iNath

iNath

    ST-2 Mod

  • Super Mod
  • 3,627 posts
  • Name: Nathan
  • Ford Model: Molten Orange Fiesta ST-2
  • Year: 2013
  • Location: Buckinghamshire
Contributor

Posted 24 June 2012 - 12:42 PM

Great, now I'm tempted!

Have something to contribute?

Sign in or register to start a topic...

Sign up to FOC Premium Membership To Remove These Ads

#17 Lenny

Lenny

    Retired Moderator

  • FOC Supporters
  • 9,980 posts
  • Name: Leonard
  • Ford Model: Focus ZetecS
  • Year: 2010
  • Location: Ireland
Contributor

Posted 24 June 2012 - 01:21 PM

Great, now I'm tempted!


Yes they are great value at £29.99 and even better now we know that the bulbs inside are manufactured by cree
http://www.ebay.co.u...9558387&afsrc=1

#18 Rain

Rain

    Settling In Well

  • FOC Supporters
  • 98 posts
  • Ford Model: Ford Fiesta 1.25 Edge
  • Year: 2011
  • Location: Gloucestershire

Posted 21 September 2012 - 07:23 PM

By now has anyone fitted these? Was it easy to fit? Any pictures of your own mod?

#19 Brigante

Brigante

    Resident Ranter

  • FOC Supporters
  • 2,422 posts
  • Name: Charlie
  • Ford Model: Focus Ghia 1.6 115BHP
  • Year: 2005
  • Location: Nottinghamshire
Contributor

Posted 23 September 2012 - 04:05 PM

Tempted to treat myself to some of these. Might have to wait a while though

#20 Lenny

Lenny

    Retired Moderator

  • FOC Supporters
  • 9,980 posts
  • Name: Leonard
  • Ford Model: Focus ZetecS
  • Year: 2010
  • Location: Ireland
Contributor

Posted 28 July 2013 - 07:26 PM

Guys I've finally invested in a set of these puddle lights which are now in their 4th Generation sometimes pays to wait,

While out at the car today,
I decided to investigate what is involved
If I wanted to route a cable through the factory fitted grommet in the door,

I removed the glove box and surrounding panels to trace the location where the grommet enters the car but its surrounded by at least 1 inch tick padding,
So I then removed the passenger door card following the instruction of the Haynes manual,

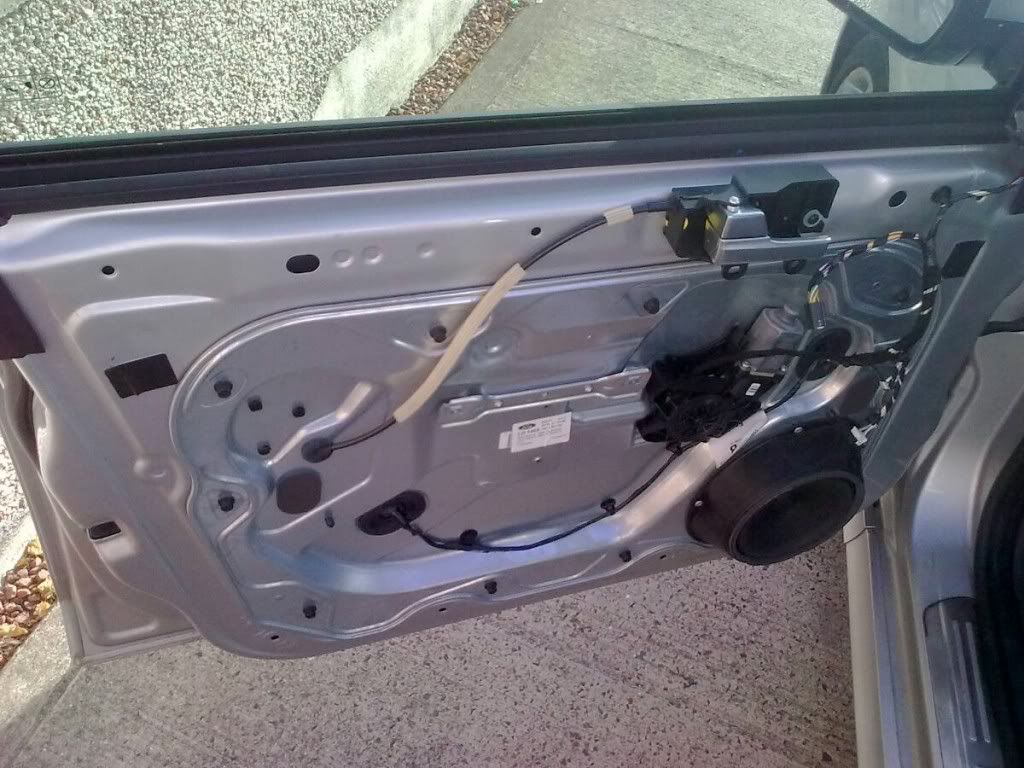

I got the door card removed to be greeted by a galvinised panel full of bolts,
This panel must be removed to access the entrance of the grommet pipe,
I removed the bolts then referd to Haynes again for more guidance,
It says to drill out 4 rivets on the door latch holding the panel in place
Then remove the window yes the window before unbolting the electric window motor and removing the panel,

All this just to run an extra cable for puddle lights,
I've put it all back together for now,
I will fit the puddle lights but perhaps not running the cable through the factory grommets just yet as I'm not that brave to remove windows from doors just yet lol

Its a lot of plumming guys
Worth it?
Yes
But a tad extreme.

#21 Philf1

Philf1

    Ford until I die!

  • FOC Supporters
  • 1,724 posts
  • Name: Phil
  • Ford Model: Fiesta ST2
  • Year: 2014
  • Location: Yorkshire
Contributor

Posted 28 July 2013 - 09:11 PM

Your braver than me if you try this, good luck and post pictures when you have done them.



#22 Lenny

Lenny

    Retired Moderator

  • FOC Supporters
  • 9,980 posts
  • Name: Leonard
  • Ford Model: Focus ZetecS
  • Year: 2010
  • Location: Ireland
Contributor

Posted 31 July 2013 - 09:10 AM

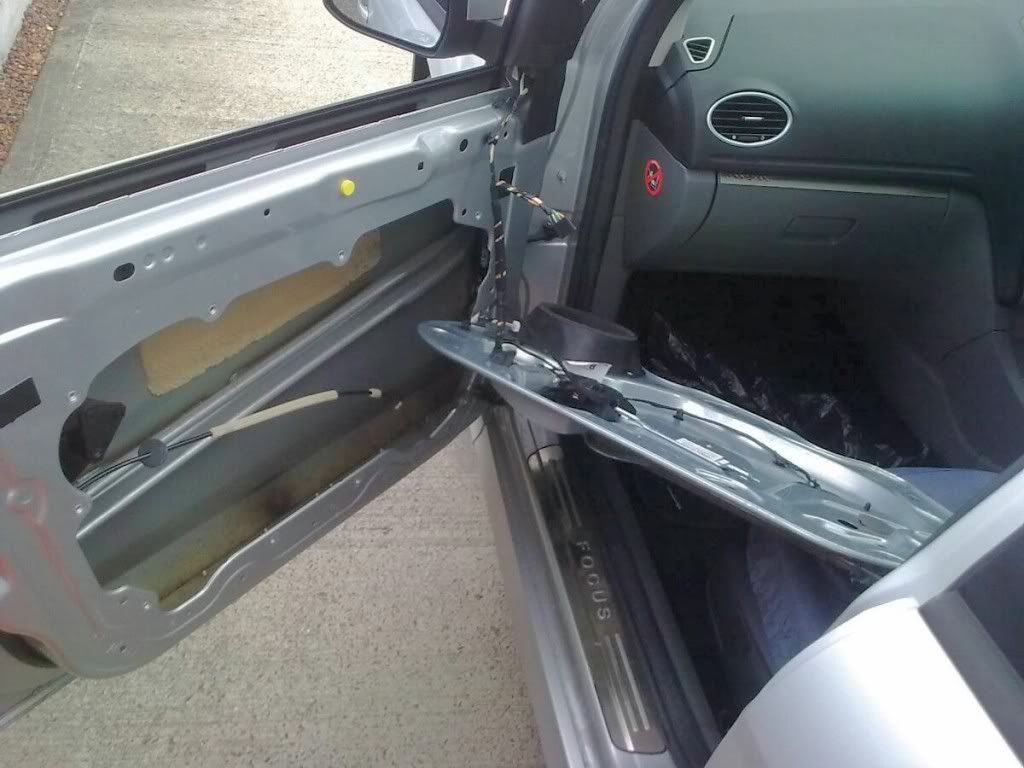

Well after 4 hours of back breaking and reaching around,
Following Haynes manual removing the front passenger window, door panel and electrics,
As well as contact with Mr_Spock via PM
I'm proud to say I've finally gotten a positive and negative feed run in to the front passenger door from the foot well
Ready for arrival of the ford logo puddle lights later in the week.
Special thanks to Mr_spock and VickiC, I couldn't have done it as easy without your help,

only down side is that I've lost a small grommet plug from the passenger side wing
But I'll contact breakers through eBay and replace.



It is impossible to put the extra cable in through the top grommet entering the car because inside of it is a honey-combe block with cable pins, its not just a port hole,
But going out through the factory grommet in the door isint a problem,
So I've put the cable in through the door grommet,
Then out through the side of the door hose
And in through a small grommet next to the hose,
In to the passengers foot well.

I will create a guide on fitting the puddle lights and running the cable tomorrow or Friday when the puddle lights arrive,
I'll create the guide by starting with removing the drivers door panel, disconnecting plugs, removing window glass, locating grommet, insulating cable etc, all the way up to full function illumination, then putting everything back together again.

I won't be fitting any to the rear doors because its proving difficult enough on the front ones but half way there now.

For all non members of the forum; I'll post a link on this thread linking people to the guide once created ;)

#23 gazsutton

gazsutton

    Clueless!

  • Budding Enthusiast
  • PipPipPipPip
  • 133 posts
  • Name: Gareth
  • Ford Model: Ford Focus Zetec S
  • Year: 2010
  • Location: Leicestershire

Posted 02 August 2013 - 09:57 AM

looking forward to see the finished product.



#24 jeebowhite

jeebowhite

    Resident Loon

  • Super Mod
  • 17,371 posts
  • Name: James
  • Ford Model: Sea Grey Mondeo MKIV 1.8TDCi 140ps Zetec
  • Year: 2007
  • Location: Kent
Contributor

Posted 02 August 2013 - 08:12 PM

Lenny, loving the new mod and looking forward to the result, however one question... would it be easier to slit the grommet and feed the wiring in the slit and to the door card? then the other half onto the glovebox...?



an alternate solution I wonder if it may be easier for those who are marginally more faint of heart?



#25 Lenny

Lenny

    Retired Moderator

  • FOC Supporters
  • 9,980 posts
  • Name: Leonard
  • Ford Model: Focus ZetecS
  • Year: 2010
  • Location: Ireland
Contributor

Posted 03 August 2013 - 01:35 AM

looking forward to see the finished product.


Thanks Gareth,
Ive been working on the car wednesday and thursday of this week, cables are in n both front doors with female crimp terminals reasy for light fittings next week,
Ive spent from 11:30am friday to now 02:18am saturday editing and uploading images for the guide bringing it up to current status, it still needs text inserted in areas but all images are in here correct locations etc
I had the guide locked while i was working on it, but ive now opened it to public view/comment
Ill complete the guide next week all comments welcome
. http://www.fordowner...12-front-doors/



Lenny, loving the new mod and looking forward to the result, however one question... would it be easier to slit the grommet and feed the wiring in the slit and to the door card? then the other half onto the glovebox...?

an alternate solution I wonder if it may be easier for those who are marginally more faint of heart?

Hi jeeb,
Thanks for comments mate,
Your plan would work, but all depends on personal preference,
I personally prefer my mods to look as factory as possible thus my efforts to hide the cables from view,
But each to there own, the end result is the same regardless of cable routing So yeah would work mate.

#26 Gerhardva

Gerhardva

    Settling In Well

  • Budding Enthusiast
  • PipPipPip
  • 41 posts
  • Name: Gerhard
  • Ford Model: Fiesta ST
  • Year: 2013
  • Location: Other / Non-UK

Posted 03 August 2013 - 06:11 AM

You guys seriously going to do this, while you order it, get a mexican bndanna as well.



#27 Lenny

Lenny

    Retired Moderator

  • FOC Supporters
  • 9,980 posts
  • Name: Leonard
  • Ford Model: Focus ZetecS
  • Year: 2010
  • Location: Ireland
Contributor

Posted 03 August 2013 - 10:57 AM

You guys seriously going to do this, while you order it, get a mexican bndanna as well.

The logo puddle lights are openly available online and currently on their 4th Generation model,
Acquiring a set anywhere in the world isint a problem with thanks to eBay.
