Mk4 Mondeo Rear Hub Change Help Please


  • Please log in to reply
7 replies to this topic

#1 Raptor

Raptor

    Member

  • New Member
  • PipPip
  • 17 posts
  • Name: Matthew
  • Ford Model: Fiesta 1.4tdci/Mondeo TDCI 1.8 (57)
  • Year: 2010
  • Location: Oxfordshire

Posted 02 July 2012 - 09:34 PM

This site has helped me loads... I need help once again. I have recently purchased two new rear hubs for my mk4 mondeo tdci (57 plate) I am going to change them this weekend, but, theres always a but, I have looked at the new hubs, Does anyone know how to remove the torx head bolts without rounding them off. The part of the hub seems to be in the way (part that wheel bolts to ), so you cant get a torx head to make a good fit on the head, or a socket between the torx head and part with the wheel studs attached to.... Excuse my none mechanical description. I want to get it right to save my car being off the road. I hbope someone can help?

Have something to contribute?

Sign in or register to start a topic...

Sign up to FOC Premium Membership To Remove These Ads

#2 Lenny

Lenny

    Retired Moderator

  • FOC Supporters
  • 9,324 posts
  • Name: Leonard
  • Ford Model: Focus ZetecS
  • Year: 2010
  • Location: Ireland
Contributor

Posted 02 July 2012 - 09:52 PM

This site has helped me loads... I need help once again. I have recently purchased two new rear hubs for my mk4 mondeo tdci (57 plate) I am going to change them this weekend, but, theres always a but, I have looked at the new hubs, Does anyone know how to remove the torx head bolts without rounding them off. The part of the hub seems to be in the way (part that wheel bolts to ), so you cant get a torx head to make a good fit on the head, or a socket between the torx head and part with the wheel studs attached to.... Excuse my none mechanical description. I want to get it right to save my car being off the road. I hbope someone can help?


This may help you mate,

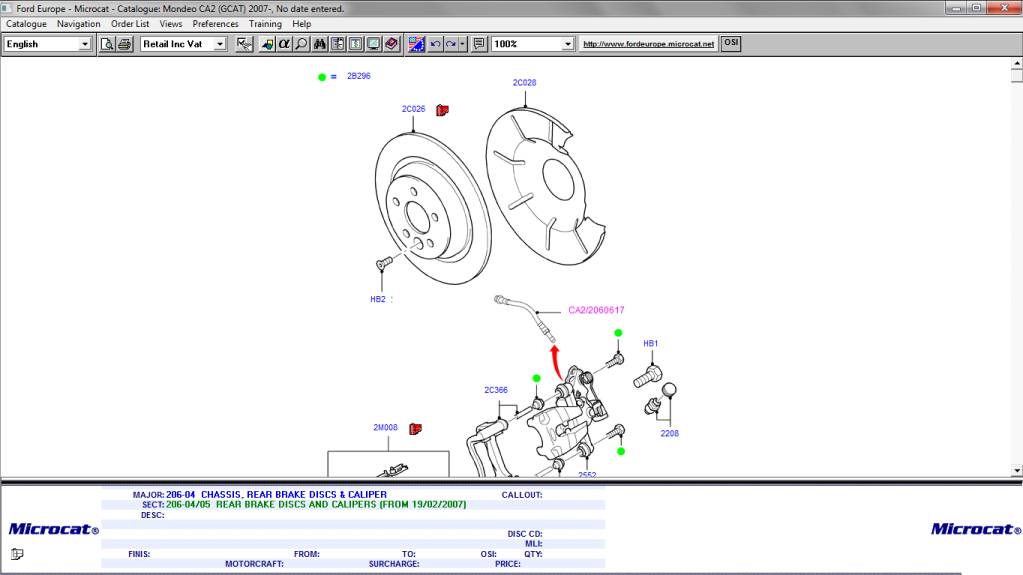

the bolt is an M10 x 20mm Torx holding the disc to the hub
