Guide To Fitting 'submarine' Lighting

submarine lighting light focus fiesta mondeo ford interior

  • Please log in to reply
11 replies to this topic

#1 Haz93

Haz93

    Serial Poster

  • Budding Enthusiast
  • PipPipPipPip
  • 451 posts
  • Name: Harrison
  • Ford Model: KA Mk2 + Audi A5 Cabriolet
  • Year: 2009
  • Location: Warwickshire
Contributor

Posted 16 September 2012 - 09:36 PM

As promised, here is a guide for fitting the submarine, ST style lights to the interior map light unit.

IMG_0772.JPG IMG_0774.JPG IMG_0838.JPG

Please note, I will not be held responsible to any damage you may make to your car when following this guide.

Attached File  Guide to fit Submarine Lights.pdf   1.48MB   1615 downloads

I managed to complete this without breaking or scratching any parts of my car, so remember to take your time and if you need any advice please PM me

Have something to contribute?

Sign in or register to start a topic...

Sign up to FOC Premium Membership To Remove These Ads

#2 Preee

Preee

    Ford Fruitcake

  • Moderator
  • 4,098 posts
  • Name: Paul
  • Ford Model: Focus Tit X Mk3 | Fiesta Zetec Mk7
  • Year: 2012
  • Location: Shropshire
Contributor

Posted 16 September 2012 - 09:51 PM

Great guide Haz . Really nicely layed out and clear to follow.

#3 Oxide

Oxide

    Feet Under The Table

  • FOC Supporters
  • 188 posts
  • Name: Steve
  • Ford Model: Zetec 1.6
  • Year: 2008
  • Location: Cornwall

Posted 16 September 2012 - 09:51 PM

Great guide, a bit intense for me atm but I will certainly be looking into this later on.

#4 Stoney871

Stoney871

    Resident Peacekeeper

  • Super Mod
  • 13,902 posts
  • Name: Clive
  • Ford Model: Focus mk2 1.8 TDCI Sport
  • Year: 2007
  • Location: Devon
Contributor

Posted 16 September 2012 - 09:55 PM

It's a Doddle.
Buy the light with the led's already fitted.
Swap lights and run one wire to connection 16 on the headlight switch.
If a thicko like me can do it then anyone can.
:D
Excellent guide.

#5 Haz93

Haz93

    Serial Poster

  • Budding Enthusiast
  • PipPipPipPip
  • 451 posts
  • Name: Harrison
  • Ford Model: KA Mk2 + Audi A5 Cabriolet
  • Year: 2009
  • Location: Warwickshire
Contributor

Posted 16 September 2012 - 10:42 PM

Thanks guys, took me a while to put it all together :)

As the total cost of this for me was 3 at the time it is defo worth it, or as Stoney said, if your not up for too much of a challenge just get a unit already set up and just run the wire :)



#6 Stoney871

Stoney871

    Resident Peacekeeper

  • Super Mod
  • 13,902 posts
  • Name: Clive
  • Ford Model: Focus mk2 1.8 TDCI Sport
  • Year: 2007
  • Location: Devon
Contributor

Posted 16 September 2012 - 10:50 PM

The ready to go units aren't cheap but are so much easier especially if you're a ham fist like me.

#7 SkinnyB

SkinnyB

    Settling In Well

  • Budding Enthusiast
  • PipPipPip
  • 55 posts
  • Name: Simba
  • Ford Model: Zetec 1.6 Mk 2.5
  • Year: 2008
  • Location: Sussex

Posted 27 October 2012 - 05:52 PM

Great guide Haz, I've always been a big fan of submarine lights from the time of my BMW E39, it had them as standard. Right done this mod about a week ago. Easy enough if u follow Haz's guide. Can't wait to take the car on a drive at night with them on, car is currently off road, hopefully should be back on road by late next week at the latest. Will try and put a picture or two up.

#8 Haz93

Haz93

    Serial Poster

  • Budding Enthusiast
  • PipPipPipPip
  • 451 posts
  • Name: Harrison
  • Ford Model: KA Mk2 + Audi A5 Cabriolet
  • Year: 2009
  • Location: Warwickshire
Contributor

Posted 28 October 2012 - 01:00 PM

Thanks, glad you found the guide useful :)

Got to say the 12v 3mm super bright LEDs I have aren't that bright, not sure how yours are or which LEDs you chose. I may swap mine for 5mm superbrights as they supposedly have 2X the brightness :)

#9 SkinnyB

SkinnyB

    Settling In Well

  • Budding Enthusiast
  • PipPipPip
  • 55 posts
  • Name: Simba
  • Ford Model: Zetec 1.6 Mk 2.5
  • Year: 2008
  • Location: Sussex

Posted 29 October 2012 - 06:53 PM

Definately found it useful , yea I got the same 3mm super bright (the guy from maplins told me) as you and I have same problem. I just don't think they are bright enough, I don't want them too bright illuminating everything but these ones I have just ain't doing it for me. They look amazing though I have to admit.
Haz u got me thinking about these 5mm now :), do you recon you will be swapping the 3mm for the 5mm?

#10 Lenny

Lenny

    Retired Moderator

  • FOC Supporters
  • 8,524 posts
  • Name: Leonard
  • Ford Model: Focus ZetecS
  • Year: 2010
  • Location: Ireland
Contributor

Posted 28 July 2013 - 12:10 PM

It's a Doddle.
Buy the light with the led's already fitted.
Swap lights and run one wire to connection 16 on the headlight switch.
If a thicko like me can do it then anyone can.
Excellent guide.

Great Guide,
And Connection 16
That's brilliant information, I've made up a single feed cable with an insulated female spade connector crimped on to the end,
I'm going to run it up the drivers side A Pilar in to the interior light section then splice it in to cable 16 at the rear of the light switch unit,
Then I'll just have to un-package and plug in the sub light unit when it arrives next week.


#11 Stoney871

Stoney871

    Resident Peacekeeper

  • Super Mod
  • 13,902 posts
  • Name: Clive
  • Ford Model: Focus mk2 1.8 TDCI Sport
  • Year: 2007
  • Location: Devon
Contributor

Posted 28 July 2013 - 05:36 PM

Bear in mind that the bayonet connector is tiny (4-5mm).

#12 Lenny

Lenny

    Retired Moderator

  • FOC Supporters
  • 8,524 posts
  • Name: Leonard
  • Ford Model: Focus ZetecS
  • Year: 2010
  • Location: Ireland
Contributor

Posted 28 July 2013 - 06:57 PM

Bear in mind that the bayonet connector is tiny (4-5mm).

Got it sorted mate,
The red connector I've fitted to the cable; slides on to the spades of the existing unit no problem so I assume the extra connector on the ambient unit is the same size,
Cable is now in place and spliced to the bottom left cable on the rear of the light switch unit coloured
I've tested it out and yes it becomes live when the driving lights are turned on.

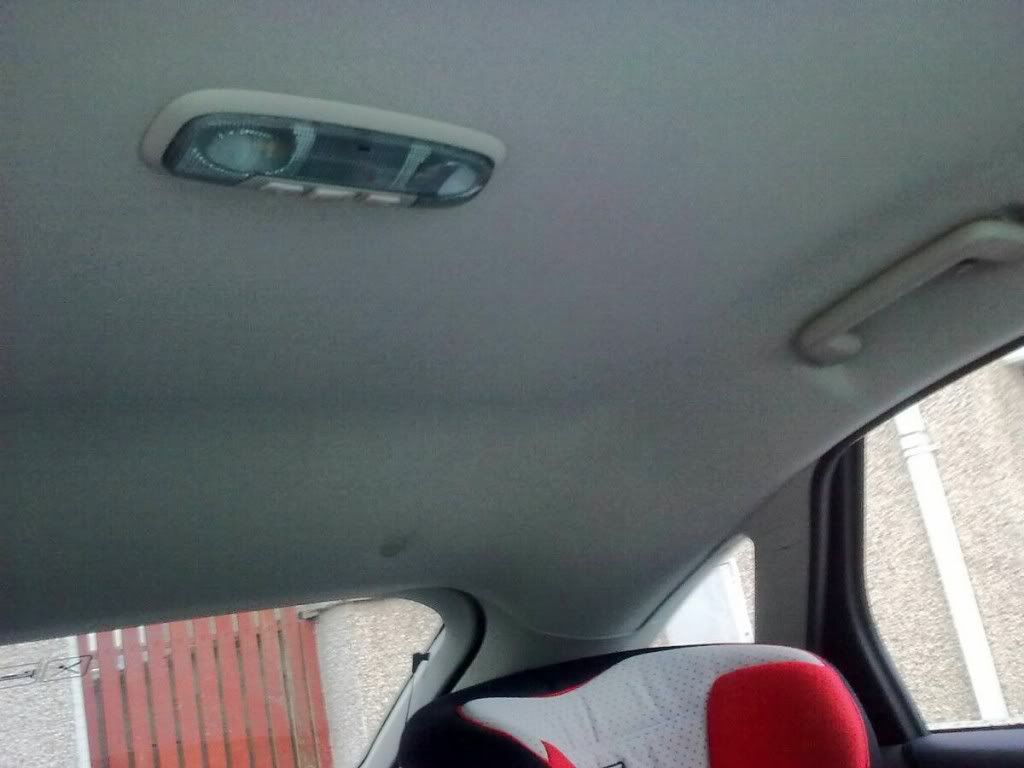

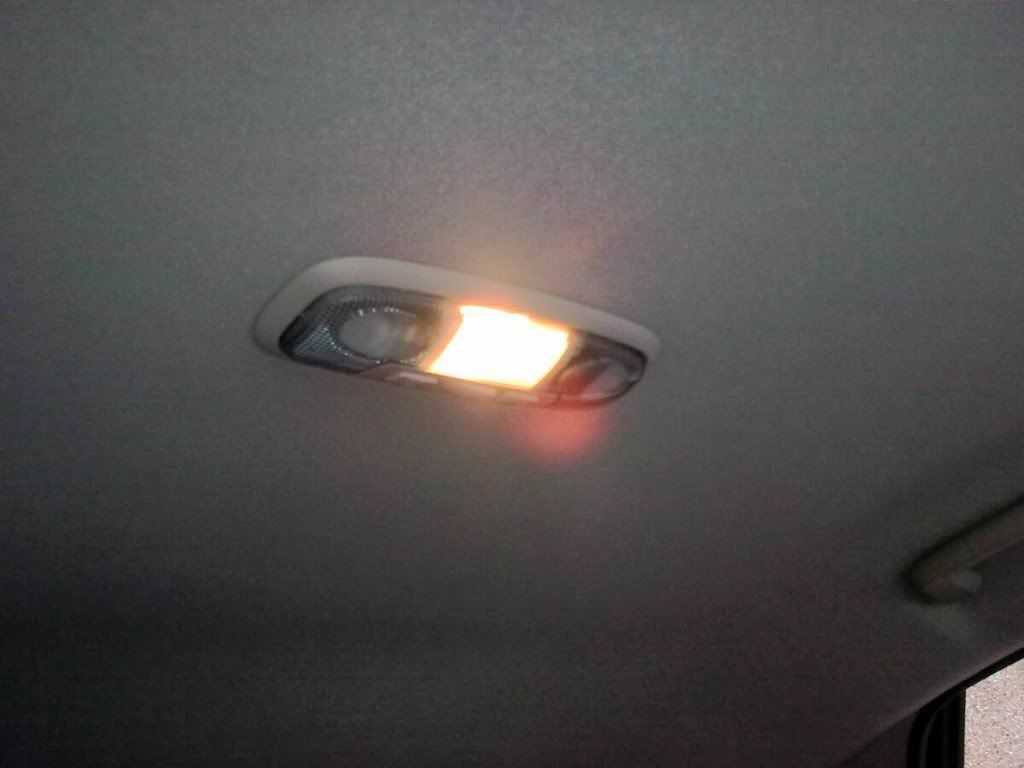

I've taken the front light unit out now and swapped it with the single bulb unit in the back seat,
So now back seat passengers have a reading light on either side aswell as a courtesy light in the centre.
Was a straight swap all cables are there.
