#361 Hassen

Hassen

    Too much time on the boards

  • FOC Supporters
  • 691 posts
  • Name: Hassen
  • Ford Model: Ford Focus Mk 2.5 1.6TDCI 2010
  • Year: 2010
  • Location: Offaly

Posted 23 May 2014 - 08:15 PM

That looks cool. You will have to let us know how it sounds once you have it installed. Best of luck with the install :)



Have something to contribute?

Sign in or register to start a topic...

Sign up to FOC Premium Membership To Remove These Ads

#362 yunii

yunii

    yunii

  • True Ford Enthusiast
  • PipPipPipPip
  • 595 posts
  • Name: yunii (nickname)
  • Ford Model: FOCUS TITANIUM-S
  • Year: 2010
  • Location: Yorkshire
Contributor

Posted 23 May 2014 - 08:18 PM

This is the live feed from radio loom
Below the earth.

Sent from my GT-I9505 using Ford OC mobile app

Attached Thumbnails

  • 1400875626155.jpg
  • 1400875698749.jpg


#363 yunii

yunii

    yunii

  • True Ford Enthusiast
  • PipPipPipPip
  • 595 posts
  • Name: yunii (nickname)
  • Ford Model: FOCUS TITANIUM-S
  • Year: 2010
  • Location: Yorkshire
Contributor

Posted 23 May 2014 - 08:21 PM

Gear knob green or red via one wire switch over.

Sent from my GT-I9505 using Ford OC mobile app

Attached Thumbnails

  • 1400875755486.jpg
  • 1400875770215.jpg
  • 1400875785644.jpg
  • 1400875841202.jpg


#364 Lenny

Lenny

    Retired Moderator

  • FOC Supporters
  • 9,978 posts
  • Name: Leonard
  • Ford Model: Focus ZetecS
  • Year: 2010
  • Location: Ireland
Contributor

Posted 23 May 2014 - 08:23 PM

Cheers Lenny,
Its not actually an amp but Alpine swd 1600 underseat subwoofer.
As in pic. Also the wires from the sub.
My question is as you say i need 12v ign live feed .well , i have fitted illumenated genuine ford gear knob & it guides you to take feed from back of radio loom. Which illumenates gear knob when ign on,will this one be ok to take feed from for remote feed?
I'll paste a pic of the rca converters wires etc.
Sent from my GT-I9505 using Ford OC mobile app

looks tidy,
Splicing it to the positive on the gear knob illumination would be ok mate, it doesnt actually draw power through that feed, it just sences for power,
When power is felt,
It tells the relay to allow power to flow from the battery to sub,

I think theres another 12v loom socket behind the garage door compartment you could splice to,
And you need a RCA convertor to give RCA sockets
then a 2M male to male RCA cable

#365 yunii

yunii

    yunii

  • True Ford Enthusiast
  • PipPipPipPip
  • 595 posts
  • Name: yunii (nickname)
  • Ford Model: FOCUS TITANIUM-S
  • Year: 2010
  • Location: Yorkshire
Contributor

Posted 23 May 2014 - 08:23 PM

That looks cool. You will have to let us know how it sounds once you have it installed. Best of luck with the install :)

Cheers Hassen.
Bear in the Titanium have 8 high series speaker & sony dab setup so even in stock setup is pretty good.
Yunii

Sent from my GT-I9505 using Ford OC mobile app

#366 yunii

yunii

    yunii

  • True Ford Enthusiast
  • PipPipPipPip
  • 595 posts
  • Name: yunii (nickname)
  • Ford Model: FOCUS TITANIUM-S
  • Year: 2010
  • Location: Yorkshire
Contributor

Posted 23 May 2014 - 08:27 PM

looks tidy,
Splicing it to the positive on the gear knob illumination would be ok mate, it doesnt actually draw power through that feed, it just sences for power,
When power is felt,
It tells the relay to allow power to flow from the battery to sub,

I think theres another 12v loom socket behind the garage door compartment you could splice to,
And you need a RCA convertor to give RCA sockets
then a 2M male to male RCA cable

When you refer to garage door do you mean cig lighter unit?
Yunii

Sent from my GT-I9505 using Ford OC mobile app

#367 Lenny

Lenny

    Retired Moderator

  • FOC Supporters
  • 9,978 posts
  • Name: Leonard
  • Ford Model: Focus ZetecS
  • Year: 2010
  • Location: Ireland
Contributor

Posted 23 May 2014 - 08:37 PM

When you refer to garage door do you mean cig lighter unit?
Yunii
Sent from my GT-I9505 using Ford OC mobile app

yes the socket in there use the loom from that,
Or the one in the arm rest,
Would save you running a feed directly from the battery

#368 Hassen

Hassen

    Too much time on the boards

  • FOC Supporters
  • 691 posts
  • Name: Hassen
  • Ford Model: Ford Focus Mk 2.5 1.6TDCI 2010
  • Year: 2010
  • Location: Offaly

Posted 23 May 2014 - 08:55 PM

Cheers Hassen.
Bear in the Titanium have 8 high series speaker & sony dab setup so even in stock setup is pretty good.
Yunii

Sent from my GT-I9505 using Ford OC mobile app



Cool. Didn't know that. My poor Zetec has/had components upfront and a set of cheapo speakers at the back. Planning to get a set of Focal PS165 component speakers soon for the front. Recently upgraded the sub to a JL Audio  10W0V3-4, which I must say is a great value for money. Massive improvement from the Vibe Slick 10 sub woofer. Highly recommended.



#369 yunii

yunii

    yunii

  • True Ford Enthusiast
  • PipPipPipPip
  • 595 posts
  • Name: yunii (nickname)
  • Ford Model: FOCUS TITANIUM-S
  • Year: 2010
  • Location: Yorkshire
Contributor

Posted 23 May 2014 - 09:03 PM

yes the socket in there use the loom from that,
Or the one in the arm rest,
Would save you running a feed directly from the battery

I had this wired up in my my mk 1.5 & had live feed from battery & it has Big fuse.
Yunii

Sent from my GT-I9505 using Ford OC mobile app

#370 Lenny

Lenny

    Retired Moderator

  • FOC Supporters
  • 9,978 posts
  • Name: Leonard
  • Ford Model: Focus ZetecS
  • Year: 2010
  • Location: Ireland
Contributor

Posted 23 May 2014 - 09:07 PM

I had this wired up in my my mk 1.5 & had live feed from battery & it has Big fuse.
Yunii
Sent from my GT-I9505 using Ford OC mobile app

ah well then ya know what your doing :)

#371 b4zz

b4zz

    Too much time on the boards

  • True Ford Enthusiast
  • PipPipPipPip
  • 794 posts
  • Name: Barry
  • Ford Model: facelift focus zetec
  • Year: 2009
  • Location: Cardiff

Posted 24 May 2014 - 08:54 AM

looking good

#372 yunii

yunii

    yunii

  • True Ford Enthusiast
  • PipPipPipPip
  • 595 posts
  • Name: yunii (nickname)
  • Ford Model: FOCUS TITANIUM-S
  • Year: 2010
  • Location: Yorkshire
Contributor

Posted 26 May 2014 - 05:16 PM

LH rear speaker
grey/white - terminal C442/8 from rear of stereo
White/violet + terminal C442/4 from rear of stereo

RH rear speaker
Grey/white - terminal C442/5 from rear of stereo
White/violet + terminal C442/1 from rear of stereo

Both sets of cable are solid grey and solid white colours at rear of stereo however they change to there striped colours on the door card looms
For best results on bass id splice in to the 6" component on tge door card itself,
Because at that point the sound will have been split via the crossover box ensuring only the deep tones are sent to the 6" speaker,
This way you will be sure its only deep tones going to your sub,

Also dont forget about the 12v supply behind the drivers side boot panel,
Run that to the amp save yourself running a feed from the battery as its already factory fitted.


Your amp will also have an ignition positive sensor feed,
This single cable generaly blue in colour needs to be spliced to a feed that becomes positive when the key is turned, just the same as the stereo does,

Splice in to the large orange cable on the rear of the heater control unit in the centre console


Hi Lenny, checked back of radio & here is what speaker wires are their
1.Red/grey.
Red/white.
2.Grey/white.
White.
3.grey/black
White/black.
4.grey/white.
White/violet.
If you notice you both sets same colour co ordinates.
Can you please double check from these for me?
Cheers. Here is image of wiring back of radio




Sent from my GT-I9505 using Ford OC mobile app

Attached Thumbnails

  • 1401123988084.jpg
  • 1401124005211.jpg


#373 Lenny

Lenny

    Retired Moderator

  • FOC Supporters
  • 9,978 posts
  • Name: Leonard
  • Ford Model: Focus ZetecS
  • Year: 2010
  • Location: Ireland
Contributor

Posted 26 May 2014 - 11:17 PM

Hi Lenny, checked back of radio & here is what speaker wires are their
1.Red/grey.
Red/white.
2.Grey/white.
White.
3.grey/black
White/black.
4.grey/white.
White/violet.
If you notice you both sets same colour co ordinates.
Can you please double check from these for me?
Cheers. Here is image of wiring back of radio
Sent from my GT-I9505 using Ford OC mobile app

haynes doesnt show rear of stereo but heres a link to all ford stereo wiring diagrams
May i suggest starting a thread rewuesting the specific info aswell.

http://www.tehnomaga...g-Connector.htm

#374 Lenny

Lenny

    Retired Moderator

  • FOC Supporters
  • 9,978 posts
  • Name: Leonard
  • Ford Model: Focus ZetecS
  • Year: 2010
  • Location: Ireland
Contributor

Posted 11 June 2014 - 05:16 PM

Update:

The focus is due its first NCT next week,
Its also due a Service,
Booked in for two new front tyres tomorrow, however AVON tyres don't make the ZZ3 anymore so ill be fitting the AVON ZV5 tomorrow morning instead,

Now regarding the service,
Well as some of you maybe already aware I've fallen out with my local ford dealer in April of last year due to them charging for jobs they didn't even have the equipment to carry the job out with, aswell as going back on there word in terms of quoted prices.

So instead of going to ford wranch cowboys,
I've decided to do an oil and filter change myself aswell as using Wynne's Engine Flush,
There are other mechanics more local than ford but i want to be sure the Wynne's flush is used on the service and used correctly, not left in the sump or vacuumed out like most garages remove oil these days through the filler cap using a pump instead of draining through the sump plug.

Anyways,
I logged on to Micksgarage.com entered the focus registration plate number,
And up came all available parts for my specific model,

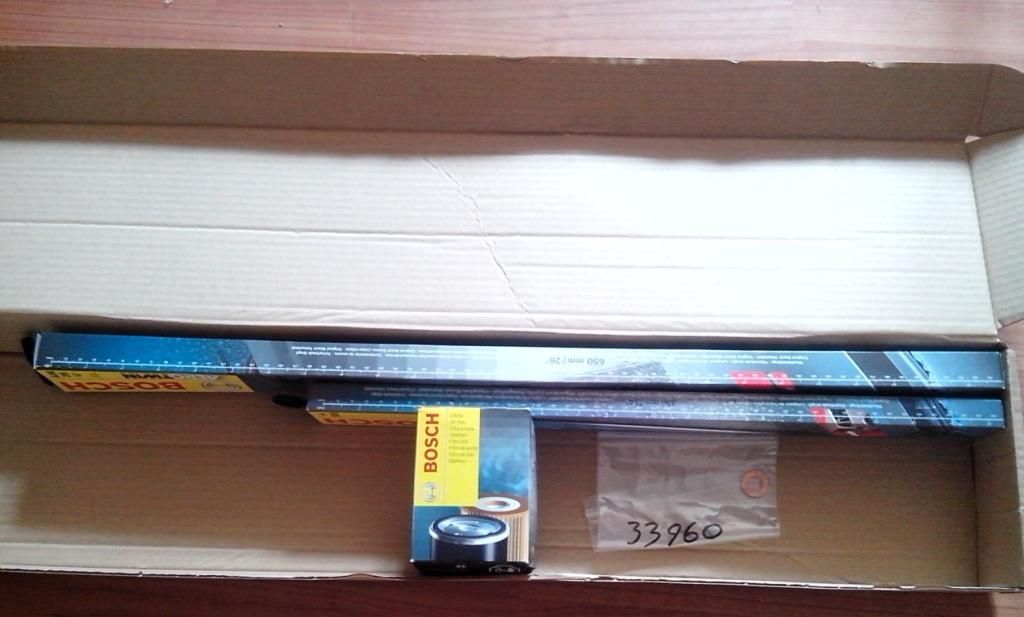

I purchased
Bosh wiper blades,
Oil Sump plug Seal (copper washer)
Bosh Oil Filter

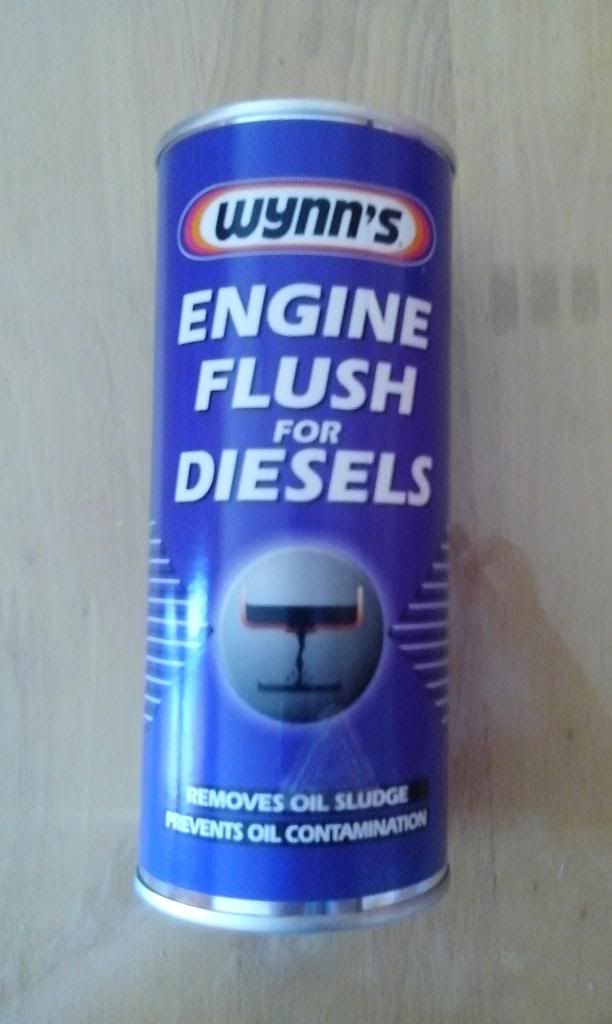

I had previously been to Halfords and purchased a can of Wynne's engine flush for diesels,

IMG_20140511_101944_zpszauv4ri_edit_1399

Remaining items on the shopping list are:
Castrol Edge 5W-30 (need to confirm correct grade)
27MM Wrench Socket (to remove filter housing)

A trip to Halfords on Sunday will take the socket off the list,
http://www.halfords....tegoryId_212616

Micksgarage also supply Castrol oil but its slightly cheaper in Tesco plus you get the Club card points back too.
http://www.tesco.com...re/136-8860.prd

I'm working nights this week and busy this Sunday,
But i will be creating a guide oil & filter change with Wynne's engine flush 1.6TDCi in the coming weeks perhaps Sunday 22nd June 2014

VickiC has changed the wiper blades by herself today following the Guide here:
http://www.fordowner...focus-mk2-mk25/

#375 VickiW

VickiW

    Too much time on the boards

  • True Ford Enthusiast
  • PipPipPipPip
  • 830 posts
  • Name: Victoria
  • Ford Model: focus st wannabe!!!
  • Year: 2010
  • Location: Ireland

Posted 11 June 2014 - 05:23 PM

I didnt need your guide! !!!
