Guide To Fitting Vanity Lights?


  • Please log in to reply
15 replies to this topic

#1 Ianb

Ianb

    Settling In Well

  • FOC Supporters
  • 69 posts
  • Name: Ian
  • Ford Model: Focus Estate 1.6 TDCI Style
  • Year: 2007
  • Location: Devon

Posted 11 June 2014 - 07:05 PM

Can anyone point me in the direction of one?



I recently bought a couple vanity lights (ones behind the sun visors) and I assumed they wouldn't be too difficult to sort out, (I'm naive as well as ignorant when it comes to cars). I am struggling to work out how to do it/where to get the connectors from etc..



Just wondering if anyone had a detailed guide or something as I really am completely new to all of this stuff... imagine a child trying to put the square block through the triangle hole and that's somewhat my abilities when it comes to cars...



Have something to contribute?

Sign in or register to start a topic...

Sign up to FOC Premium Membership To Remove These Ads

#2 jeebowhite

jeebowhite

    Resident Loon

  • Super Mod
  • 14,989 posts
  • Name: James
  • Ford Model: Sea Grey Mondeo MKIV 1.8TDCi 140ps Zetec
  • Year: 2007
  • Location: Kent
Contributor

Posted 11 June 2014 - 08:16 PM

We havent got a guide but could help you with it.



Do you have the wiring for it as well as the light?



#3 Ianb

Ianb

    Settling In Well

  • FOC Supporters
  • 69 posts
  • Name: Ian
  • Ford Model: Focus Estate 1.6 TDCI Style
  • Year: 2007
  • Location: Devon

Posted 11 June 2014 - 09:57 PM

Unfortunately no. I've looked online and seen images which show the wires attached, but mine don't have wires or plugs attached  :(



#4 Lenny

Lenny

    Retired Moderator

  • FOC Supporters
  • 8,829 posts
  • Name: Leonard
  • Ford Model: Focus ZetecS
  • Year: 2010
  • Location: Ireland
Contributor

Posted 12 June 2014 - 12:28 AM

Can anyone point me in the direction of one?

I recently bought a couple vanity lights (ones behind the sun visors) and I assumed they wouldn't be too difficult to sort out, (I'm naive as well as ignorant when it comes to cars). I am struggling to work out how to do it/where to get the connectors from etc..

Just wondering if anyone had a detailed guide or something as I really am completely new to all of this stuff... imagine a child trying to put the square block through the triangle hole and that's somewhat my abilities when it comes to cars...

Hi,
It would be easiest if you could get a roof lining with the holes already cut out for the vanity lights,

Here is cable you would require:
http://m.ebay.co.uk/...6683?nav=SEARCH

You can splice in to the centre light loom for power and earth,


You will also require pvc tape:
http://m.ebay.co.uk/...6959?nav=SEARCH

and some insulated spade connectors look like these:
http://m.ebay.co.uk/...9313?nav=SEARCH


If you dont have any tools, this kit is sufficent for wiring:
http://m.ebay.co.uk/...2510?nav=SEARCH

#5 Ianb

Ianb

    Settling In Well

  • FOC Supporters
  • 69 posts
  • Name: Ian
  • Ford Model: Focus Estate 1.6 TDCI Style
  • Year: 2007
  • Location: Devon

Posted 12 June 2014 - 10:37 PM

My car has the little indentations under the sun visors where vanity lights are 'supposed' to go in higher spec models, so I'm not too worried about where to fit them (just scary having to chop into a nice headlining - might get my fiancee to do it :D haha then it's not my fault!)



Thanks for the links of stuff above, I'm still not sure how to wire it into the vanity lights themselves... The part the bulbs goes into is all covered by plastic and would need special plugs...



#6 Lenny

Lenny

    Retired Moderator

  • FOC Supporters
  • 8,829 posts
  • Name: Leonard
  • Ford Model: Focus ZetecS
  • Year: 2010
  • Location: Ireland
Contributor

Posted 13 June 2014 - 12:20 AM

My car has the little indentations under the sun visors where vanity lights are 'supposed' to go in higher spec models, so I'm not too worried about where to fit them (just scary having to chop into a nice headlining - might get my fiancee to do it :D haha then it's not my fault!)

Thanks for the links of stuff above, I'm still not sure how to wire it into the vanity lights themselves... The part the bulbs goes into is all covered by plastic and would need special plugs...

cut a small hole then bore it out snug,
Have you got some wires coming out of them?

If yes,
Crimp male spade connectors on to them,

Splice some new cable to the loom at the rear of the interior light,
Run it to each vanity light and crimp some insulated female spade connectors to the ends ,
Plug it all in and job done,

#7 Ianb

Ianb

    Settling In Well

  • FOC Supporters
  • 69 posts
  • Name: Ian
  • Ford Model: Focus Estate 1.6 TDCI Style
  • Year: 2007
  • Location: Devon

Posted 13 June 2014 - 02:33 PM

Thanks again for the help you guys are offering, I've just taken a couple pictures of the lights to show them and what I have/don't have etc.



There are no wires supplied at all sadly :(



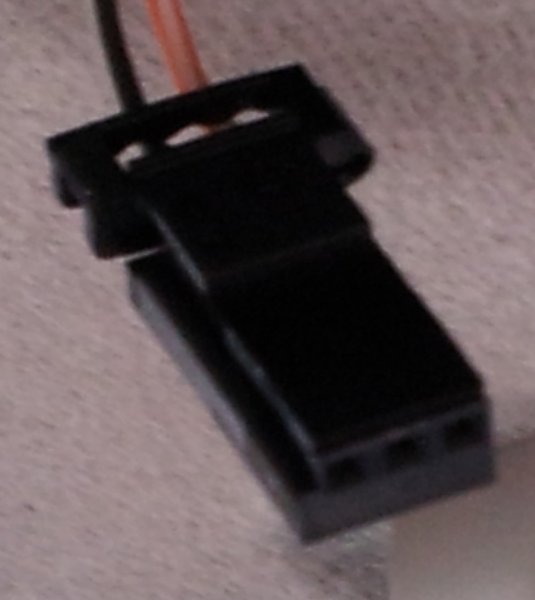

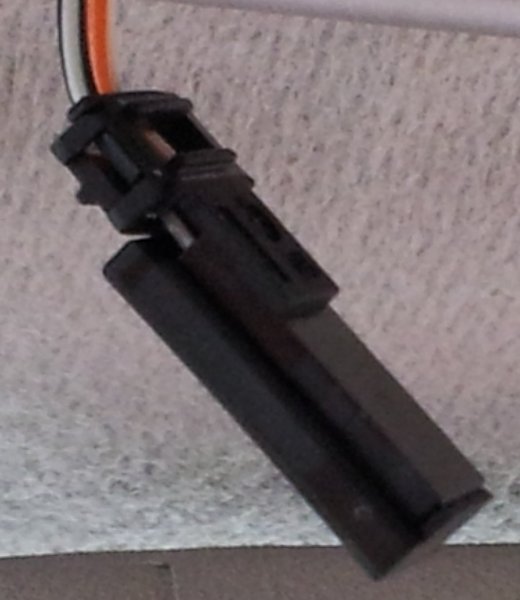

The back view shows the 'socket' I guess you could call it, that links up to the bulb, but there is no 'plug' which would lead to the power source:






And front view is..well..just the front view:




#8 jeebowhite

jeebowhite

    Resident Loon

  • Super Mod
  • 14,989 posts
  • Name: James
  • Ford Model: Sea Grey Mondeo MKIV 1.8TDCi 140ps Zetec
  • Year: 2007
  • Location: Kent
Contributor

Posted 13 June 2014 - 04:03 PM

the bit that pokes out is where the power goes.



Best thing I can suggest to you is this....



Get yourself an old (or cheap) 12v socket extension, it should have a positive and negative lead (seperated) going from the 12v plug over to the socket.



Cut the socket extension off so your left with the 12v plug and the two wires. Stretch them out (and cut one about an inch shorter than the other (this will protect the fuses).



Plug the 12v plug into the socket, and then touch the two electrodes (you can see through the plastic in the top pic). If you get them the right way around it will light up the light.



Then using Lenny's info above and attach a positive and negative wire to the spade connectors (crimp it) then attach it to the positive pole, and the same with the negative pole.



Then you just need to tap into the positive and negative wires of the centre as Lenny did.



If you are not confident with splicing into wires, I highly recommend the "PosiTap" (go for the red ones). These are so simple to use, and they put a single pin prick hole into the wire and tap into it to get power. They are the best I have found yet for keeping your wire in good health and giving a secure connection (I wish I had found them sooner!). I now use them for all my mods where I need to tap into a wire!



#9 Lenny

Lenny

    Retired Moderator

  • FOC Supporters
  • 8,829 posts
  • Name: Leonard
  • Ford Model: Focus ZetecS
  • Year: 2010
  • Location: Ireland
Contributor

Posted 13 June 2014 - 05:35 PM

Then you just need to tap into the positive and negative wires of the centre as Lenny did.


They came fitted to my model as standard mate, i didn't retro fit them myself.

#10 jeebowhite

jeebowhite

    Resident Loon

  • Super Mod
  • 14,989 posts
  • Name: James
  • Ford Model: Sea Grey Mondeo MKIV 1.8TDCi 140ps Zetec
  • Year: 2007
  • Location: Kent
Contributor

Posted 13 June 2014 - 06:41 PM

Sorry Lenny, that should have said "said" as opposed to "did"



#11 Lenny

Lenny

    Retired Moderator

  • FOC Supporters
  • 8,829 posts
  • Name: Leonard
  • Ford Model: Focus ZetecS
  • Year: 2010
  • Location: Ireland
Contributor

Posted 13 June 2014 - 06:46 PM

Sorry Lenny, that should have said "said" as opposed to "did"

:lol: such errors can greatly affect ones message inbox,
And both are small but strog words, i often said id kill vickiC but i never did :)

#12 jeebowhite

jeebowhite

    Resident Loon

  • Super Mod
  • 14,989 posts
  • Name: James
  • Ford Model: Sea Grey Mondeo MKIV 1.8TDCi 140ps Zetec
  • Year: 2007
  • Location: Kent
Contributor

Posted 13 June 2014 - 07:00 PM

haha, touche ;)



#13 Ianb

Ianb

    Settling In Well

  • FOC Supporters
  • 69 posts
  • Name: Ian
  • Ford Model: Focus Estate 1.6 TDCI Style
  • Year: 2007
  • Location: Devon

Posted 14 June 2014 - 01:05 PM

Hey guys haven't ordered any parts just yet. Really like the 'positap' gear, thanks so much for that link - not confident in chopping into the wires. I just wanted to confirm, the sticking out bit on the vanity light is where the power needs to go (one thing I did know), but will I need to butcher the light a little bit? Only the metal connectors ON the light are about halfway down that plastic sticky out bit :/



...slowly learning...



#14 jeebowhite

jeebowhite

    Resident Loon

  • Super Mod
  • 14,989 posts
  • Name: James
  • Ford Model: Sea Grey Mondeo MKIV 1.8TDCi 140ps Zetec
  • Year: 2007
  • Location: Kent
Contributor

Posted 14 June 2014 - 02:45 PM

Should be alright without chopping, you should be able to push the female conncetor down, but there is no harm in sanding / filing the connector area down to make it easier to access but as it is, it helps to secure it in place.



You just have one pin for earth and one for live and jobs a good un



#15 jeebowhite

jeebowhite

    Resident Loon

  • Super Mod
  • 14,989 posts
  • Name: James
  • Ford Model: Sea Grey Mondeo MKIV 1.8TDCi 140ps Zetec
  • Year: 2007
  • Location: Kent
Contributor

Posted 14 June 2014 - 02:46 PM

These are the pack I bought (positaps)



http://www.ebay.co.u...=item27e4329c67



They are more expensive than scotchlocks, but are worth it!
