mrmetallica

items behind the grill

Recommended Posts

does any one have a diagram of items behind the front grill ? i think its like an air intake etc.i found some items damaged behind the grill and want to relace but not sure what they are

Share this post


Link to post
Share on other sites
20 hours ago, mrmetallica said:

i found some items damaged behind the grill and want to relace but not sure what they are

Photograph them on your phone and upload the images

Share this post


Link to post
Share on other sites

2 hours ago, F0CUE said:

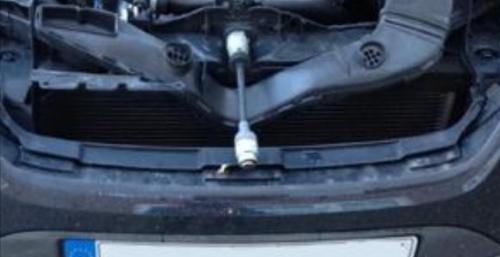

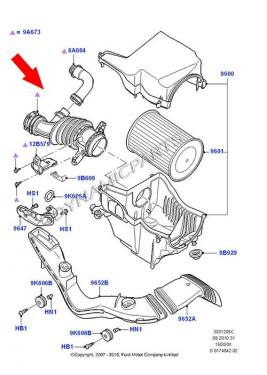

Is this what u need?


im not sure its a while since it broke.what happened is the bonnet lock wouldnt let me open the bonnet. so i had to force it open that might be to far in whats between the grill and the radiator ?

Share this post


Link to post
Share on other sites

The snorkal bit at the bottom lives in there with the lock and the radiator. You can get a new lock on eBay with a key works perfect. Instead of breaking mines I sat under the engine on jack stands then took out the bolts from behind it's good for the core lol


Share this post


Link to post
Share on other sites
1 hour ago, F0CUE said:

The snorkal bit at the bottom lives in there with the lock and the radiator. You can get a new lock on eBay with a key works perfect. Instead of breaking mines I sat under the engine on jack stands then took out the bolts from behind it's good for the core lol


im going to have to have a look ive sorted the lock .something broke that had a bolt on it maybe to do with the snorkel thanks for the help so far

Share this post


Link to post
Share on other sites

these are the pieces that have broken but im not sure where from any one recognise them





Share this post


Link to post
Share on other sites

15 minutes ago, F0CUE said:

That looks like part of what holds the top grill on look around the top area of the grill.

will do when weather improves

Share this post


Link to post
Share on other sites

There is also some sort or hook where the very end of the snorkel hangs onto it could be that too. Yep rain rain and more rain lol

Share this post


Link to post
Share on other sites
