Garzzz

Fiesta Mk7 Interior Ambient Lights

47 posts in this topic

Hey all,

Happy new year! Hope everyone had a smash of a party on new years day.

Anyway, does anyone know if we can retrofit the interior ambient lights on our own? Theres a lot there just above the opening mouth of the glove compartment and the compartment at the bottom of the centre console.

Unfortunately Ford Singapore does not have these options so i was thinking of getting in online and retrofitting it myself but not too sure if there's any wiring there.

Any one has a reliable website to get ford accessories from other than european-parts.net?

Much appreciated.

Bests,

Share this post


Link to post
Share on other sites


I keep wondering the same thing myself, if the wiring is there for the one above the glovebox then it's apparently quite easy (just plug it in). However I don't know what the wiring looks like or where exactly it connects, but after dropping the glovebox for a look I didn't see anywhere it could go so I gave up. I also emailed european-parts in case they had any info or instructions on installing it but they didn't. We just need someone with a Zetec/Titanium to have a look at how it's wired and get a photo :rolleyes:.

Share this post


Link to post
Share on other sites

I keep wondering the same thing myself, if the wiring is there for the one above the glovebox then it's apparently quite easy (just plug it in). However I don't know what the wiring looks like or where exactly it connects, but after dropping the glovebox for a look I didn't see anywhere it could go so I gave up. I also emailed european-parts in case they had any info or instructions on installing it but they didn't. We just need someone with a Zetec/Titanium to have a look at how it's wired and get a photo :rolleyes:.

Was also wondering if i just bought the overhead light with the 3 lights: centre light and 2 reading lights, would there actually be any wiring for that as well?

Ford in SIngapore has a terrible dealer. Atrocious more like it.

Bests,

Share this post


Link to post
Share on other sites

Hi guys, ive done this and if your car wasnt meant to have them then the only way is to retro fit them, the glovebox light parts you can get from ford, they cost around £40 for the parts. When i fiited mine i thought the glovebox one would just plug in but the wires didnt work!

I had the illuminating gear knob which i split to feed the lights. As for the ambient lights above your head you'l need the new light unit, quite expensive but you will have to send a wire to them also.

It can be done as ive done it but its not as easy as plug it in and it works!

Matt

Share this post


Link to post
Share on other sites

I asked Ford at the weekend about getting the lights retrofitted to mine. They basically told me if I didn't have the wiring in place then I should forget the idea as it would be too much hassle to retrofit. If I have the wiring and the correct modules to support, they said around £40.

I'd really like the ambient lights as well.

Share this post


Link to post
Share on other sites

mattyi26, do you have info on where the glovebox one should plug in then so we can see if ours have the wires and whether or not they're live?

Share this post


Link to post
Share on other sites

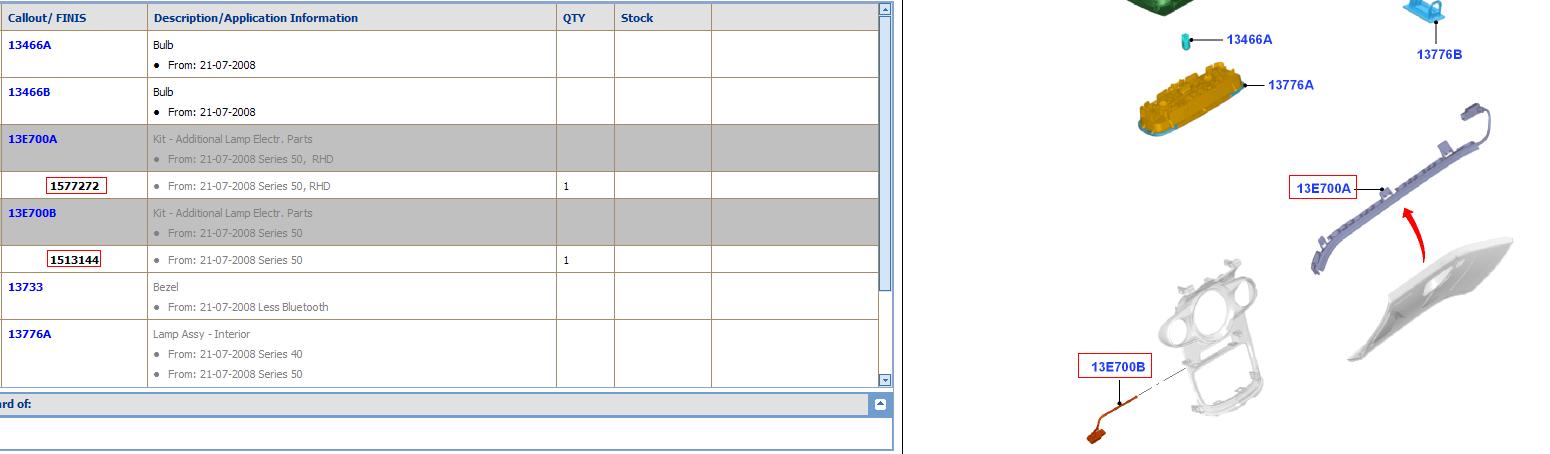

Part number for Right hand drive only... if you need the Left hand drive part number please ask...


Lenny likes this

Share this post


Link to post
Share on other sites

Part number for Right hand drive only... if you need the Left hand drive part number please ask...


Hey Lez,

can you give us the website from which you got this image from?

Lenny likes this

Share this post


Link to post
Share on other sites

Hey Lez,

can you give us the website from which you got this image from?

It's not on a website, it's Ford eCAT - a program containing all the part numbers, diagrams & prices.

Share this post


Link to post
Share on other sites

yes, it`t the Ford eCAT, but it`s not included any diagrams...

Share this post


Link to post
Share on other sites

yes, it`t the Ford eCAT, but it`s not included any diagrams...

Bugger, I can't log in because I'm from the Singapore market? And also because i don't have any login details.

DAMN.

Would really like to buy a few things like the interior ambient lights. And maybe even some trimming like the arm rest for instance or the silver plastics that surround the speedo.

FORD Singapore is horrible in a sense that they would not allow me to bring in a 1.6 fiesta claiming it would, and i quote "damage the focus market"

nitwits.

ANy recommendations other than european-parts to get FORD accessories?

Bests,

Share this post


Link to post
Share on other sites

Behind the glovebox was a wire plugged into where it should go but inspecting it it wasnt a connector just sumwhere ford have left to hide it. Apon testing mine it had no power and i tried to follow the wire but lost it! theres so many.

If you dont want to go to fords then you'l have to split it with your gear knob if you have an illuminating one or your interior lights.

Matt

Share this post


Link to post
Share on other sites

Behind the glovebox was a wire plugged into where it should go but inspecting it it wasnt a connector just sumwhere ford have left to hide it. Apon testing mine it had no power and i tried to follow the wire but lost it! theres so many.

If you dont want to go to fords then you'l have to split it with your gear knob if you have an illuminating one or your interior lights.

Matt

Ford really didn't make it easy to let you do any retrofitting huh. All about costs.

When will they ever take the fiesta seriously??

Share this post


Link to post
Share on other sites

Guys, so if I was to buy the interior dome light from European parts which has 2 tiny orange ambient lights, one general light and 1 map reading light for each seat.

Will it be a plug and play?

Share this post


Link to post
Share on other sites

Guys, so if I was to buy the interior dome light from European parts which has 2 tiny orange ambient lights, one general light and 1 map reading light for each seat.

Will it be a plug and play?

Hi Garzzz. It will all be plug and play but the 2 LED ambient lights. These will need to be wired up to either the lights switch or rear light meaning the ambient lighting will come on with sidelights / headlights. I have wired the lights to my rear lights. It is a pretty simple job. Others I know have wired to the lights swith. This link should help give you and idea. Ambient Light Link

With the glovebox strip, this is something I wish to retrofit, but haven't looked into if its a straight plug and play. Chances are it isn't. I'd be tempted to tap into the ambient light connection at the courtesy light if you go ahead with that.

Share this post


Link to post
Share on other sites

Hi Garzzz. It will all be plug and play but the 2 LED ambient lights. These will need to be wired up to either the lights switch or rear light meaning the ambient lighting will come on with sidelights / headlights. I have wired the lights to my rear lights. It is a pretty simple job. Others I know have wired to the lights swith. This link should help give you and idea. Ambient Light Link

With the glovebox strip, this is something I wish to retrofit, but haven't looked into if its a straight plug and play. Chances are it isn't. I'd be tempted to tap into the ambient light connection at the courtesy light if you go ahead with that.

Hey Thornewell,

its not just the strip at the glovebox but theres another switch which is at the bottom of the centre console, just in front of the gear knob. its much shorter strip.

I was thinking of wiring it up to the courtesy light so every time you unlock the car, the ambient light comes on. but for the 2 tiny LEDS, that'll go to the light switch.

Only worry is every time i turn on the courtesy light in the car for occasions like searching or reading, it'll just turn on the orange stripes as well.

haha. oh, just as well i guess.

Thanks!

Share this post


Link to post
Share on other sites

And wouldnt it be quite a long wire from the interior dome lights to the light switch?

Damnnn

Share this post


Link to post
Share on other sites

its not a plug n play unless its actually fitted when new, you will need to take it off from another connection like above ^^^

Share this post


Link to post
Share on other sites

Guys,

any websites or sellers on eBay to recommend for purchasing Ford parts?

on the sidetrack, how is everyone's new year?

Bests,

Share this post


Link to post
Share on other sites

Guys,

any websites or sellers on eBay to recommend for purchasing Ford parts?

on the sidetrack, how is everyone's new year?

Bests,

Which parts in particular you looking for mate?

Share this post


Link to post
Share on other sites

Mate,

Really looking for interior bits and maybe some minior performance tweaks like air filters and maybe solenoid and leads for spark plugs.

Share this post


Link to post
Share on other sites

Mate,

Really looking for interior bits and maybe some minior performance tweaks like air filters and maybe solenoid and leads for spark plugs.

The only minor thing for performance tweaking is a panel filter (£30 - £40) such as K&N or Pipercross, so try eBay...

What type of interior mods?

Use the search button mate there are lottssss of modding threads. ;)

Share this post


Link to post
Share on other sites

Installed my ambient lighting now :)



For the glovebox & 'cubby hole' (under heating controls) the cabling was already there



Just took the fluffy stuff off, plugged in & clipped on



Glovebox cable was plugged in to a blank socket on the back of the dash


Share this post


Link to post
Share on other sites

Interior light was missing the cabling so I have had it wired in to ignition, comes on when key at stage 2.



Then had to hook it up to IDS and upload a modified file that contained the activation of the ambient lighting feature. This gives you a new option in the stereo menu to turn the lights on/off.




Share this post


Link to post
Share on other sites

Nice one with the images iNath, though I take it the IDS is needed to make the wires live rather than just adding the stereo option to be able to turn them off? So us normal people without access to one can't make use of the wiring even if it is there?

Share this post


Link to post
