Retrofit Power-Fold Mirrors MK7.5 Question.


RO02THO
 Share

Recommended Posts

Hi

I’m looking to retrofit some powerfold mirrors but I have heard you need to check to ensure you have the correct fuses for them to work.


I’ve attached a photo, please could someone let me know if I have the required fuses?




Link to comment
Share on other sites


4 hours ago, RO02THO said:

Hi

I’m looking to retrofit some powerfold mirrors but I have heard you need to check to ensure you have the correct fuses for them to work.


I’ve attached a photo, please could someone let me know if I have the required fuses?




I believe you need two relays on that fuse board.Watch here.



https://www.youtube.com/watch?v=-P_4udZJfq4&feature=youtu.be&t=45s

Link to comment
Share on other sites

5 hours ago, Gazcaz said:

I believe you need two relays on that fuse board.Watch here.



https://www.youtube.com/watch?v=-P_4udZJfq4&feature=youtu.be&t=45s

I saw this video but noticed it was specifically for the MK7 instead of 7.5 so wondered if anything has changed.

Link to comment
Share on other sites

12 hours ago, RO02THO said:

I saw this video but noticed it was specifically for the MK7 instead of 7.5 so wondered if anything has changed.

Hi have a look ive got the 7.5 but mine has power folds and the fuse box is identical to that video.

Link to comment
Share on other sites

1 minute ago, Gazcaz said:

Hi have a look ive got the 7.5 but mine has power folds and the fuse box is identical to that video.

Thanks for checking, It seems I wouldn't be able to do this then.

Link to comment
Share on other sites

1 minute ago, RO02THO said:

Thanks for checking, It seems I wouldn't be able to do this then.

Not if you have not got the loom fitted and two relays but you might be able to retro fit them if you get the parts needed maybe and not sure if a forscan will need doing after.

Link to comment
Share on other sites

10 hours ago, fgservo said:

This is my fuse boximageproxy.php?img=&key=0e662d3074f136c9, only have 1 relay and i fit power folder mirrors.



Most important, power folding mirros use a 10 pin connector, make sure you have it on the door panel.



Caixa fusiveis 2.jpg

I stand corrected thanks.

Link to comment
Share on other sites

13 hours ago, fgservo said:

This is my fuse boximageproxy.php?img=&key=0e662d3074f136c9, only have 1 relay and i fit power folder mirrors.



Most important, power folding mirros use a 10 pin connector, make sure you have it on the door panel.



Caixa fusiveis 2.jpg

Thanks for replying. What model Fiesta (and Year) Do you have?

I do notice you have two relays at the top which I don't, I will remove my door card at some point to check.

Link to comment
Share on other sites

Fiesta Titanium 2016

Relay above is R1, R6, R7 stands for, Ignition, Keyless entry (accessory), Keyless entry (ignition)



https://www.autogenius.info/ford-fiesta-from-2012-fuse-box-diagram-eu-version/



You also have to buy this switch (see pic)




Link to comment
Share on other sites

46 minutes ago, fgservo said:

Fiesta Titanium 2016

Relay above is R1, R6, R7 stands for, Ignition, Keyless entry (accessory), Keyless entry (ignition)



https://www.autogenius.info/ford-fiesta-from-2012-fuse-box-diagram-eu-version/



You also have to buy this switch (see pic)




I have been looking for the 2012+ circuit diagram but could only find 2009-2012. Thanks for that!

Fingers crossed for the 10 wires. 🙂

Link to comment
Share on other sites

On 6/23/2020 at 4:42 PM, fgservo said:

Fiesta Titanium 2016

Relay above is R1, R6, R7 stands for, Ignition, Keyless entry (accessory), Keyless entry (ignition)



https://www.autogenius.info/ford-fiesta-from-2012-fuse-box-diagram-eu-version/



You also have to buy this switch (see pic)




Hi, I have checked the wires today and I can see I have 10 wires. I have installed one folding mirror.

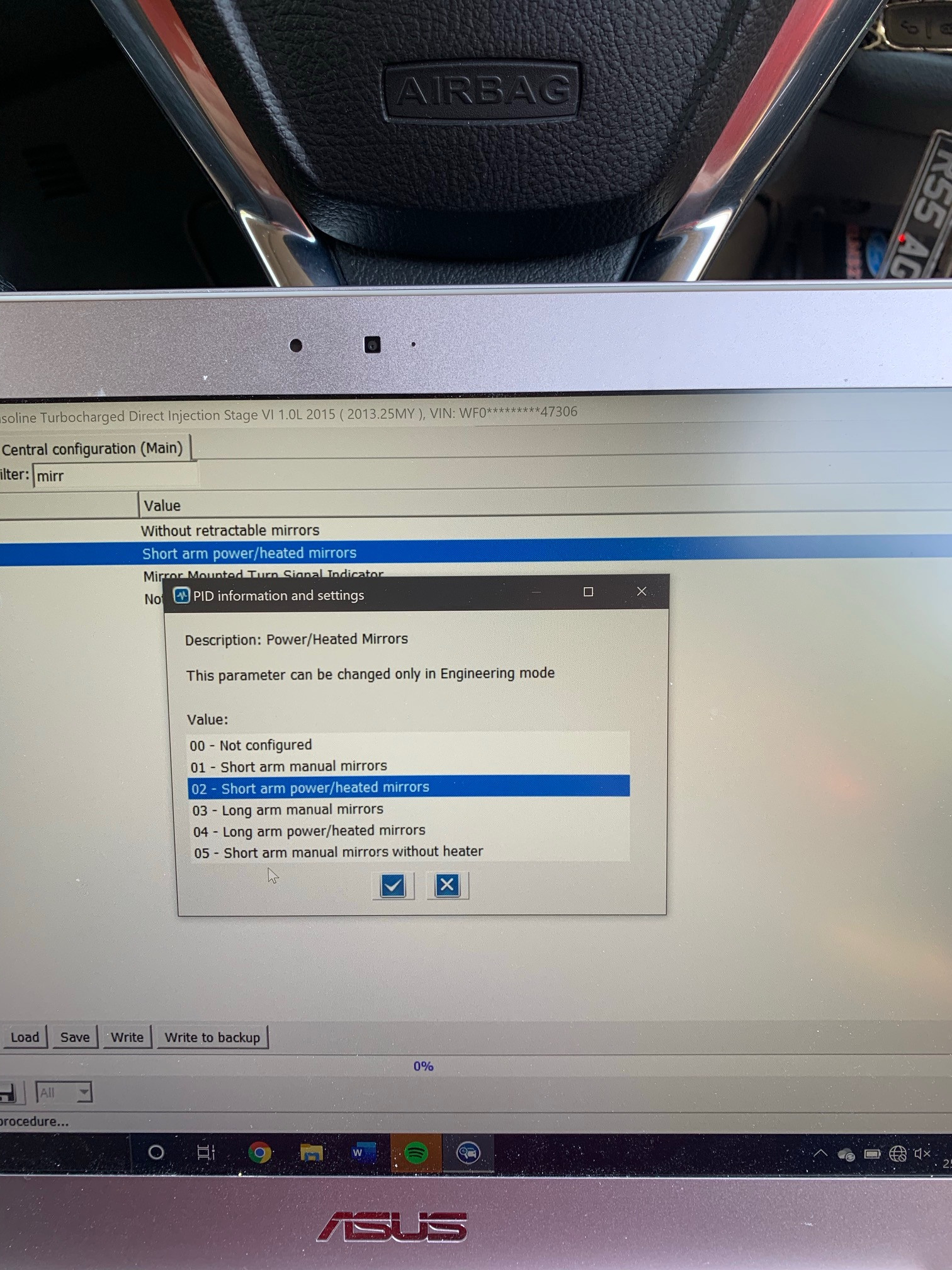

I am still waiting on the switch but I thought I would enable it first in Forscan. I have checked forscan and can see I already have the electric/folding mirror option enabled below. But it doesn't appear under the vehicle settings. Are there any other options which need enabling?

IMG-2025



Link to comment
Share on other sites

57 minutes ago, fgservo said:

No. Leave that as it is.

Is the option above, "without retractable...", change to "with...."



Oh dear haha I wasn’t looking at that at all. I’ve just done it now and it works. Thanks for all your help!


Link to comment
Share on other sites

On 6/25/2020 at 3:52 PM, fgservo said:

No. Leave that as it is.

Is the option above, "without retractable...", change to "with...."



Another quick question, do your puddle lights on the mirrors work?

Link to comment
Share on other sites

Yes, but i take a lot of time to find out, know where to find tutorials.

You will need to activate other option in Forscan.

I post a pic, but is a different language, but you will get there.

Sem Título.jpg

Link to comment
Share on other sites

5 minutes ago, fgservo said:

Yes, but i take a lot of time to find out, know where to find tutorials.

You will need to activate other option in Forscan.

I post a pic, but is a different language, but you will get there.

Sem Título.jpg

Thank you for this. I’ll translate it.

Where do you find guides on this stuff? I have had trouble finding good help.

Link to comment
Share on other sites

Probably side skirts light or something, but it ill be in the same place, just different language.

Forscan foruns, here, or find myself.

Trial and error, just make a backup file, and dont spend to much if you dont have a battery charger, you may have a surprise. The program alert you if battery is low, but still

Link to comment
Share on other sites

7 minutes ago, fgservo said:

Probably side skirts light or something, but it ill be in the same place, just different language.

Forscan foruns, here, or find myself.

Trial and error, just make a backup file, and dont spend to much if you dont have a battery charger, you may have a surprise. The program alert you if battery is low, but still

I have seen that warning once before. Is that bad? My battery is good at the moment as stop/start is working.

Link to comment
Share on other sites

Is not bad, just be carefull, program warn you if battery lvl is 11.84v or 11.89v cant remember.

I use a multimeter just to be sure. I just go for a ride, charge a little and check voltage.



Link to comment
Share on other sites

  • 2 months later...

Hi mate,

I’m hoping my switch arrives tomorrow to get this done on my ST. Where do you go in forscan to adapt the mirrors? I’ve never used it before 🤣. Am I right in saying the laptop isn’t to be connected to the internet while doing it?


Thanks

J

Link to comment
Share on other sites

  • 6 months later...
  • 2 months later...

did you guy figure out about the fuses and relays ? i fitted power folding mirror and activated on forscan however I only have one of the relays on the glove box and only the driver side mirror is working. its a 1.0l 125ps 2013 Fiesta has anyone got both mirros to fold with only the one fuse relay ?

Link to comment
Share on other sites

Hi all,

Today i installed powerfold mirrors to my mk7.5 ecoboost 138bhp 1 litre red and black edition.



I only have one relay in my fuse box.



The mirrors working great on the manual button i also installed like for like.

Iv turned it all on in forscan - with retractable mirrors without memory.

With puddle lights.



However i dont have any autofold options? They have worked a few times opening and closing but wont do it permanently. Anyone know the fix to this?  Btw anyone looking to do it its ***** easy and i will help anybody but i am stuck with the autofold part.

Also i have mk7 08-13 plate powerfold mirrors for sale cheap as these do not fit mk7.5 models as i found out lol.

Link to comment
Share on other sites

  • 10 months later...
On 6/23/2021 at 9:16 PM, Joey26uk said:

Hi all,

Today i installed powerfold mirrors to my mk7.5 ecoboost 138bhp 1 litre red and black edition.



I only have one relay in my fuse box.



The mirrors working great on the manual button i also installed like for like.

Iv turned it all on in forscan - with retractable mirrors without memory.

With puddle lights.



However i dont have any autofold options? They have worked a few times opening and closing but wont do it permanently. Anyone know the fix to this?  Btw anyone looking to do it its ***** easy and i will help anybody but i am stuck with the autofold part.

Also i have mk7 08-13 plate powerfold mirrors for sale cheap as these do not fit mk7.5 models as i found out lol.

Did you get them working? Any advice you have I’m thinking of doing the same. Did you get autofold working? Thanks
