Heres a better picture of where I bolted the earth wire

Just in case any other interested members are curious as to what the full switched power socket wiring looks like-

Just in case any other interested members are curious as to what the full switched power socket wiring looks like-

Cheers Stoney, I was curious actually! :)

it works really well, Stoney makes a good job of making one, not messy at all

it works really well, Stoney makes a good job of making one, not messy at all

Thanks for the positive vote Fella.

Much appreciated. :)

Your welcome stoney :)

red should never be an earth

black (and brown) are often used for earth...

maybe someone is colour blind and perhaps the product was built wrongly

Agreed, red always goes to live.
I never go by connectors added to kit at factory.
A decent selection of crimps /crimper and good wire strippers are essential.
Shrink tubing is also a good idea to stop shorting over connections.

Sent from my SM-G965F using Tapatalk

I cant for the life of me find it, im sure somebody linked me to a device that helps to install (in my case a reverse camera) the "wires" from the camera to the power easily without cutting, splicing etc etc ?



is there such a thing or am i going mad ...





On 6/27/2019 at 7:50 PM, shiwarrior said:

I cant for the life of me find it, im sure somebody linked me to a device that helps to install (in my case a reverse camera) the "wires" from the camera to the power easily without cutting, splicing etc etc ?



is there such a thing or am i going mad ...



anyone able to help ?



Got my new Entertainment system delivered today so getting close to installing 🙂

23 minutes ago, shiwarrior said:

anyone able to help ?



Got my new Entertainment system delivered today so getting close to installing 🙂

Wasnt my guide here no?

Or a piggy back fuse adapter fitted to the reverse light fuse





Hi Lenny

Thanks for that , but no, not a crimping tool, a tool that does it "all in one" to save me a lot of hassle (from a newbie)



Good guide though i'll be using it to do my reverse camera 🙂



Cheers





On 6/26/2019 at 5:09 PM, Botus said:

red should never be an earth

black (and brown) are often used for earth...

maybe someone is colour blind and perhaps the product was built wrongly

On 6/27/2019 at 7:50 PM, shiwarrior said:

I'm sure somebody linked me to a device that helps to install (in my case a reverse camera) the "wires" from the camera to the power easily without cutting, splicing etc etc.

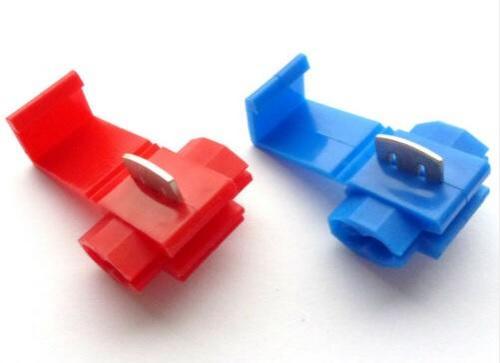

Do you mean these Scotchlok connectors? They just pierce the insulation allowing a feed to be taken off existing wiring. I'm not keen on them myself but understand the speed and convenience.

5 hours ago, mjt said:

Do you mean these Scotchlok connectors? They just pierce the insulation allowing a feed to be taken off existing wiring. I'm not keen on them myself but understand the speed and convenience.



I think that was it !



thank you
