#241 Mikey923

Mikey923

    Feet Under The Table

  • Budding Enthusiast
  • PipPipPipPip
  • 214 posts
  • Name: Mike
  • Ford Model: Fusion 1.4 TDCI
  • Year: 2004
  • Location: Cork

Posted 16 January 2014 - 10:12 AM

MCM <3

Have something to contribute?

Sign in or register to start a topic...

Sign up to FOC Premium Membership To Remove These Ads

#242 Lenny

Lenny

    Retired Moderator

  • FOC Supporters
  • 9,781 posts
  • Name: Leonard
  • Ford Model: Focus ZetecS
  • Year: 2010
  • Location: Ireland
Contributor

Posted 16 January 2014 - 01:10 PM

MCM <3

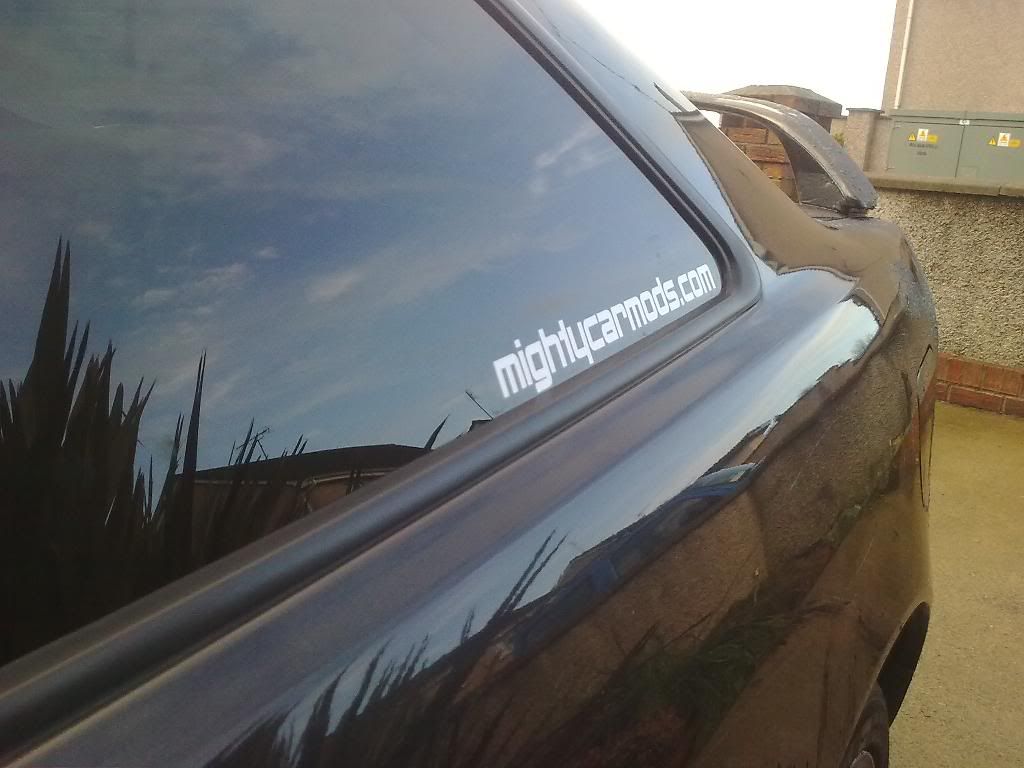

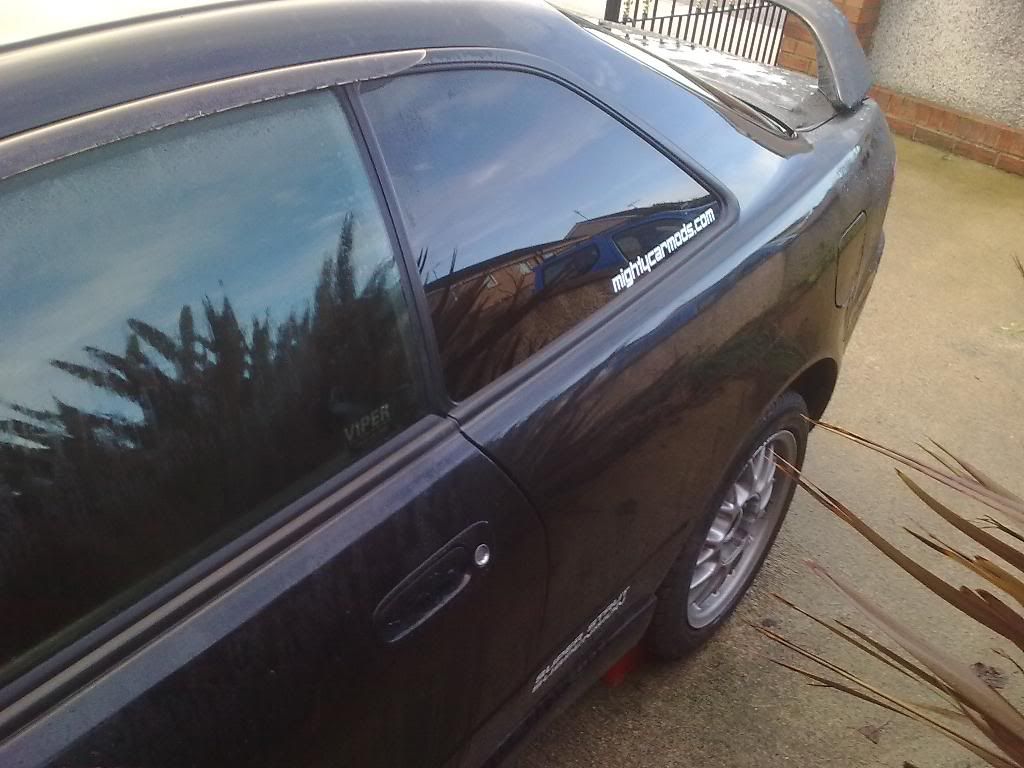

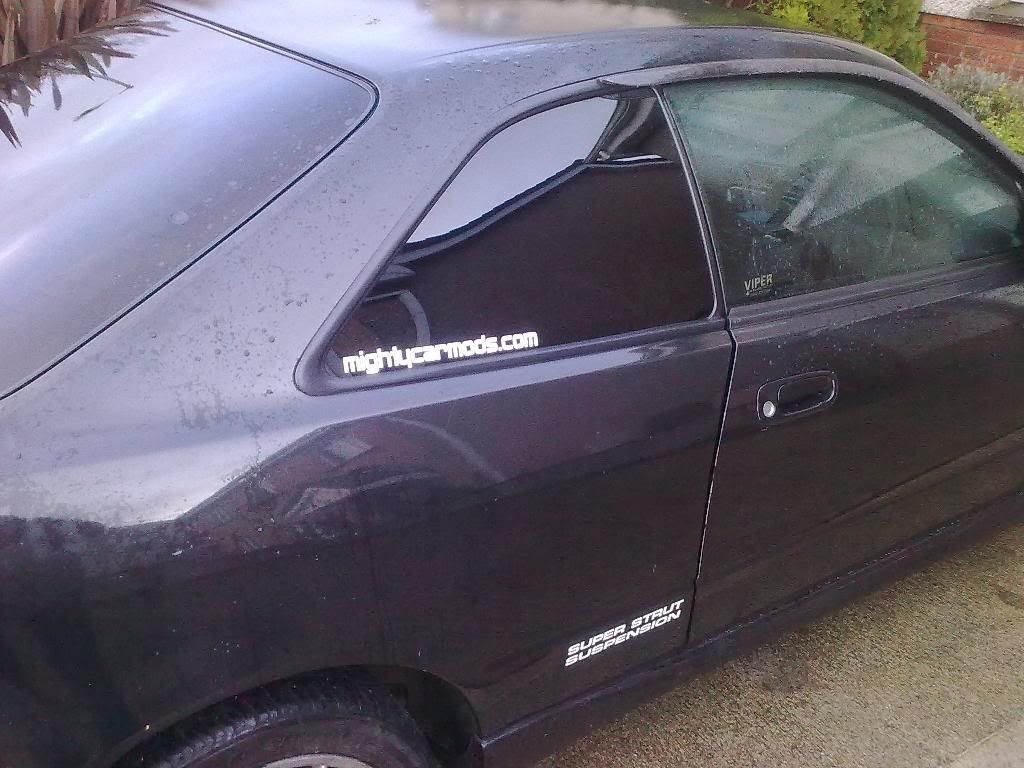

:lol: I've just added 5bhp to the Levin BZR

Image4071_zpsg0ax6xj_edit_1389873572796_





#243 Mikey923

Mikey923

    Feet Under The Table

  • Budding Enthusiast
  • PipPipPipPip
  • 214 posts
  • Name: Mike
  • Ford Model: Fusion 1.4 TDCI
  • Year: 2004
  • Location: Cork

Posted 16 January 2014 - 01:39 PM

Maaad ;)

#244 jeebowhite

jeebowhite

    Resident Loon

  • Super Mod
  • 17,113 posts
  • Name: James
  • Ford Model: Sea Grey Mondeo MKIV 1.8TDCi 140ps Zetec
  • Year: 2007
  • Location: Kent
Contributor

Posted 16 January 2014 - 08:13 PM

I thought it was 5 per sticker?



#245 Mikey923

Mikey923

    Feet Under The Table

  • Budding Enthusiast
  • PipPipPipPip
  • 214 posts
  • Name: Mike
  • Ford Model: Fusion 1.4 TDCI
  • Year: 2004
  • Location: Cork

Posted 16 January 2014 - 09:23 PM

Pffttt, only 5?

ImageUploadedByFord OC1389906789.533889.jpg

#246 Lenny

Lenny

    Retired Moderator

  • FOC Supporters
  • 9,781 posts
  • Name: Leonard
  • Ford Model: Focus ZetecS
  • Year: 2010
  • Location: Ireland
Contributor

Posted 16 January 2014 - 09:31 PM

I thought it was 5 per sticker?


:lol: to be honest i havent took it for a test drive since fitting mate,
Could be 5bh per sticker, good job its one one each side or the car would be pulling to one side caused by single sided +5bhp torque steer ;)


Pffttt, only 5? attachicon.gifImageUploadedByFord OC1389906789.533889.jpg

:lol:

#247 jeebowhite

jeebowhite

    Resident Loon

  • Super Mod
  • 17,113 posts
  • Name: James
  • Ford Model: Sea Grey Mondeo MKIV 1.8TDCi 140ps Zetec
  • Year: 2007
  • Location: Kent
Contributor

Posted 16 January 2014 - 09:39 PM

lol... nice!



#248 VickiW

VickiW

    Too much time on the boards

  • True Ford Enthusiast
  • PipPipPipPip
  • 808 posts
  • Name: Victoria
  • Ford Model: focus st wannabe!!!
  • Year: 2010
  • Location: Ireland

Posted 16 January 2014 - 11:29 PM

29 next week & he's out in the rain with all my towels & hello kitty hairdryer playing with stickers!! !

#249 Stoney871

Stoney871

    Resident Peacekeeper

  • Super Mod
  • 15,285 posts
  • Name: Clive
  • Ford Model: Focus mk2 1.8 TDCI Sport
  • Year: 2007
  • Location: Devon
Contributor

Posted 16 January 2014 - 11:56 PM

29 next week & he's out in the rain with all my towels & hello kitty hairdryer playing with stickers!! !


That's dedication for you :D

#250 Focus-Jonny

Focus-Jonny

    Heresss Jonny!!!!!

  • Budding Enthusiast
  • PipPipPipPip
  • 336 posts
  • Name: Jonathan
  • Ford Model: Ford Focus Mk2.5 Zetec S 1.6 Ti-vct
  • Year: 2010
  • Location: Antrim

Posted 17 January 2014 - 12:02 AM

29 next week & he's out in the rain with all my towels & hello kitty hairdryer playing with stickers!! !


Some old habits just "Stick" bahaha ;)

#251 Lenny

Lenny

    Retired Moderator

  • FOC Supporters
  • 9,781 posts
  • Name: Leonard
  • Ford Model: Focus ZetecS
  • Year: 2010
  • Location: Ireland
Contributor

Posted 17 January 2014 - 05:42 AM

lol... nice!

was thinking of purchasing this one for the rear :D

http://www.ebay.co.u...=item3a7b295d65



29 next week & he's out in the rain with all my towels & hello kitty hairdryer playing with stickers!! !

Stop reminding me im almost in the same age catagory as you now... :unsure:

this time 12 years ago i was out in all sorts of weather with a hot ride aswell,

now its the cars turn luv :lol:

That's dedication for you :D

+1

Hardcore dedication since 2009 its only rain.

Some old habits just "Stick" bahaha ;)

:P



#252 Stoney871

Stoney871

    Resident Peacekeeper

  • Super Mod
  • 15,285 posts
  • Name: Clive
  • Ford Model: Focus mk2 1.8 TDCI Sport
  • Year: 2007
  • Location: Devon
Contributor

Posted 17 January 2014 - 07:31 AM

I always say there's no such thing as bad weather, just an inappropriate choice of clothing.

#253 jeebowhite

jeebowhite

    Resident Loon

  • Super Mod
  • 17,113 posts
  • Name: James
  • Ford Model: Sea Grey Mondeo MKIV 1.8TDCi 140ps Zetec
  • Year: 2007
  • Location: Kent
Contributor

Posted 17 January 2014 - 09:52 AM

loving the sticker Lenny ;) I couldn't possibly say I agree or disagree, we just have to take your self judgement ;)



#254 VickiW

VickiW

    Too much time on the boards

  • True Ford Enthusiast
  • PipPipPipPip
  • 808 posts
  • Name: Victoria
  • Ford Model: focus st wannabe!!!
  • Year: 2010
  • Location: Ireland

Posted 17 January 2014 - 06:41 PM

[quote name="Lenny" post="322694" timestamp="1389936730"]was thinking of purchasing this one for the rear :D
http://www.ebay.co.u...=item3a7b295d65


Stop reminding me im almost in the same age catagory as you now... :unsure:
this time 12 years ago i was out in all sorts of weather with a hot ride aswell,
now its the cars turn luv :lol:

+1
Hardcore dedication since 2009 its only rain.

:P[/quote

Pmsl. ..hmmm yeah

#255 Lenny

Lenny

    Retired Moderator

  • FOC Supporters
  • 9,781 posts
  • Name: Leonard
  • Ford Model: Focus ZetecS
  • Year: 2010
  • Location: Ireland
Contributor

Posted 19 January 2014 - 09:40 PM

Update:

PLEASE NOTE: THE DIRT VISIBLE IN THE OIL TRAY ON THE IMAGES BELOW, IS NOT CONTAMINATION IN THE OIL, THE DIRT IS AN ACCUMULATION OF LEAVES, GRIT AND STONES THAT HAVE BEEN BLOWN AROUND THE YARD. THE DIRT IS NOT METAL FROM THE GEARBOX :lol:

After receiving the gearbox magnetic sump plug during the week,
And having purchased 2ltrs of 75W90 transmission fluid a few weeks back,
The last thing I was waiting on was a dry day,

IMG_20140103_130629_zpsqw3czdd_edit_1388


Today was cold but dry,
So I went out, removed the induction box in order to gain access to the top of the gearbox,

IMG_20140119_184146_zpssfrwxfz_edit_1390

Prior to going near the drain plug,
I made sure I had a bolt open to allow me to fill the sump,
Nothing worse than draining the box then to find I can't open the top to fill it again :lol: that would be a disaster ;)

Anyways, I finally got one bolt that allowed filling of the box after trying a few:

See the black Allen head

IMG_20140119_184157_zpsbbergbc_edit_1390

I unscrewed it completely then turned it in half a rotation to prevent dirt entering while I began to work on the drain side of things.

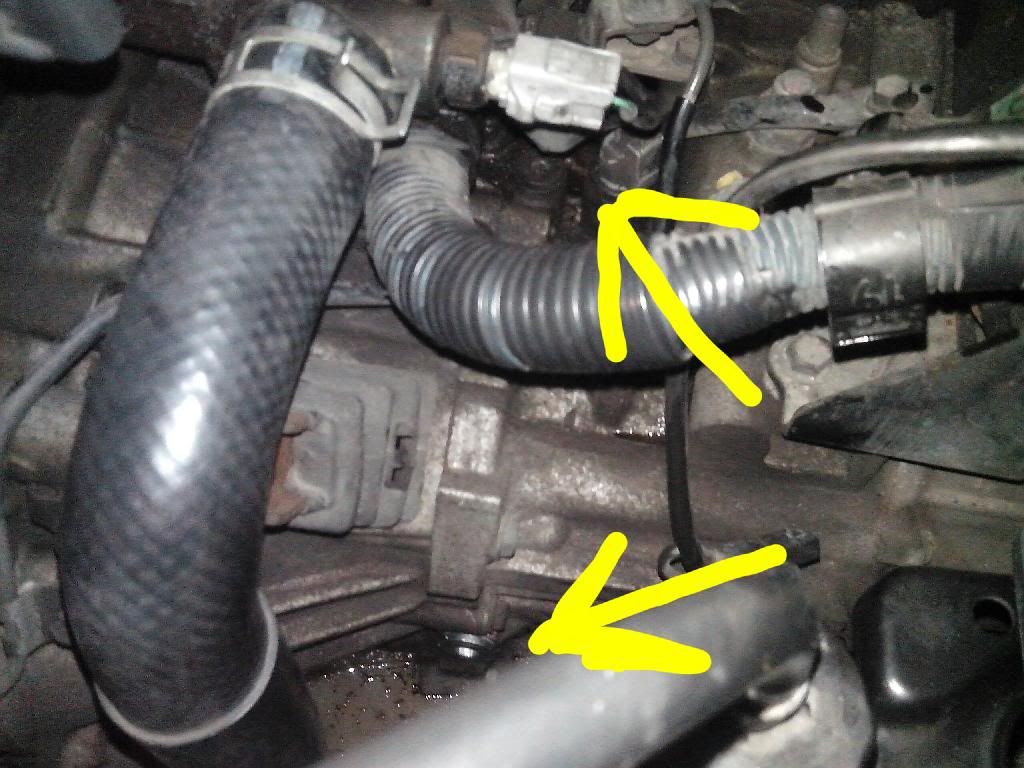

Here is the filler and the sump

IMG_20140119_184221_zpsgzuwjmg_edit_1390

I got under the car and removed part of the under tray to gain access to the sump,

The guys on the AE111 forums say the gearbox takes 1.9ltrs of fluid that's how I knew to purchase two bottles of fluid,
I used Vicki's cooking measuring pots to remove 100ml from one of the bottles leaving 1900ml perfect for filling the box,

So when I opened the sump drain I was expecting to catch around 1.9ltrs of dirty fluid.

To my absolute shock :o

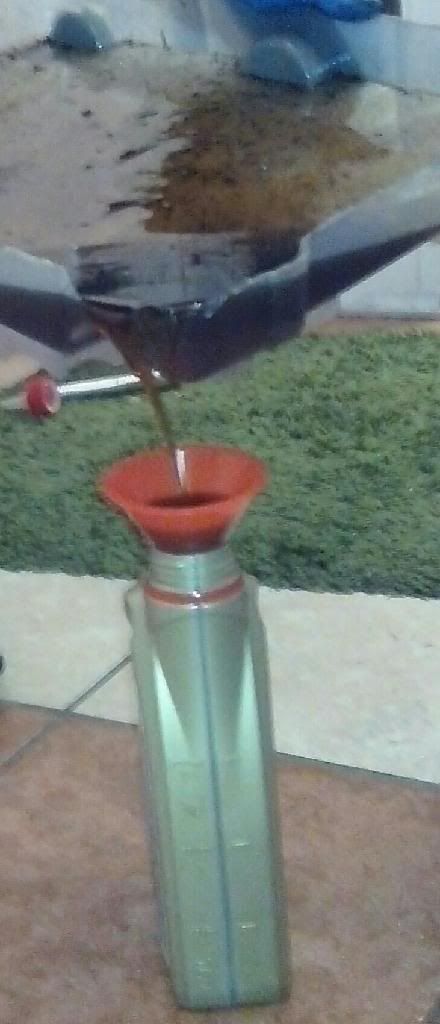

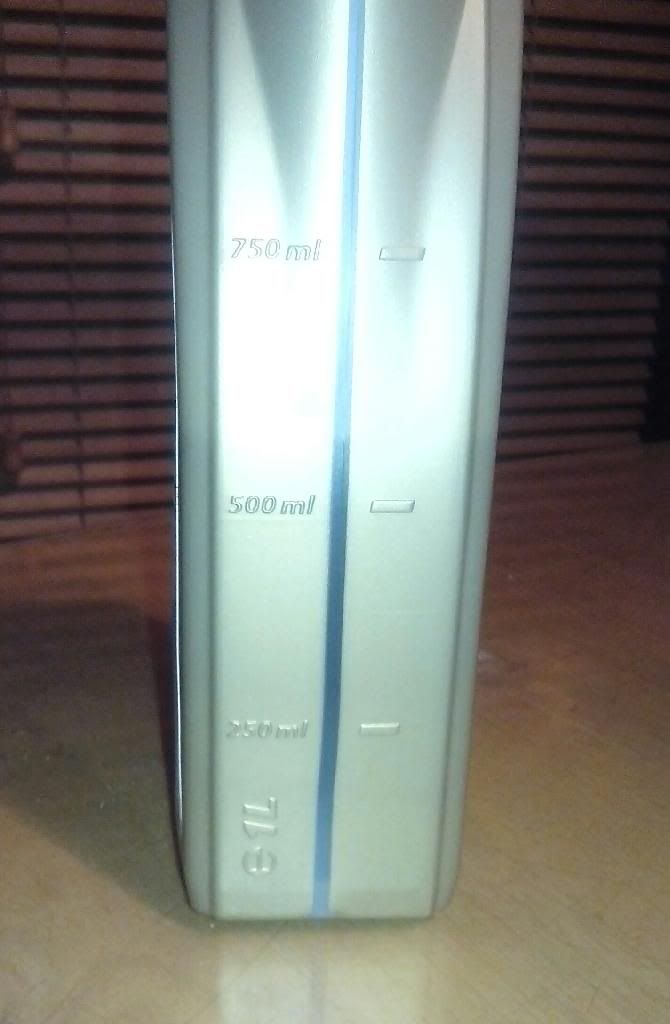

A little over 500ml of fluid drained from the 6 speed gearbox and LSD sump.

IMG_20140119_182055_zpszqsqn2v_edit_1390

IMG_20140119_182137_zpsl7vr9wr_edit_1390

IMG_20140120_050945_zps77csdgk_edit_1390

I've fitted the magnetic sump plug,

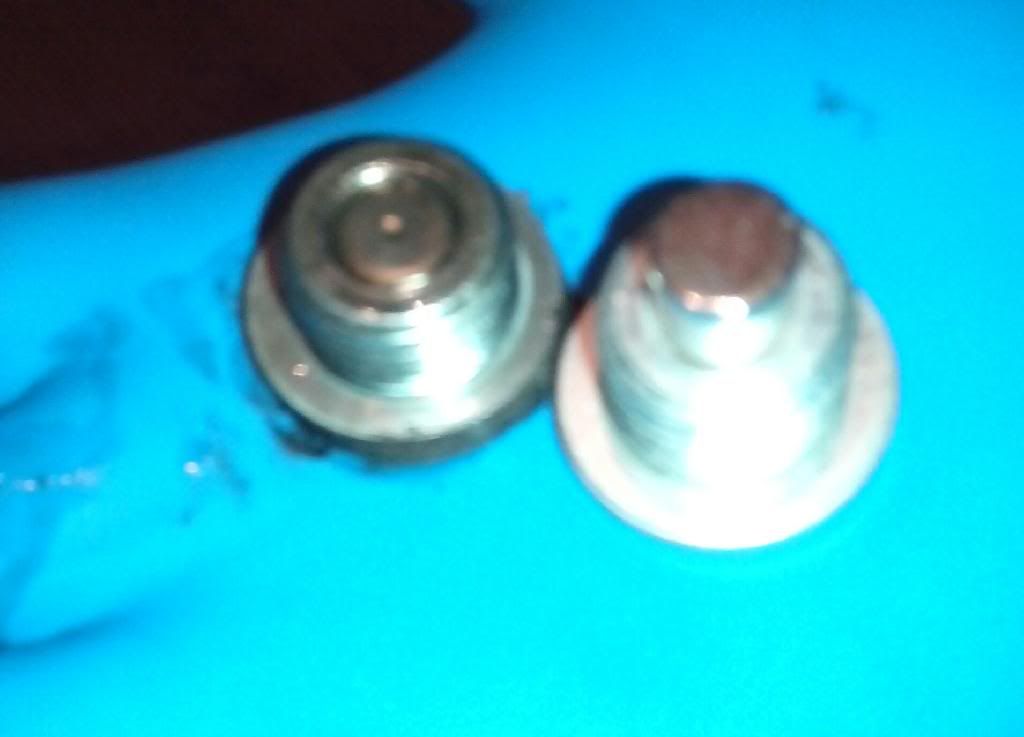

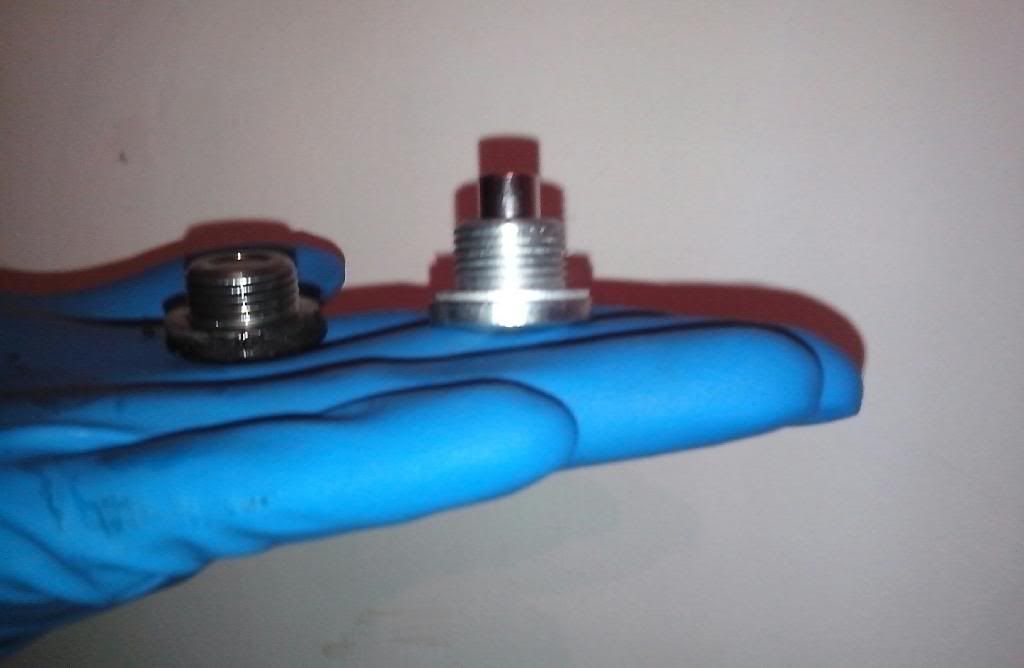

Here it is compared to the standard gearbox sump plug

IMG_20140119_172716_zps0wy15sh_edit_1390

IMG_20140119_172803_zps49xbs1y_edit_1390


I then filled the box with approx. 1.9ltrs of 75W90
I've run it up and down the driveway to get the gears going,
Selecting gear feels smoother so I can only imagine driving will have improved too,

To explain the low fluid level in the sump,
Nicky reckons they swapped out a drive shaft but never topped up the gearbox afterwards,
This would explain the low fluid level because the driveshafts sit a bit above the gearbox sumps lowest point.
Still shocking to have been 1400ml below standard operating level,

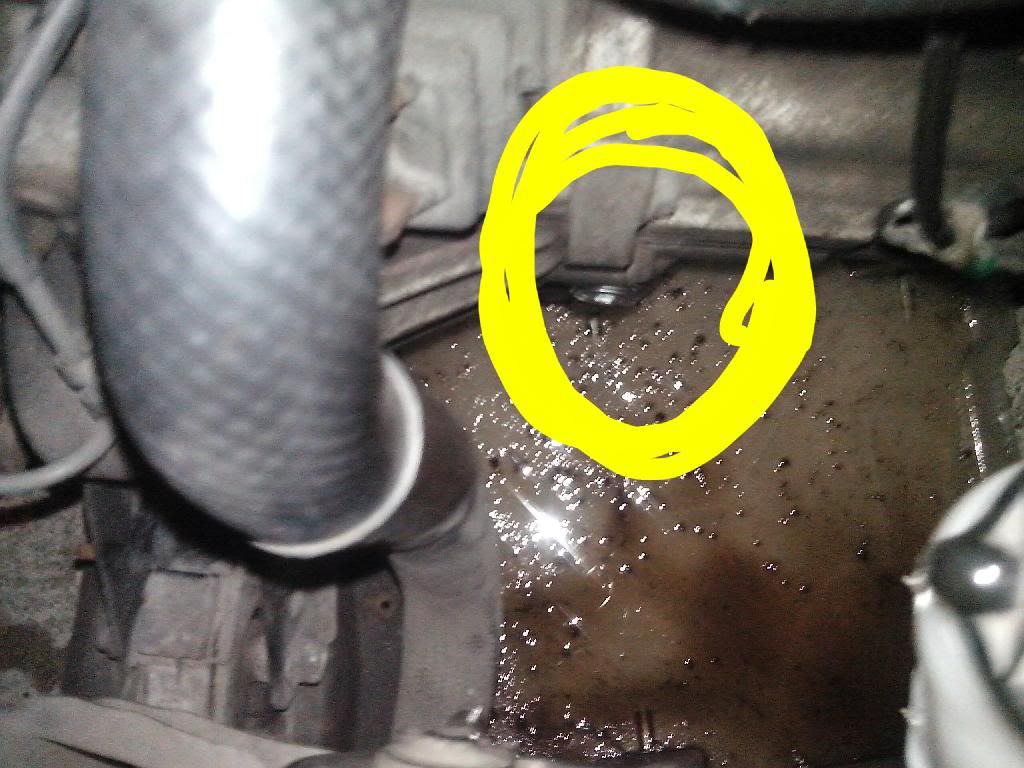

Thankfully the magnetic sump plug fits a treat and will catch any fragments here it is in place:

IMG_20140119_184210_zpsdbw6qxa_edit_1390

Job done :)
All fluids now changed with the exception of brake fluid,
Its recently had discs and pads changed so I'm not going to touch the brake fluid,

Only other consumable it has remaining is the air-conditioning gas recharge and a fuel filter,
Comma manufacture a kit for doing this and its available in Halfords, I plan to give it a try in March/April

Regarding the fuel filter,
I've got some fuel system cleaning additive in the tank at present, I'm waiting for that tank to be used up thus flushing the dirt from the fuel tank and pump in to the filter where it will be trapped prior to me changing it.
